6.4 CDSx pin assignment

6.4.1 Overview of plug connections

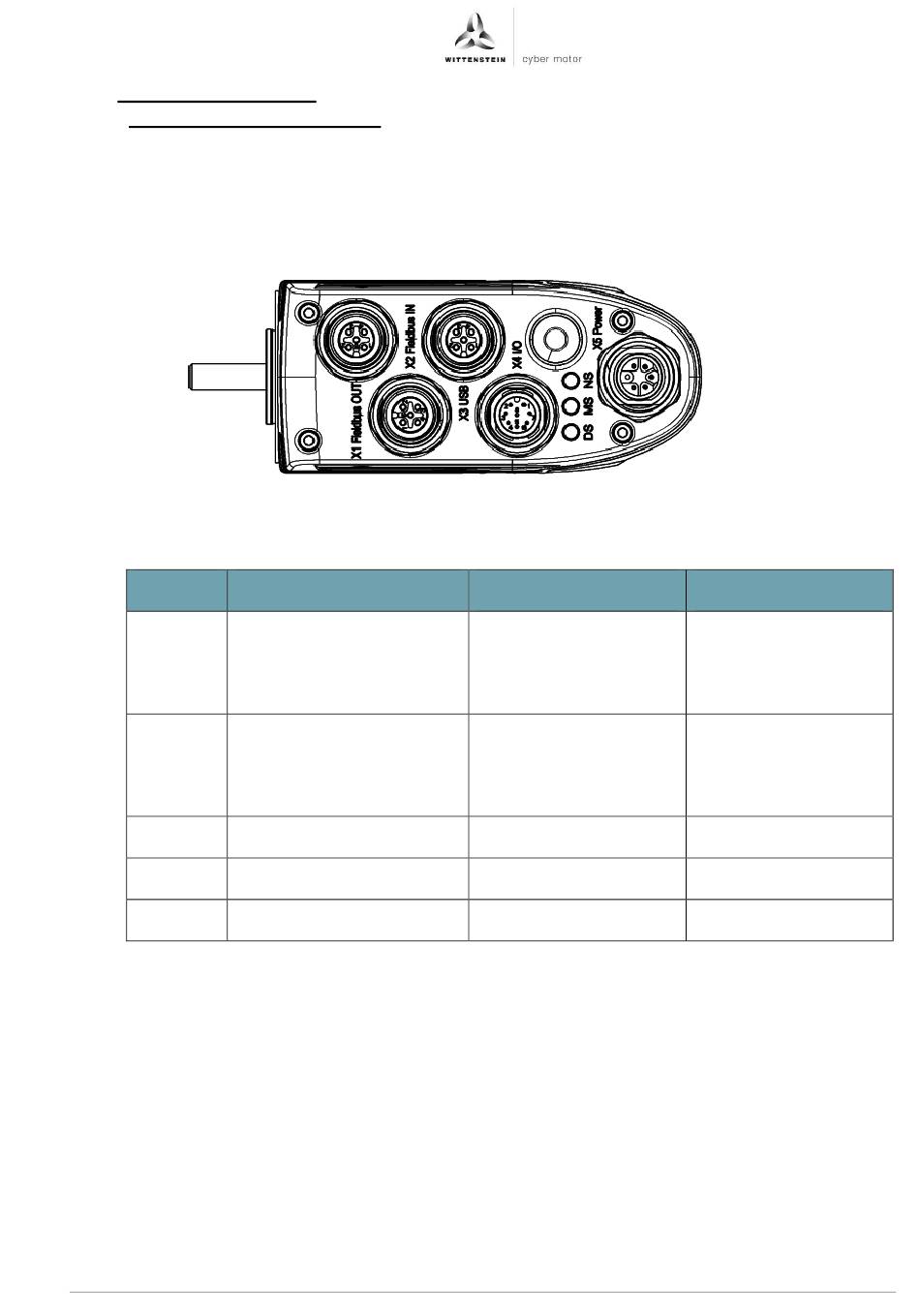

The following illustration shows the arrangement of the plug connections with associated label
on the drive system:
No.
Function
X1
Fieldbus interface
Output
X2
Input fieldbus interface
X3
USB diagnostic interface
X4
Digital inputs/outputs
X5
Power supply
Revision: 01
Connector type
on the device
CAN: M12 5-pin,
female, A-coded
Ethernet-based:
M12 4-pin, female,
D-coded
CAN: M12 5-pin,
male, A-coded
Ethernet-based:
M12 4-pin, female,
D-coded
M12 4-pin, female,
A-coded
M12 8-pin, female,
A-coded
M12 6-pin, male,
M-power
Doc. no.: 5022-D056658
Operating manual
Connector type
on the cable
CAN: M12 5-pin,
male, A-coded
Ethernet-based:
M12 4-pin, male,
D-coded
CAN: M12 5-pin,
female, A-coded
Ethernet-based:
M12 4-pin, male,
D-coded
M12 4-pin, male,
A-coded
M12 8-pin, male,
A-coded
M12 6-pin,
female, M-power
Table 6: Overview of plug connections
