Operating manual

3 Description of the cyber

3.1 General information

All drive systems consist of a brushless, electrical machine with an integrated servo drive.
The drive systems of the CDSL series (linear systems) consist of a drive system with an
integrated threaded spindle and bearing:
-
The rotation of the drive system is transformed into a linear movement of the tappet via the
threaded spindle. Ball screws are used as threaded spindles.
The drive system can be optionally equipped with a holding brake. The holding brake is not a
safety brake.

3.2 Code

Hardware:
en-12
®

dynamic system

A
B
C
D
E
F
G
Doc. no.: 5022-D056658
®
cyber
dynamic system
Designation
Power connector
Motor housing
Orientation hole
Shaft pinion / thrust tube
Motor flange (output side)
Fastening screw thread
Name plate

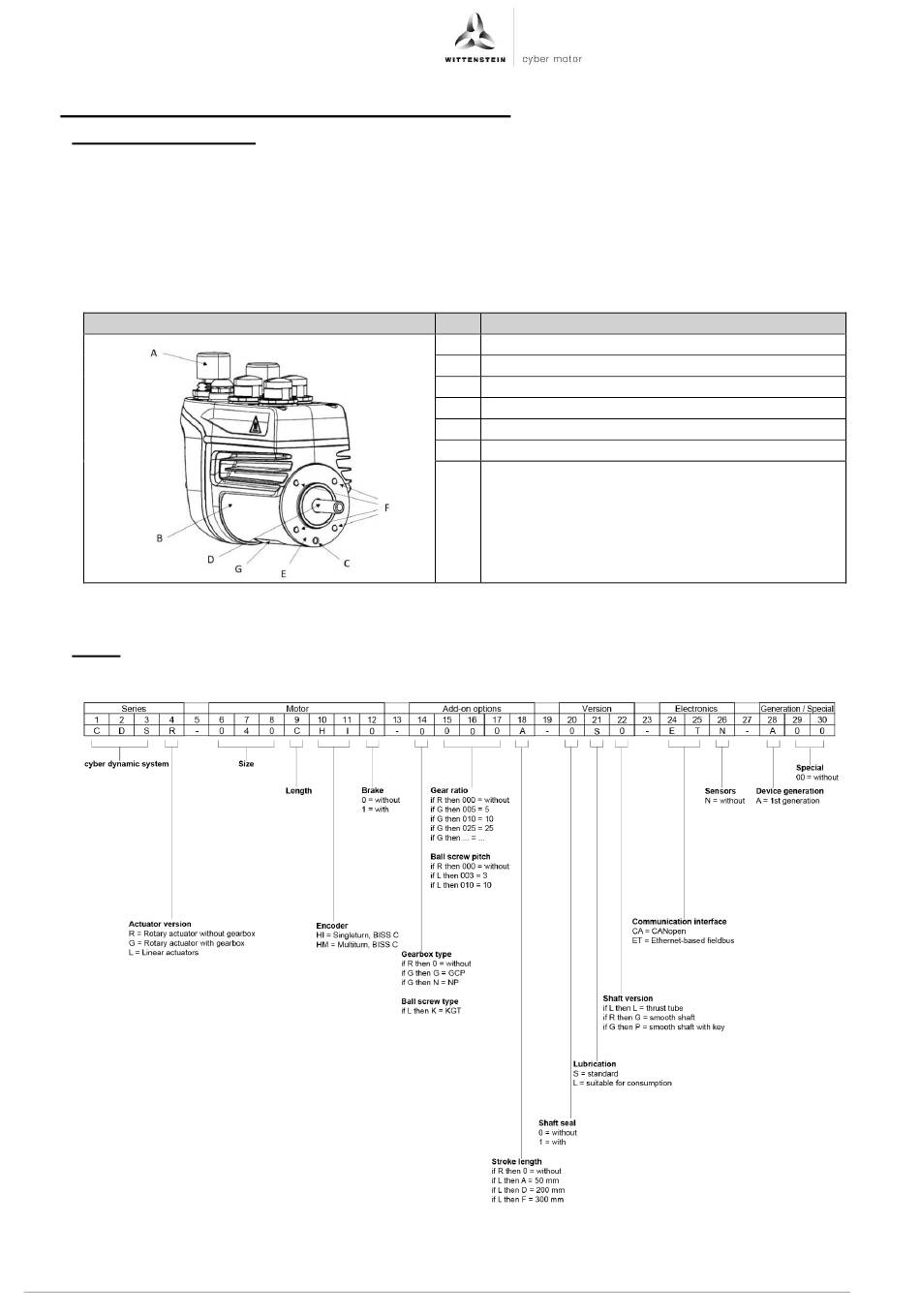

Table 1: CDSR overview
Figure 3.1: Hardware code
Revision: 01
