RS485 Group (The group will be hidden, if the relay function is not to be specify )
E-01
rs485
Device
number of
the
meter.
INDEX Step
group
adres
001
baud
prity
NstB2
NstB2
even
20 / 28
aOlmt :Analog Output High Limit
E-02
Baud rate

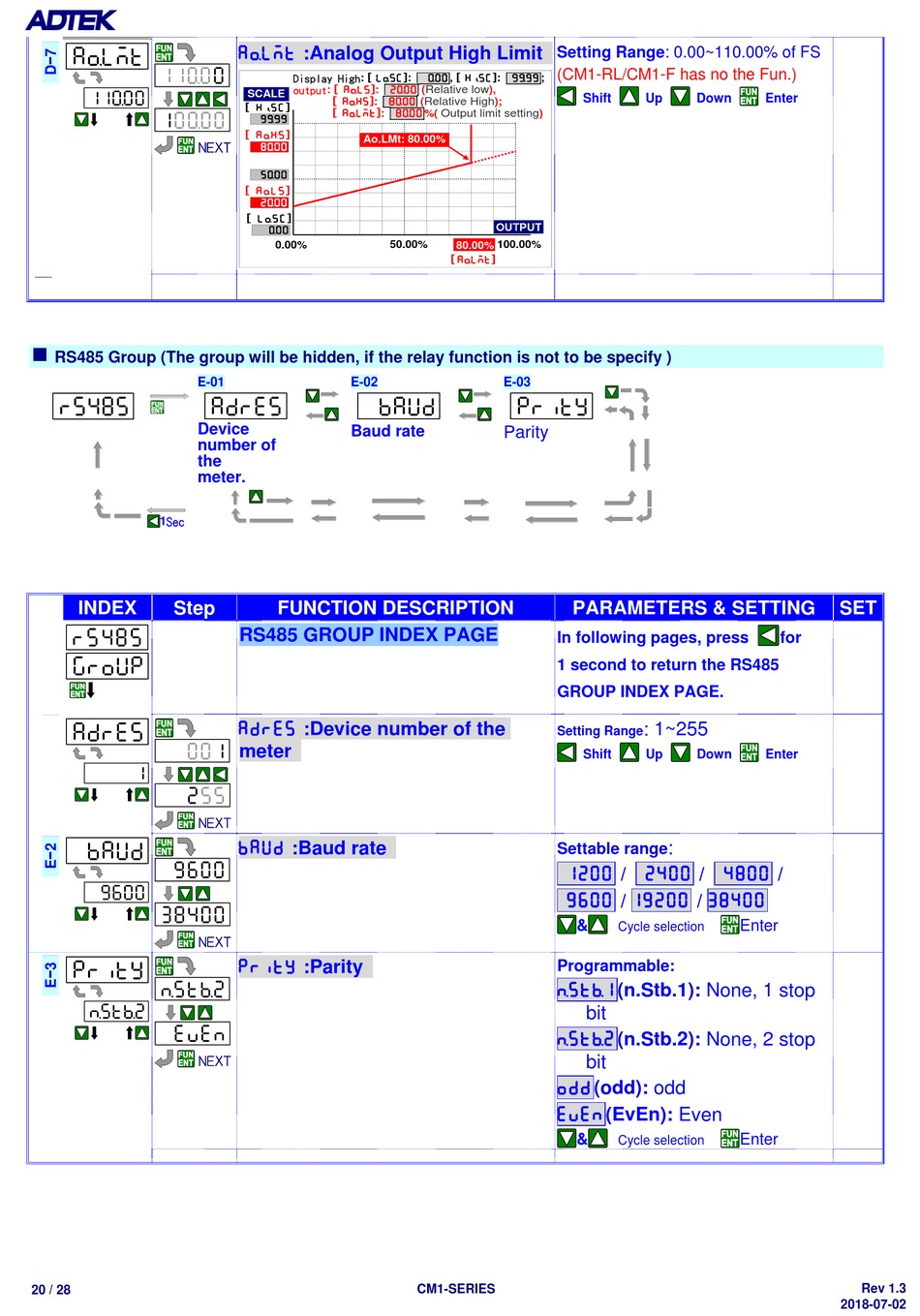

FUNCTION DESCRIPTION
RS485 GROUP INDEX PAGE
adres :Device number of the
meter
baud :Baud rate
prity :Parity
Setting Range: 0.00~110.00% of FS
(CM1-RL/CM1-F has no the Fun.)
Shift
E-03
Parity
PARAMETERS & SETTING
In following pages, press
1 second to return the RS485
GROUP INDEX PAGE.
Setting Range
Shift
Settable range
1200 / 2400 / 4800 /
9600 / 19200 / 38400
&
Programmable:
NstB1(n.Stb.1): None, 1 stop
bit
NstB2(n.Stb.2): None, 2 stop
bit
odd(odd): odd
even(EvEn): Even
&
CM1-SERIES
Up Down Enter
for
: 1~255
Up Down Enter
:
Enter
Cycle selection
Enter
Cycle selection
SET
