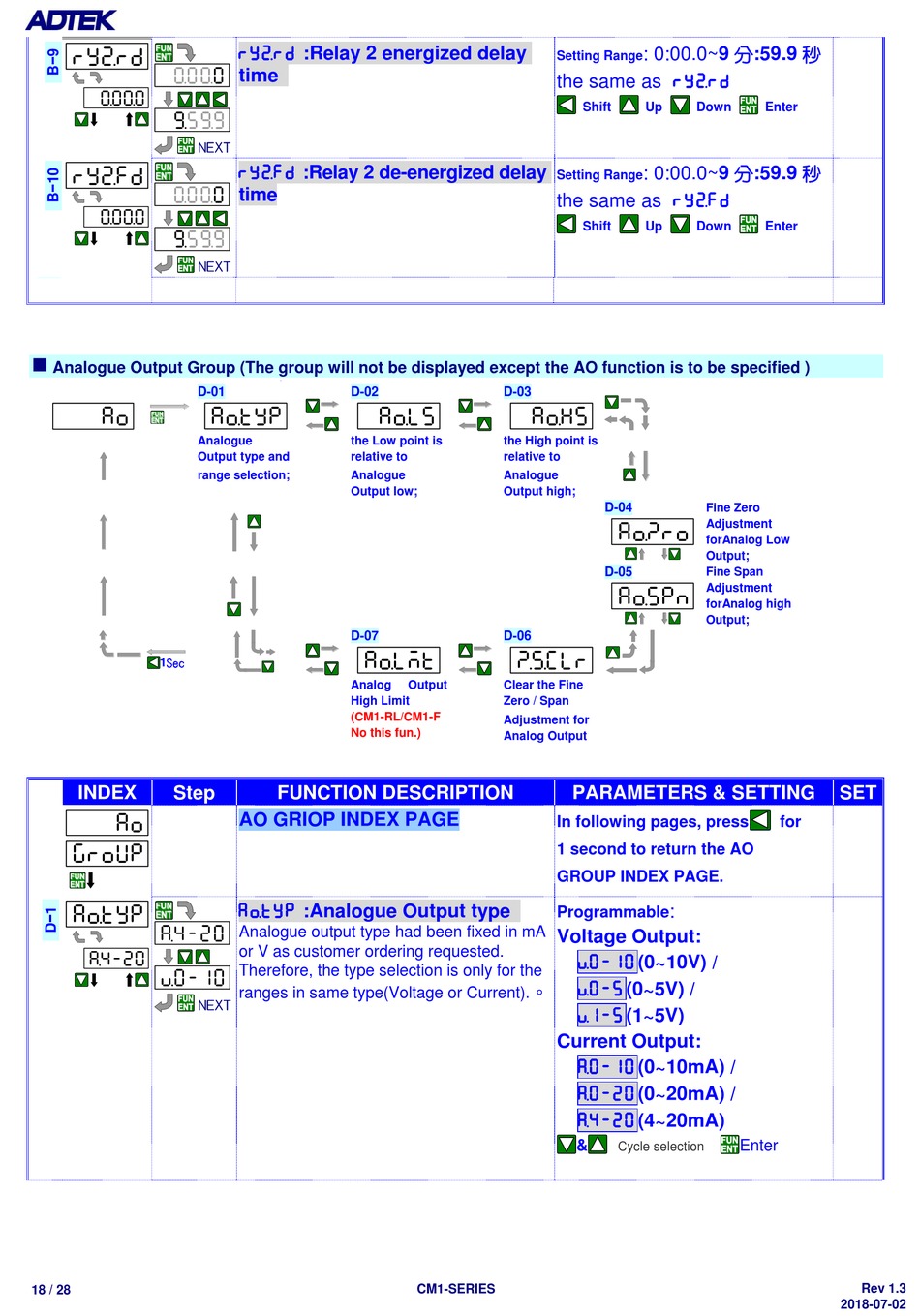

ADTEK CM1 Series User Manual page 18

ry@rd
ry@fd

Analogue Output Group (The group will not be displayed except the AO function is to be specified )
D-01
ao
Analogue
Output type and
range selection;
INDEX Step
V0-10
18 / 28
ry@rd :Relay 2 energized delay
time
ry@fd :Relay 2 de-energized delay
time
D-02
the Low point is
relative to
Analogue
Output low;
D-07
Analog Output
High Limit
(CM1-RL/CM1-F
No this fun.)
FUNCTION DESCRIPTION
AO GRIOP INDEX PAGE
aOtyp :Analogue Output type
Analogue output type had been fixed in mA
or V as customer ordering requested.
Therefore, the type selection is only for the
ranges in same type(Voltage or Current).
Setting Range
the same as ry@rd
Shift
Setting Range
the same as ry@fd
Shift
D-03
the High point is
relative to
Analogue
Output high;
D-06
Clear the Fine
Zero / Span
Adjustment for
Analog Output
PARAMETERS & SETTING
In following pages, press
1 second to return the AO
GROUP INDEX PAGE.
Programmable
Voltage Output:
V0-10(0~10V) /
V0-5(0~5V) /
。
V1-5(1~5V)
Current Output:
A0-10(0~10mA) /
A0-20(0~20mA) /
A4-20(4~20mA)
&
CM1-SERIES
: 0:00.0~9 分:59.9 秒
Up Down Enter
: 0:00.0~9 分:59.9 秒
Up Down Enter
D-04 Fine Zero
Adjustment
forAnalog Low
Output;
D-05 Fine Span
Adjustment
forAnalog high
Output;
:
Enter
Cycle selection
SET
for
Rev 1.3
2018-07-02
