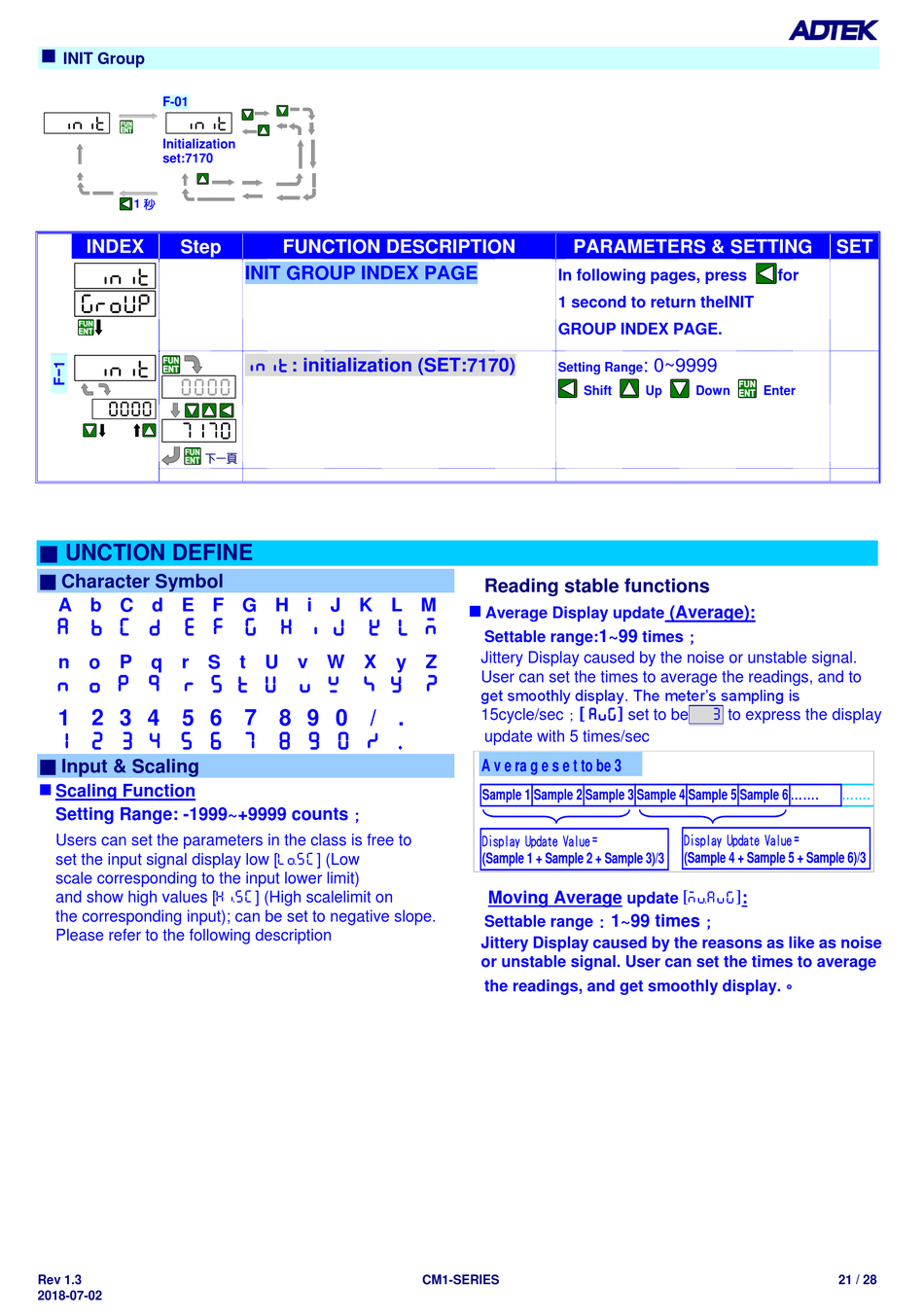

ADTEK CM1 Series User Manual page 21


INIT Group
F-01
Initialization
set:7170
INDEX Step
init
group
init
UNCTION DEFINE
■
■
Character Symbol
A b C d E F G H i J K L M
a b c d e f g h i j k l m
n o P q r S t U v W X y Z
n o p q r s t u v w x y z
1 2 3 4 5 6 7 8 9 0 / .
1 2 3 4 5 6 7 8 9 0 / .
■ Input & Scaling

Scaling Function
Setting Range: -1999~+9999 counts；
Users can set the parameters in the class is free to
set the input signal display low [lOsc] (Low
scale corresponding to the input lower limit)
and show high values [hIsc] (High scalelimit on
the corresponding input); can be set to negative slope.
Please refer to the following description
Rev 1.3
2018-07-02
FUNCTION DESCRIPTION
INIT GROUP INDEX PAGE
init: initialization (SET:7170)
PARAMETERS & SETTING
In following pages, press
1 second to return theINIT
GROUP INDEX PAGE.
Setting Range
Shift
Reading stable functions

Average Display update
Settable range:
Jittery Display caused by the noise or unstable signal.
User can set the times to average the readings, and to
get smoothly display. The meter's sampling is
15cycle/sec；[ avg] set to be
update with 5 times/sec
Moving Average
：1~99 times；
Settable range
Jittery Display caused by the reasons as like as noise
or unstable signal. User can set the times to average
the readings, and get smoothly display.。
CM1-SERIES
: 0~9999
Up Down Enter
(Average):
；
1~99
times
3 to express the display
update [mVavg]
:
SET
for
21 / 28
