Kit Operation
When the installation completes, click Finish on the ADS1271EVM installer window. You may be prompted
to restart your computer.
When installation is complete, attach a USB cable from your PC to the MMB0. Supply power to J14 on the
MMB0, following the silkscreen markings or schematic; this will supply the ADS1271EVM power through
the J3 connector on the ADS1271EVM.
The software should automatically find the ADS1271EVM, and a screen similar to the one in
should appear.
6.3 Program Description
Once the ADS1271EVM-PDK software (described in
with the ADS1271 can begin.
6.3.1 Basic Usage
When the program runs, it checks to see whether an MMB0 is connected. If it is, the program downloads
the firmware to it, and runs; otherwise, it shows a dialog box telling you that it cannot find an MMB0. If you
see this, make sure the MMB0 is connected and powered on, correct this if necessary, and click Retry. If
you cannot fix the problem, click Cancel to quit.
10 ADS1271EVM & ADS1271EVM-PDK

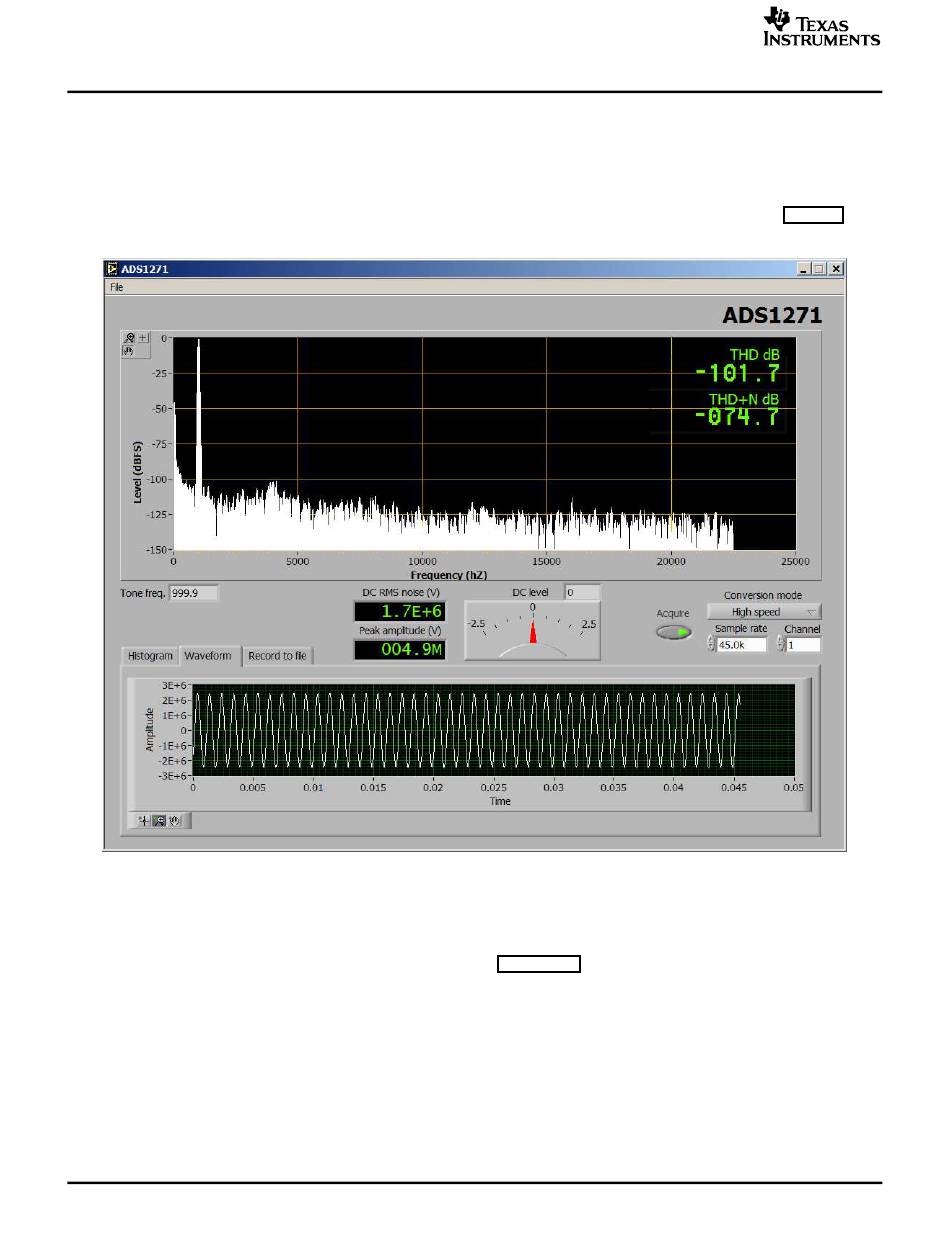

Figure 3. Default Software Screen
Section 6.2) is installed, evaluation and development
