IN1404 application diagram

IN1404 rear panel connectors

Inputs 1-2
S-VIDEO:
(1) 4-Pin mini DIN
connector
COMPOSITE VIDEO:
(1) BNC connector
STEREO AUDIO:
(2) RCA female for Left
and Right Audio
6

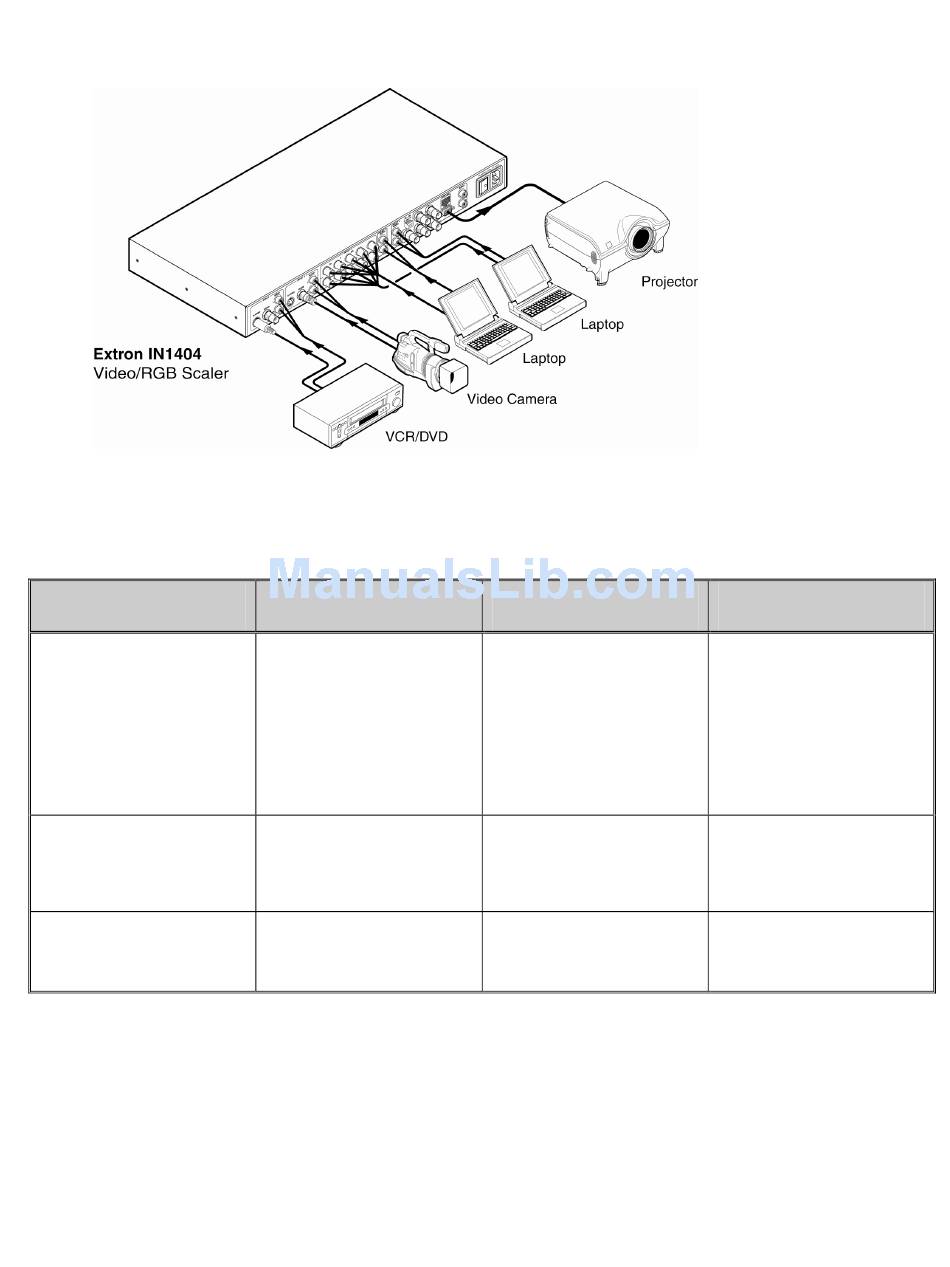

Figure 1. — IN1404 application diagram
Inputs 3-4
RGBHV / CrYCb:
5 BNC connectors for
universal inputs:
composite, S-video,
component, progressive
component, RGBHV,
RGBS, RGsB and RGB
passive.
STEREO AUDIO:
(2) RCA female for left
and right audio
IN1404 User's Manual
Output
VGA:
15-Pin HD female
connector with standard
VGA pin-outs
RGBHV:
(5) BNC Connectors—
output format selectable:
RGBHV / RGBS / RGsB
STEREO AUDIO:
(2) RCA female for left
and right audio
Other
RS-232:
Phoenix connector—
Pin 1: TX, Pin 2: Ground,
Pin 3: RX
POWER:
Universal Power—
90 - 260 VAC, 47 - 63 Hz
