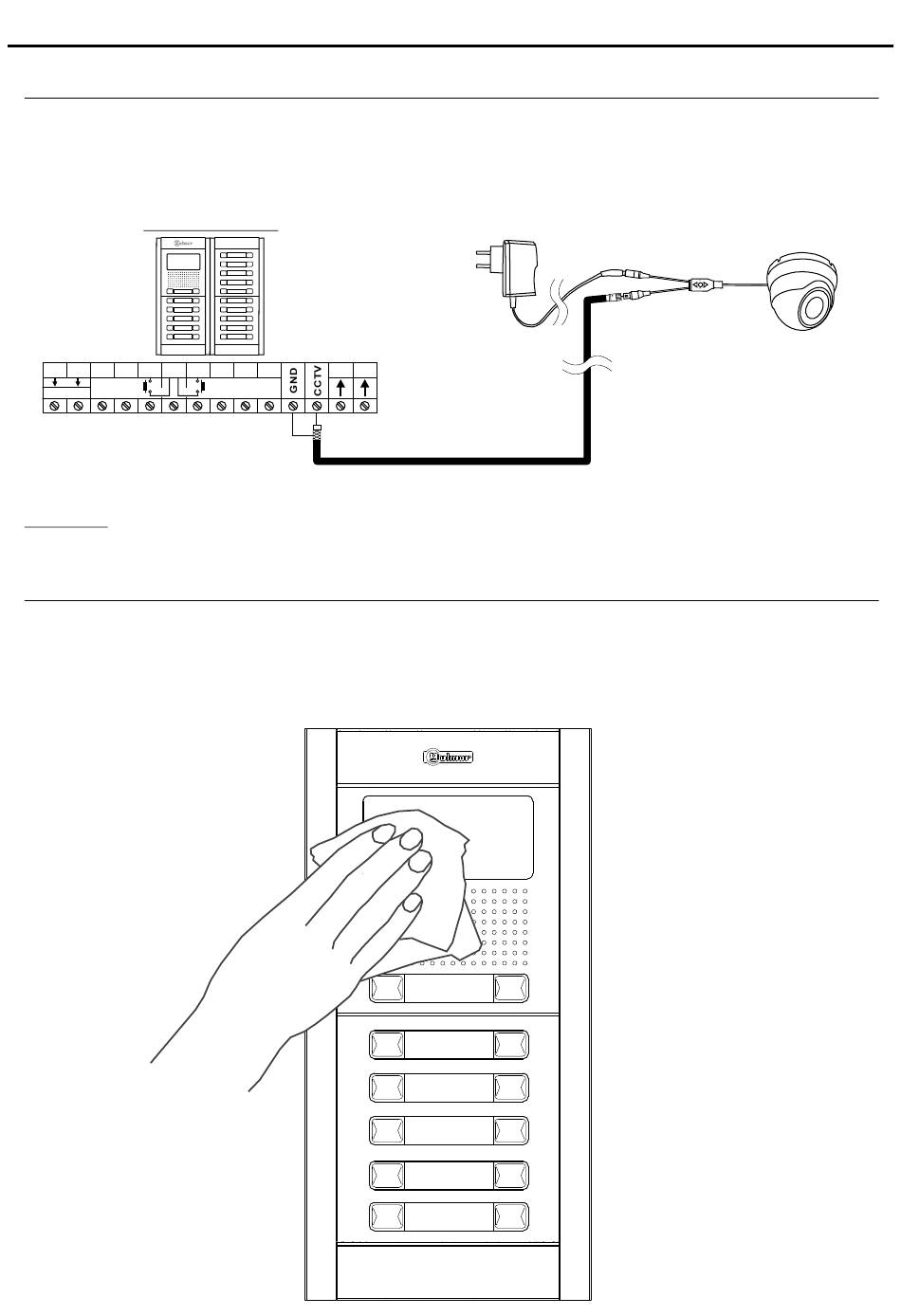

CONNECTION OF AN EXTERNAL CAMERA
It is possible to connect a Golmar AHD4-3601x analogue CCTV to the door panel, which can be viewed from the monitor,
( see corresponding monitor to activate the external camera CCTV i
required.
Access door panel
_
+
C1 NA1 AP+ AP- AP+
Relé 1
12Vdc
I mportant: Set the camera with a CVBS analogue signal, as described in the accompanying AHD4-3601x camera
manual.

CLEANING THE DOOR PANEL

- Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components.
- Use a soft damp cloth (not wet) that sheds no fibres.
- Always wipe the door panel in the same direction, from top to bottom.
- After cleaning the door panel, remove any moisture with a soft dry cloth that sheds no fibres.
C2 NA2 NC2 BUSBUS
Relé 2
n " Special Codes
POWER SUPPLY
Mains
PSU-121 (Cód. 31690144)
110~240Vac
"). "PSU-121" power supply unit
ANALOGUE CCTV CAMERA
AHD4-3601x (Cód. 31600144)
JOYSTICK
