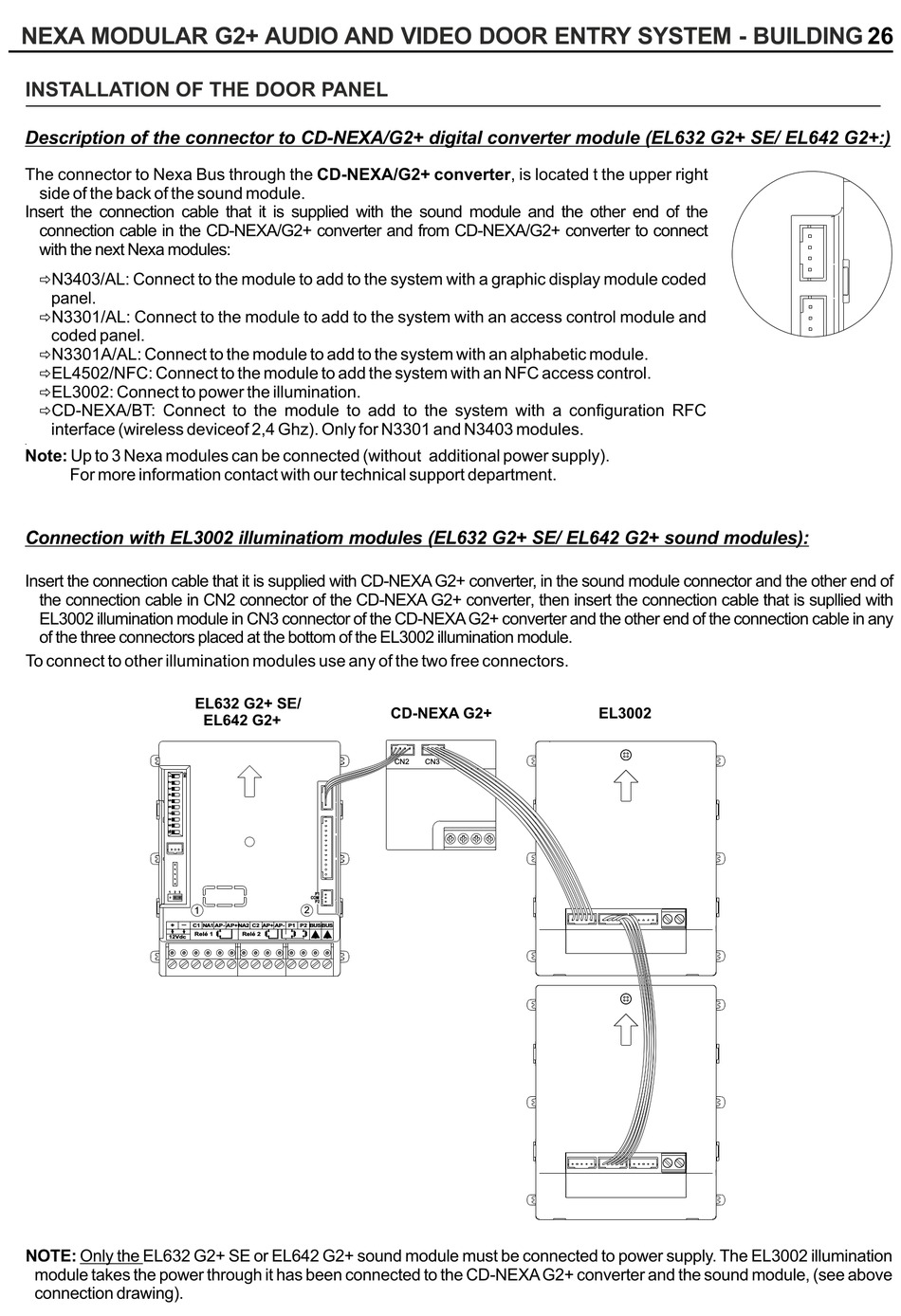

NEXA MODULAR G2+ AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL
Description of the connector to CD-NEXA/G2+ digital converter module (EL632 G2+ SE/ EL642 G2+:)
The connector to Nexa Bus through the
side of the back of the sound module.
Insert the connection cable that it is supplied with the sound module and the other end of the
connection cable in the CD-NEXA/G2+ converter and from CD-NEXA/G2+ converter to connect
with the next Nexa modules:
N3403/AL: Connect to the module to add to the system with a graphic display module coded
ð
panel.
N3301/AL: Connect to the module to add to the system with an access control module and
ð
coded panel.
N3301A/AL: Connect to the module to add to the system with an alphabetic module.
ð
EL4502/NFC: Connect to the module to add the system with an NFC access control.
ð
EL3002: Connect to power the illumination.
ð
CD-NEXA/BT: Connect to the module to add to the system with a configuration RFC
ð
interface (wireless deviceof 2,4 Ghz). Only for N3301 and N3403 modules.
.
Note: Up to 3 Nexa modules can be connected (without additional power supply).
For more information contact with our technical support department.
Connection with EL3002 illuminatiom modules (EL632 G2+
Insert the connection cable that it is supplied with CD-NEXA G2+ converter, in the sound module connector and the other end of
the connection cable in CN2 connector of the
EL3002 illumination module in CN3 connector of the CD-NEXA G2+ converter and the other end of the connection cable in any
of the three connectors placed at the bottom of the EL3002 illumination module.
To connect to other illumination modules use any of the two free connectors.
1 2 3
_
+
12Vdc
NOTE: Only the EL632 G2+ SE or EL642 G2+ sound module must be connected to power supply. The EL3002 illumination
module takes the power through it has been connected to the CD-NEXA G2+ converter and the sound module see above
connection drawing) .
CD-NEXA/G2+ converter
CD-NEXA G2+
EL632 G2+ SE/
EL642 G2+
P1
COM
P2
1 2
C1 NA1 AP- AP+ NA2 C2 AP+ AP- P1 P2 BUSBUS
Relé 1 Relé 2
, is located t the upper right
SE/ EL642 G2+
converter then insert the connection cable that is supllied with ,
CD-NEXA G2+
CN2 CN3
sound modules)
EL3002
26
:
, (
