golmar G2+ Soul Art 7 Lite User Manual
Video door entry system kit
Hide thumbs
Also See for G2+ Soul Art 7 Lite:
- User manual (60 pages) ,
- Instruction manual (36 pages) ,
- Quick manual (9 pages)
Related Manuals for golmar G2+ Soul Art 7 Lite
Summary of Contents for golmar G2+ Soul Art 7 Lite

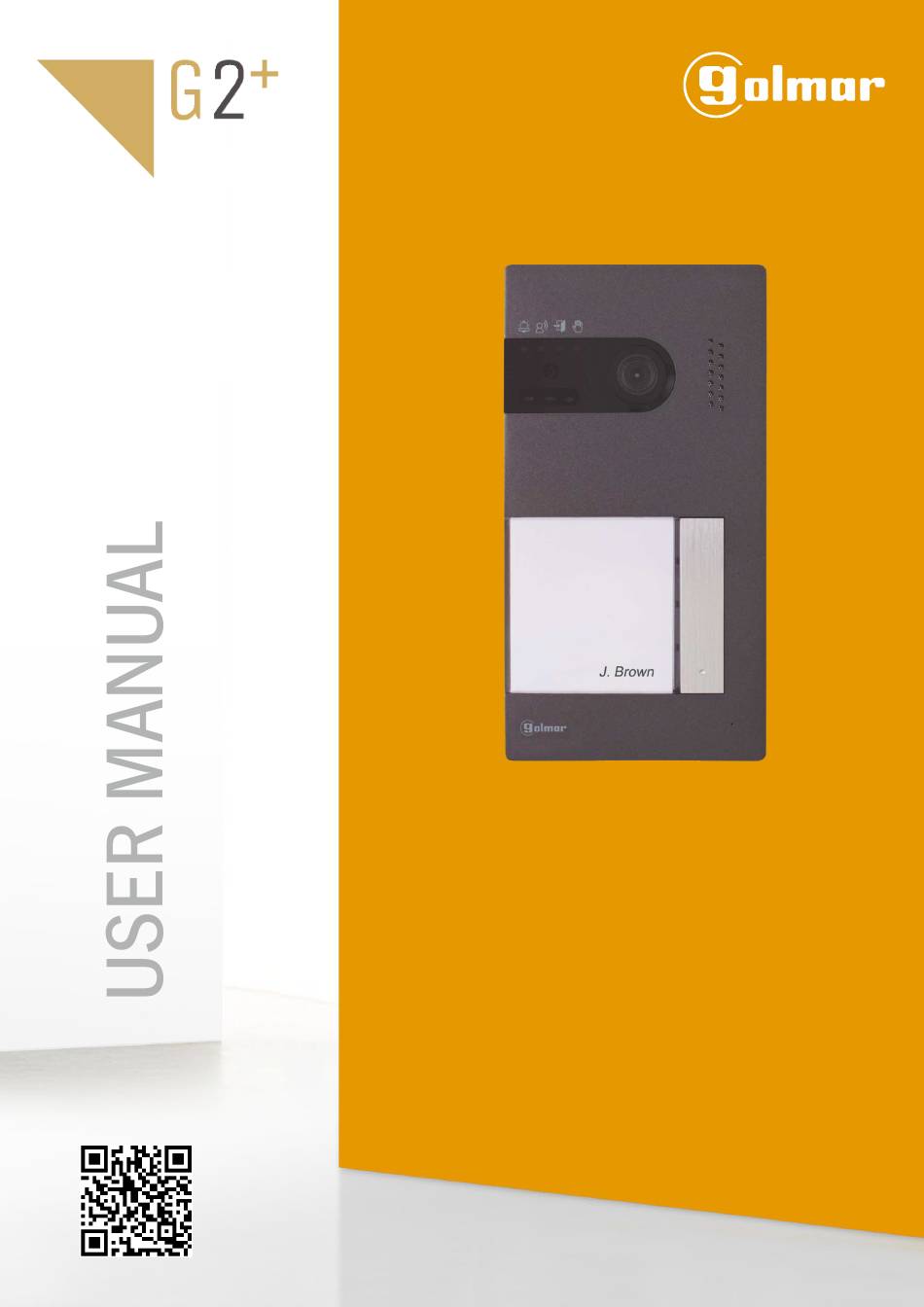

- Page 1 Kit Soul TECHNOLOGY G2+ 2-wire installation 7 Lite monitor Cód. 50122676 TS5110 ART 7 LITE EN REV.0220...
-
Page 2: Table Of Contents
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT CONTENTS Contents ..................................2 Recommendations..............................3 System operation ...............................3 FA-G2+/ LITE power supply ............................4 Description ..............................4 Installation ...............................4 Soul panel- /LITE ..............................5 to 7 Description ..............................5 Installation ...............................6 Installation terminals ............................6 Configuration switches.............................7 Setting the audio level ............................7 7 LITE /G2+ monitor ............................ -
Page 3: Recommendations
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. Always disconnect the power supply before making modifications to the device. -
Page 4: Fa-G2+/ Lite Power Supply
BUS(M) BUS(PL) 12240141 FA-G2+/LITE BUS BUS OUTPUT ± BUS 30V 2V 0.5A GOLMAR S.A. C/ Silici, 13 08940 - SPAIN INPUT ~100-240V 0.8A 50-60Hz A. Monitor Bus connection terminals. B. Door panel Bus connection terminals. C. Protective cover for the current input. -
Page 5: Description
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL-7/LITE Description A. System status icons: Call in progress. Communication established. Lock release activated. System busy. B. System status indicator lights. C. Ambient lighting sensor. D. Night viewing lighting. E. Protective polycarbonate. F. -
Page 6: Installation
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL-7/LITE Installation The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For optimum image quality, avoid direct contact from light sources (sunshine, street lights, etc.). -
Page 7: Soul Panel- /Lite
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL-7/LITE Configuration switches (R) Configuration changes should be made with the equipment turned off. If they are performed with the equipment turned on, disconnect it for 10 seconds after any modification. All switches are factory set to OFF. -
Page 8: Description
E. 7” TFT colour screen. either of the 2 buttons located above the raised dots for the visually impaired (see page 10 F. Golmar use. In call/ communication: press button to start or end G. Microphone. the communication. H. Wall mounting connector fixing (x4). -
Page 9: Installation
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Installation Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. -
Page 10: Main Menu
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Main menu Main menu LED indicators Hidden button pressing area Raised dots for the visually impaired If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above raised dots / for the visually impaired) on the monitor. -
Page 11: Settings Menu
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Settings menu Settings menu Returning to the main menu: Press the hidden button below icon to return to the main menu. The 'About' screen provides information about the monitor, such as the software version, address and whether it is master or slave (M, S1, S2 or S3). - Page 12 SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. 7 LITE /G2+ MONITOR Settings menu Selecting the melody and call volume: Press the hidden button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.
- Page 13 SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. 7 LITE /G2+ MONITOR Settings menu To enable the automatic door opening (after 3 seconds of receiving a call from the door panel), go to the option with icon by pressing the button / hidden button below...
- Page 14 SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. 7 LITE /G2+ MONITOR Settings menu Press the button below icon to return to the main menu If the ' automatic door opening ' mode is enable (see pages to 13) in the top left of the screen the icon...
-
Page 15: Door Panel Call Screen
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Door panel call screen This screen is displayed when you receive a call or when you press the button below icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). -
Page 16: Communication Screen
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Communication screen This screen is displayed during a communication process. In the top right of the screen, the source of the image is displayed. Press the hidden button below icon to access the image and monitor in communication volume settings menu. -
Page 17: Image And Communication Settings
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Image and communication settings During a communication process, press the hidden button below icon to access the image and monitor in communication volume settings menu. The following settings menu will then appear (brightness, contrast, colour and monitor in communication volume). Go to the option to be modified by pressing the button/ hidden button below... - Page 18 SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Period of time for 'do not disturb' mode menú Do not disturb' mode settings: If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above raised dots / for the visually impaired) on the...
-
Page 19: Timed 'Do Not Disturb' Menu
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. 7 LITE /G2+ MONITOR Period of time for 'do not disturb' mode menú To set a period of time for "Do not disturb" mode in which the monitor will not sound when receiving calls (see note "HZ"... -
Page 20: Intercom Menu
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT 7 LITE /G2+ MONITOR Intercom menu Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) Select option to perform an internal intercom call. If during an intercom process with another monitor a call is received from the door panel, the intercom process will be terminated, and the door panel call will be received on the corresponding monitor. -
Page 21: Cross Sections And Distances
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances - Maximum 1 apartment. LITE/G2+ LITE/G2+ - The maximum number of monitors in the apartment is 4. - The maximum number of monitors in cascade is 4. D4 -G2 - Maximum two access door panels. -
Page 22: One Apartment With Up To Two Access Panels And Up To Four Monitors In Cascade
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four monitors in cascade SOUL-7/LITE SOUL- /LITE DOOR PANEL 2 DOOR PANEL 1 LITE/G2+ LITE/G2+ LITE/G2+ APARTMENT 1 APARTMENT 1 APARTMENT 1 FA-G2+/LITE... -
Page 23: Connection Of A Lock Release
12Vd.c / 270mA If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac/1.5A). -
Page 24: Wiring Diagrams
TF-104, (see page 2 ) 3 Connection of an external camera It is possible to connect a Golmar AHD4-3601x analogue CCTV camera to each of the door panels, which can be viewed (see pp. 2 26 ) from the monitor. The camera needs to have a local PSU-121 power supply. - Page 25 SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
-
Page 26: Special Codes
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Video sources available on a monitor (only setting on master monitor). Visible No Visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120... -
Page 27: Cleaning The Monitor
SOUL S5110/ART 7 LITE VIDEO DOOR ENTRY SYSTEM KIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the monitor in the same direction, from top to bottom. -
Page 28: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
