golmar Nexa Modular G2+ User Manual page 57

RISER 1
ART 4/
ART 7/
ART 7W/
Apartment 8
Apartment 4
Apartment 3
C
Apartment 2
Apartment 1

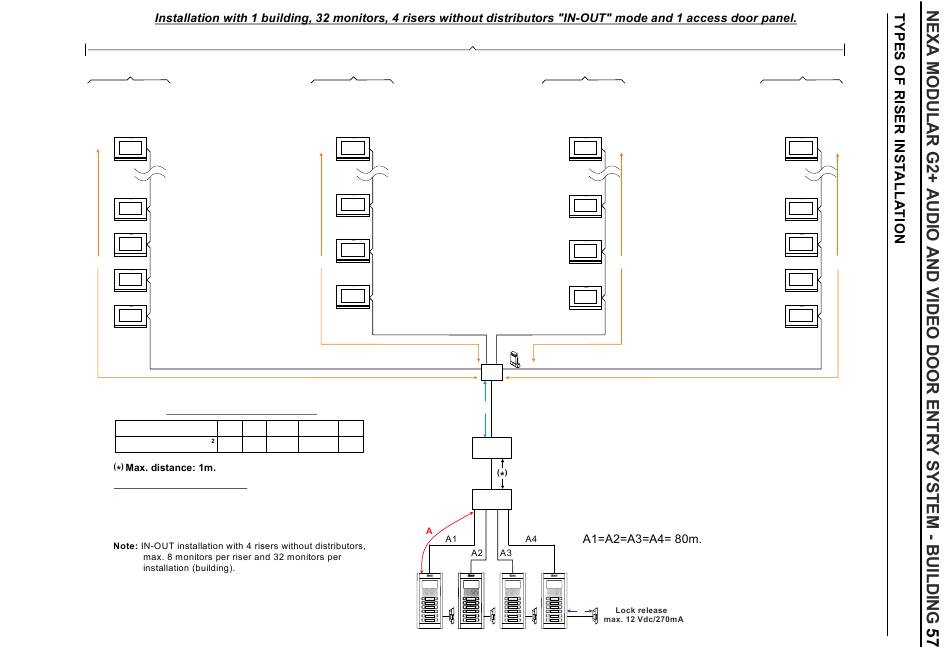

Distances and cross-sections:
Cable A B
80m 80m 80m
RAP-GTWIN/HF 2x1mm
Example of installation type:
- With 32 monitors ART 4/G2+ monitors.
- With 32 ART 7/G2+ monitors.
- With 32 ART 7W/G2+ monitors.
BUILDING 1
RISER 2
ART 4/
ART 7/
ART 7W/
Apartment 16
Apartment 11
Apartment 10
C
Apartment 9
C B+C D
130m 15m
RISER 3
ART 4/
ART 7/
ART 7W/
Apartment 24
Apartment 19
Apartment 18
C
Apartment 17
END OF LINE
ON
D 4L -G2 +
B
FA-G2+
DPM-G2+
D
RISER 4
ART 4/
ART 7/
ART 7W/
Apartment 32
Apartment 28
Apartment 27
C
Apartment 26
Apartment 25
