golmar ART 4/G2+ Monitor User Manual

Hands-free 2-wire installation
Hide thumbs Also See for ART 4/G2+ Monitor:
Table of Contents

Advertisement

Quick Links

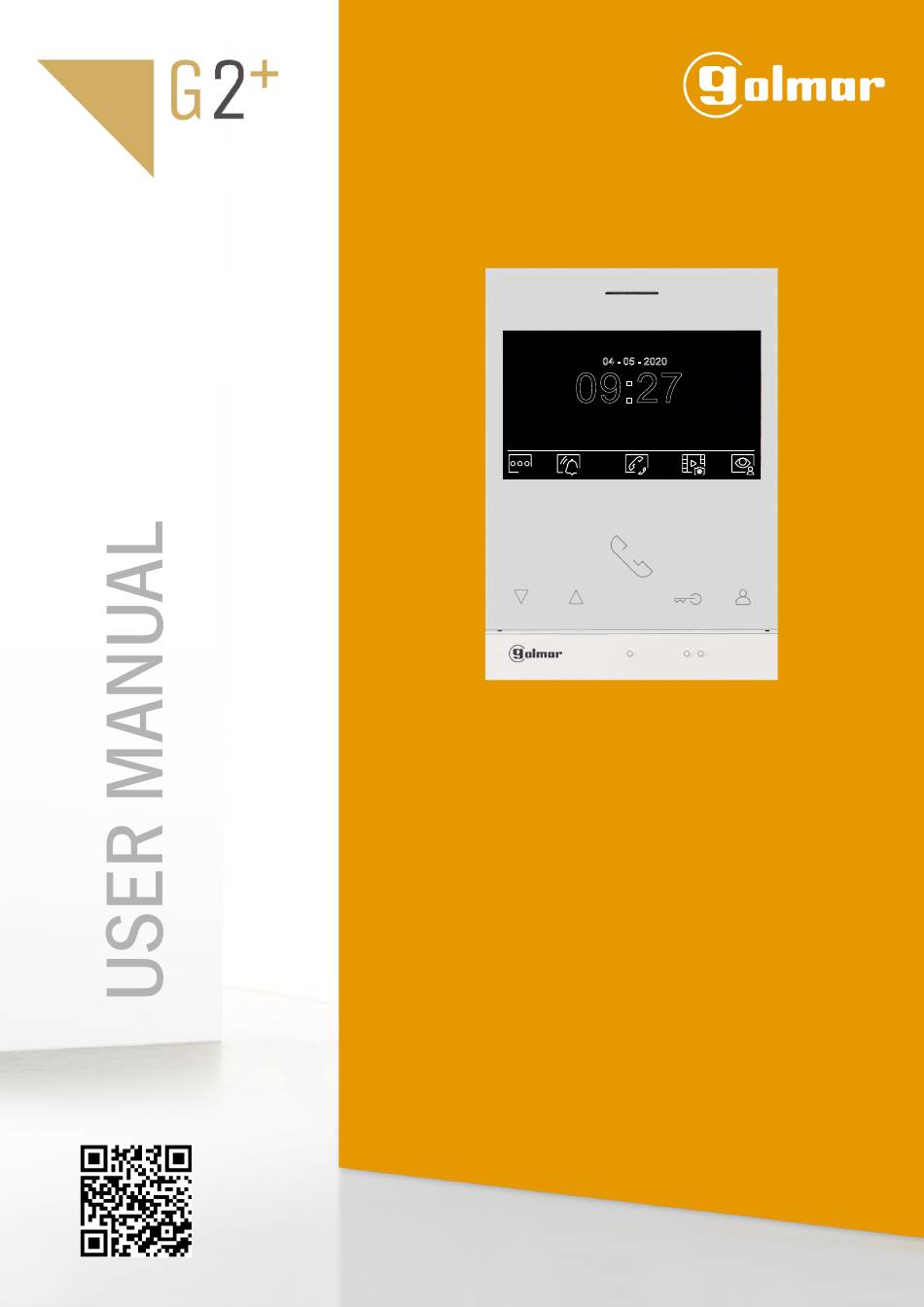

TECHNOLOGY
04 - 05 - 2020
09:27
Art 4/G2+ monitor
Hands-free
2-wire installation
Code 50122527
REV.0120
TART G2+ EN
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ART 4/G2+ Monitor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar ART 4/G2+ Monitor

Summary of Contents for golmar ART 4/G2+ Monitor

  • Page 1 TECHNOLOGY 04 - 05 - 2020 09:27 Art 4/G2+ monitor Hands-free 2-wire installation Code 50122527 REV.0120 TART G2+ EN...

  • Page 2: Table Of Contents

    CONTENTS Contents ..................................2 Set-up warnings ................................. Characteristics................................3 System operation ...............................3 VERY IMPORTANT (VILLA KIT: S5110 ART 4)......................3 Art 4/G2+ monitor............................... to 2 Description ..............................4 Installation ...............................5 Installation terminals ............................5 Configuration switches.............................5 Main menu ...............................6 Settings menu............................to Recording mode settings screen ........................12...

  • Page 3: Characteristics

    If you have the “S5110 ART 4” villa kit with Soul door panel download “TS5110 ART (cód. 5012212 )” 4 user h ps://doc.golmar.es/search/manual/50122124 manual from the next QR o n r i the link Golmar web: TS5110 ART 4 MANUAL...

  • Page 4: Art 4/G2+ Monitor

    ART 4/G2+MONITOR DESCRIPTION MADE IN CHINA DIP 1 to 5 Monitor address DIP 6,7 00 - Master 10 - Slave 1 01 - Slave 2 11 - Slave 3 DIP 8 EOL resistor OFF = 0 ON = 1 A. Speaker. Monitor status Yellow ON: Standby without notification.

  • Page 5: Installation

    Connect only on the master monitor. The signal received is then transmitted to the slave monitors in the same apartment through the BUS. Note: HZ push button function mode (ART 4/G2+ monitor "V.04 or later): " When HZ push button is pressed will be...

  • Page 6: Main Menu

    ART 4/G2+MONITOR MAIN MENU Main menu 17 10 -201 09:27 If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button located just below the corresponding icon. The device will return to standby mode after 0 seconds without activity.

  • Page 7: Settings Menu

    ART 4/G2+MONITOR SETTINGS MENU Settings menu 1st screen Returning to the main menu: Press the button 17 10 -201 below icon to return to the main menu. 09:27 To access the settings menu 2nd screen: Press the button below icon to access the settings screen No function.
  • Page 8 ART 4/G2+MONITOR SETTINGS MENU To access the settings menu 2nd screen: Press the button below icon to access the settings screen Settings menu 1st screen Settings menu 2nd screen 17-10-2019 09:27 Setting the monitor's date and time, as well as the presentation format: Press the button below icon to access the settings screen.
  • Page 9 ART 4/G2+MONITOR Continued from previous page. SETTINGS MENU Select the field to be modified by pressing the buttons below corresponding icons , then press the buttons below corresponding icons to adjust the value/format. Validate the changes made by pressing the button below icon .
  • Page 10 ART 4/G2+MONITOR Continued from previous page. SETTINGS MENU To set a period of time in which the monitor will not sound when receiving calls, go to the option with icon by pressing the buttons below corresponding icons and select the option to be modified by pressing the button below icon .
  • Page 11 ART 4/G2+MONITOR SETTINGS MENU Selecting the melody and call volume: Press the button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.

  • Page 12: Recording Mode Settings Screen

    ART 4/G2+MONITOR Continued from previous page. SETTINGS MENU Then press the button below icon to return to the main menu. Settings menu 1st screen Main menu 17 10 -201 17 10 -201 09:27 09:27 RECORDING MODE SETTINGS SCREEN Recording mode settings: Access the recordings menu as described on p. . Then press the button below icon to access the settings screen.

  • Page 13: Automatic Deletion Of Images/Videos, Internal Memory And Microsd Card Screen

    ART 4/G2+MONITOR AUTOMATIC DELETION OF IMAGES/VIDEOS, INTERNAL MEMORY AND MICROSD CARD SCREEN Automatic deletion of images/videos, internal memory and MicroSD card: Access the recordings menu as described on p. . Press the button below icon to access the selection screen. In some countries, the law does not permit the storage of images or videos for more than 30 days after recording.
  • Page 14 ART 4/G2+MONITOR Continued from previous page. AUTOMATIC DELETION OF IMAGES/VIDEOS, INTERNAL MEMORY AND MICROSD CARD SCREEN If you have inserted a MicroSD card into the monitor, you can delete the still images videos recorded on the MicroSD card. The monitor has the option to format the MicroSD card. Press the button below icon to return to the recordings...

  • Page 15: Door Panel Call Screen

    ART 4/G2+MONITOR DOOR PANEL CALL SCREEN 0 -0 -2 1 7 019 11:17:10 This screen is displayed when receiving a call or pressing the button below icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed.

  • Page 16: Communication Screen

    ART 4/G2+MONITOR COMMUNICATION SCREEN 0 -0 -2 1 7 019 11:17:10 This screen is displayed during a communication process. In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed. Press the button below icon for 3 seconds to access the image and monitor in communication volume settings menu.

  • Page 17: Image And Communication Settings

    ART 4/G2+MONITOR IMAGE AND COMMUNICATION SETTINGS During a call/communication process, press the button below icon for 3 seconds to access the image and monitor call/ communication volume settings menu. 17-10-2019 11:17:10 Press for 3 seconds The following brightness control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons .
  • Page 18 ART 4/G2+MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following contrast control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons . To access the colour control, press the button below icon .
  • Page 19 ART 4/G2+MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS The following call tone settings volume during a call process (Screen A) or communication settings volume during a communication process (Screen B) will then be displayed. Adjust to the desired level by pressing the buttons below icons .

  • Page 20: Intercom Menu

    ART 4/G2+MONITOR INTERCOM MENU Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monitor(s) of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p.
  • Page 21 ART 4/G2+MONITOR Continued from previous page. INTERCOM MENU To make an external intercom call (to other apartments), go to the option with icon by pressing the buttons below corresponding icons and press the button below icon to access the code selection menu of the apartment with which you wish to communicate.

  • Page 22: Recordings Menu

    ART 4/G2+MONITOR RECORDINGS MENU Access the recordings menu as described on p. . This menu displays the list of images saved in the memory of the device. If a MicroSD card is inserted in the monitor, images/videos will be recorded on the Micro SD card. Press the button below icon to access the list of videos saved on the MicroSD card.
  • Page 23 ART 4/G2+MONITOR Continued from previous page. RECORDINGS MENU If a MicroSD card is inserted in the monitor, press the button below icon to access the list of videos. In the list of recorded videos, those that have not been viewed are highlighted in white. There are 10 recordings per page and the number of pages is shown in the bottom right of the screen.
  • Page 24 ART 4/G2+MONITOR Continued from previous page. RECORDINGS MENU To return to the recordings menu, press the button below icon . Then, to return to the main menu, press the button below icon List of recorded videos screen Recordings menu 0 -0 -2 9 7 019 8 21 0 -0 -2...

  • Page 25: Special Codes

    ART 4/G2+MONITOR SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 26 Configuration of the remote activation button Relay2 (Door panel 1). (Configure only on the master monitor). Factory setting Delay From 5 0 00 (0,5s) to 5 0 19 (10s) 0 03 (2s) Note: Only ART 4/G2+ monitor "V.04 or later. "...

  • Page 27: Cleaning The Monitor

    ART 4/G2+MONITOR CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the monitor in the same direction, from top to bottom. - After cleaning the monitor, remove any moisture with a soft dry lint-free cloth.

  • Page 28: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
