golmar G2+ Soul Instruction Manual

golmar G2+ Soul Instruction Manual

2-wire installation
Hide thumbs Also See for G2+ Soul:

Advertisement

Quick Links

Download this manual
TEC NOLOG
H
Y
Soul/Access
G2+ 2-wire installation
C de 5012
o
3138
TSOUL ACCESS EN REV.03 1
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the G2+ Soul and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar G2+ Soul

Summary of Contents for golmar G2+ Soul

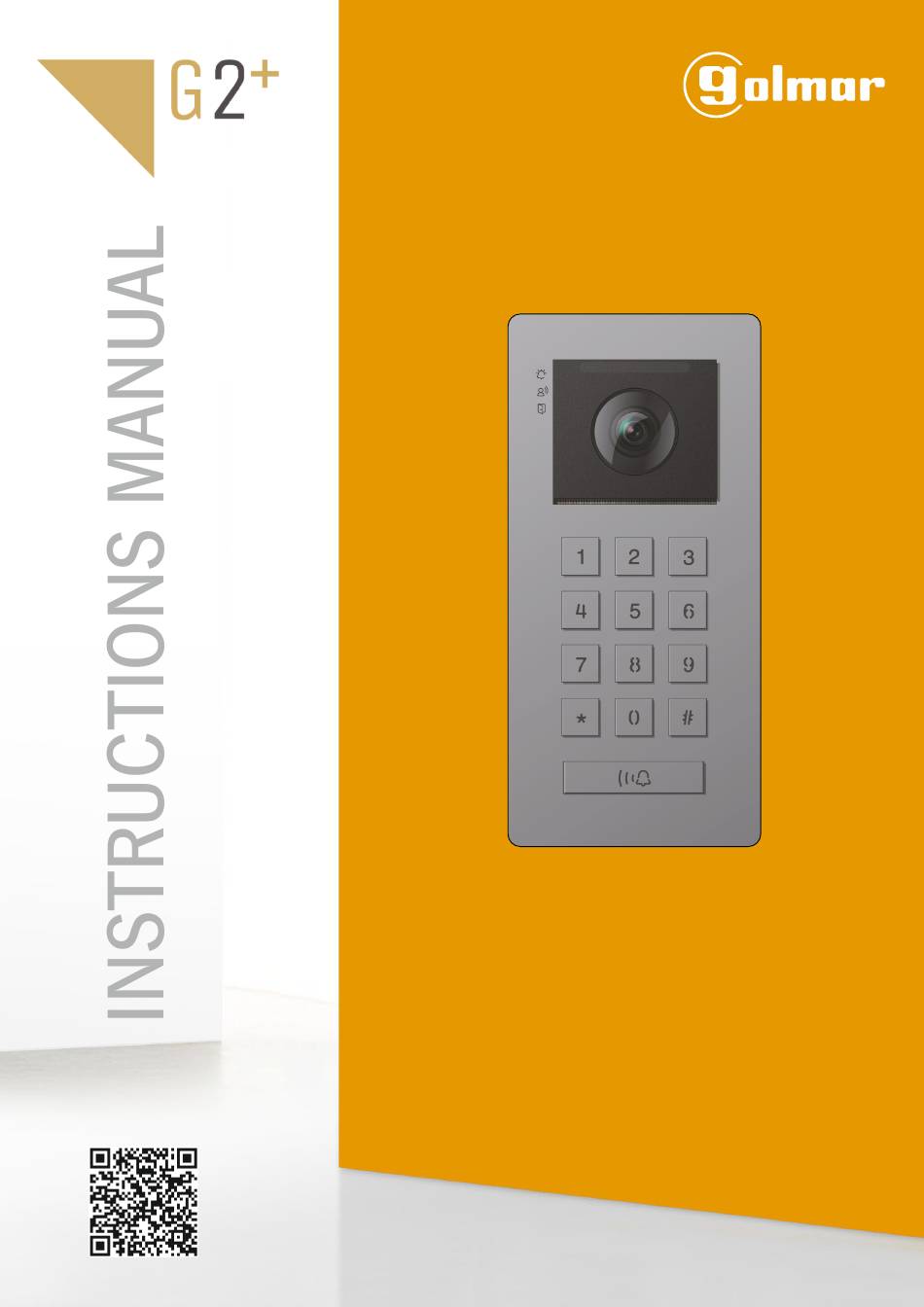

  • Page 1 TEC NOLOG Soul/Access G2+ 2-wire installation C de 5012 3138 TSOUL ACCESS EN REV.03 1...
  • Page 2 Limpieza de la placa ..............................25 Conformidad ................................26 RECOMENDACIONES RAP GTWIN HF - Utilizar, preferentemente, cable Golmar (2x1mm ). ² - La instalación debe viajar alejada al menos a 40cm. de cualquier otra instalación. - Cuando se realicen modificaciones en la instalación, hacerlo sin alimentación.
  • Page 3 SOUL/ACCESS DOOR PANEL SYSTEM OPERATION (VILLA MODE) To make a call, the visitor must press the button apartment; an audible 3 tones indicates that the call is being made and LED will turn on At this moment, the apartment's monitor s receive the call In systems with more of two access doors, the other door(s) panel automatically disconnects;...

  • Page 4: Specification

    ± MADE IN CHINA BUS 30V 2V 1. A BUS BUS GOLMAR S.A. C/ Silici, 13 08940 - SPAIN A. On/off indicator light. B. Protective cover for the current input. C. Detail of current input terminals without protective BUS(M) BUS PL cover.
  • Page 5 Installation terminals Access control : The owner of the apartment can activate O. Golmar use. the lock release or the auxiliary relay output by entering a numeric access code with numeric keypad of the door panel and next press push button (see pages 7 and 9 to enable access code(s)).
  • Page 6 SOUL/ACCESS DOOR PANEL SOUL/ACCESS DOOR PANEL Instal a l tion The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For optimum image quality, avoid direct contact from light sources (sunshine, street lights, etc.).
  • Page 7 SOUL/ACCESS DOOR PANEL SOUL/ACCESS DOOR PANEL SETTING Programming mode structure and sequence de las funciones de la placa Programming door panel functions is performed by entering the master code,setting code or function to setting, followed by the parameter. The programming mode is as follows: Example “ Button light setting at night ”.
  • Page 8 SOUL/ACCESS DOOR PANEL Continued from previous page. SOUL/ACCESS DOOR PANEL SETTING Door panel functions setting Funtion 4, activation time “auxiliary relay output”: The following programming sequence allows setting the activation time (3 seconds "default") of the auxiliary relay output (parameters: 1:0.5 sec / 2: 1 sec / ../ 20: 10 sec). Setting code Master code P.
  • Page 9 SOUL/ACCESS DOOR PANEL Continued from previous page. SOUL/ACCESS DOOR PANEL SETTING Door panel functions setting Function 11, Confirmation tones on door panel: The following programming sequence allows to activate / deactivate the call is being made, door open or channel busy confirmation tones on door panel (parameters: 0: activated "by default"/ 1: deactivated).
  • Page 10 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (VILLA) Cross sections and distances - 1 apartment. ART / 4 ART 4 LITE ART / 4 ART 4 LITE ART / 4 ART 4 LITE ART / 4 ART 4 LITE The maximum number of monitors per apartment is ART 7 / H ART 7 LITE ART 7 / H ART 7 LITE ART 7 / H ART 7 LITE...
  • Page 11 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (VILLA) One apartment with up to two access panels and up to four monitors in cascade ( ) * ( ) * ( ) * Mains (Villa mode) (Villa mode) 100~240Vac SOUL/ACCESS SOUL/ACCESS ART 7 ART 7 ART 7 DOOR PANEL 2...
  • Page 12 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) Cross sections and distances - Up to 32 monitors / apartments with (ART 4/ ART 4 LITE/ ART 7H/ ART 7 LITE & ART 7W monitors) per installation. - Up to 32 monitors/audio terminals and apartments in mixed installations (monitors/ audio terminals). - Up to 128 audio terminals / apartments per installation (only audio installation).
  • Page 13 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) 32 apartments with 2 access panels and up to 32 monitors con 16 D2L-G2+ distributors ART 4 / ART 4 LITE ART 4 / ART 4 LITE Master Master End of line APARTMENT 31 APARTMENT 32 ART 4 / ART 4 LITE ART 4 / ART 4 LITE...
  • Page 14 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) 32 monitors/terminals with 31 apartments and 1 additional terminal in 1 apartment with 8 D L-G2+ Additional ART 1/G2+ t rminal in the same apartment End of line ART 4 / ART 4 LITE ART 1/G2+ Master Slave 1...
  • Page 15 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) 32 apartments with 2 access panels and up to 32 ART 7W monitors with 8 D4L-G2+ distributors ART 7W/G2+ ART 7W/G2+ Master Master FA-ART 7W FA-ART 7W APARTMENT 31 APARTMENT 32 ( ) 3 ( ) 3 End of line...
  • Page 16 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) 2 apartments with 2 access panels and up to 12 monitors in IN-OUT without distributors ART 7H / ART 7 LITE Master ( ) 1 APARTMENT 12 ART 7H / ART 7 LITE Master ( ) 1 APARTMENT 4 ART 7H / ART 7 LITE...
  • Page 17 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (BUILDING) Audio door entry system with 2 access panels and up to 128 terminals / apartments T-ART G2+/ T-ART G2+/ ART 1/G2+ ART 1/G2+ Master Master Make the connections in electrical junction box. ( ) 1 ( ) 1 APARTMENT 128 APARTMENT 127...
  • Page 18 DOOR PANEL If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac/1.5A). Mains...
  • Page 19 CV- CV+ BUS BUS Connection of an external camera It is possible to connect a Golmar AHD4-3601x analogue CCTV camera to each of the door panels, which can be viewed (see pp. 21to 22 ) from the monitor. The camera needs to have a local PSU-121 power supply.
  • Page 20 SOUL/ACCESS DOOR PANEL WIRING DIAGRAMS (VILLA/ BUILDING) Video door entry system: To villa monitor/s, see pp. 10 to 11 / to building monitors, see page Video door entry system: To villa distribuidor, see page 11 / to the distributors (buildings floors), see pp. 12 to 15. Audio door entry system: To electrical junction box for Bus connections T-ART / ART 1 G2+, see page 17.

  • Page 21: Special Codes

    MONITOR ART 4/G2+ & ART 4 LITE/G2+ Viene de la página anterior. SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu and press five times on button of the monitor, (for more information see the corresponding manual...
  • Page 22 MONITOR ART 7/G2+ & ART 7H/G2+ & ART 7 LITE/G2+ Continued from previous page. SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu and press five times on the button located above the raised dot for the visually impaired for more information see the corresponding manual ‘About screen...
  • Page 23 MONITOR ART 7W/G2+ Continued from previous page. SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the settings menu and press five times on icon in the top left of the screen to bring up a keyboard to enter the codes, (for more information...
  • Page 24 MONITORS ART 4/G2+ & ART 4 LITE/G2+ ART 7/G2+ & ART 7H/G2+ & ART 7 LITE/G2+ & ART 7W/G2+ Continued from previous page. Fuentes de vídeo disponibles en un monitor (configurar solo en monitor principal). Visible No Visible Valor de fábrica Placa 1 0111 0110...

  • Page 25: Cleaning The Monitor

    SOUL/ACCESS DOOR PANEL CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the door panel in the same direction, from top to bottom. - After cleaning the door panel, remove any moisture with a soft dry cloth that sheds no fibres.
  • Page 26 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
