golmar G2+ Soul kit User Manual

2-wire installation art 7h monitor
Hide thumbs Also See for G2+ Soul kit:
Table of Contents

Advertisement

Quick Links

Download this manual
Soul kit
TECHNOLOGY
G2+ 2-wire installation
Art 7H monitor
REV.0121
Code 50122125
T 5110 ART 7H EN
S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2+ Soul kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar G2+ Soul kit

Summary of Contents for golmar G2+ Soul kit

  • Page 1 Soul kit TECHNOLOGY G2+ 2-wire installation Art 7H monitor REV.0121 Code 50122125 T 5110 ART 7H EN...

  • Page 2: Table Of Contents

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT CONTENTS Contents ..................................2 Recommendations..............................3 System operation ...............................3 FA-G2+ power supply..............................4 Descrip tion ..............................4 Installation ...............................4 Soul panel................................5 to 8 Descrip tion ..............................5 Installation ...............................6 Installation terminals ............................6 Configuration switches.............................7 Setting the audio level ............................7 Programming the proximity reader ........................8 Art 7H/G2+ monitor ............................9 to 25 Description ..............................9...

  • Page 3: Recommendations

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. - Always disconnect the power supply before making modifications to the device.

  • Page 4: Fa-G2+ Power Supply

    ± MADE IN CHINA BUS 30V 2V 1. A BUS BUS GOLMAR S.A. C/ Silici, 13 08940 - SPAIN A. On/off indicator light. B. Protective cover for the current input. C. Detail of current input terminals without protective BUS(M) BUS PL cover.

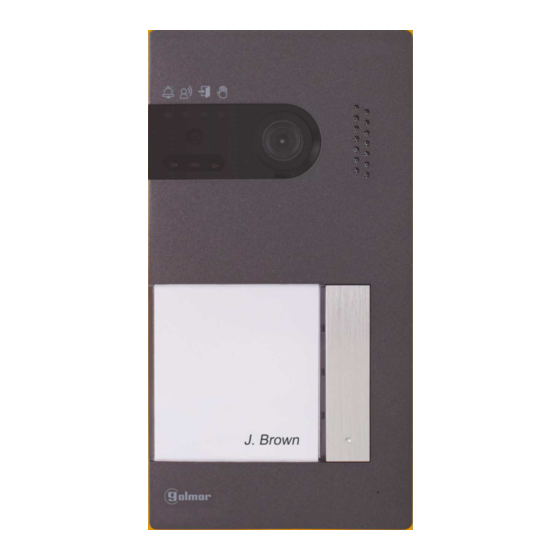

  • Page 5: Soul Panel

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL Description A. System status icons: Call in progress. Communication established. Lock release activated. System busy. B. System status indicator lights. C. Ambient lighting sensor. D. Night viewing lighting. E. Protective polycarbonate. F.

  • Page 6: Installation

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL Installation The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For optimum image quality, avoid direct contact from light sources (sunshine, street lights, etc.).

  • Page 7: Configuration Switches

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT SOUL ANEL Configuration switches (R) Configuration changes should be made with the equipment turned off. If they are performed with the equipment turned on, disconnect it for 10 seconds after any modification. All switches are factory set to OFF.

  • Page 8: Programming The Proximity Reader

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT SOUL ANEL Programming the proximity reader (L) Make sure that the device is powered and the reader is connected to the door panel (Q). To add user keys (up to 60) to the memory of the proximity reader, it is necessary to create a programming key and a user registration key.

  • Page 9: Description

    VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Description Hidden button pressing area 12210702 MONITOR 7” ART 7H/G2+ codes GOLMAR S.A. CAUTION C/ Silici, 13 TO PREVENT ELECTRIC SHOCK, 08940 - SPAIN WARNING DO NOT REMOVE COVER. TO PREVENT FIRE OR ELECTRIC...

  • Page 10: Installation

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Installation Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2.

  • Page 11: Main Menu

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Main menu 01 7 -0 -201 09:27 LED indicators Hidden button pressing area Raised dots for the visually impaired If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above the raised dots for the visually impaired) on the monitor.
  • Page 12 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Settings menu Returning to the main menu: Press the button below icon to return to the main menu. Setting the monitor's date and time, as well as the presentation format: Press the button below icon to access the settings screen.
  • Page 13 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Settings menu Select the field to modify by pressing the button/ hidden button below corresponding icons , then press the hidden buttons below corresponding icons to adjust the value/format.
  • Page 14 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Settings menu Automatically deleting images/videos, image recording mode, internal memory and Micro SD card: Press the hidden button below icon to access the settings screen. In some countries, the law does not permit the storage of images or videos for more than 30 days after recording.
  • Page 15 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Settings menu If you have inserted a Micro SD card into the monitor, you can delete the still images and videos recorded on the Micro SD card. The monitor has the option to format the Micro SD card. Press the button below icon to return to the settings menu.

  • Page 16: Settings Menu

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Settings menu To activate and set a period of time for the automatic opening of door (after 3 seconds of receiving a call from the door panel), go to the option with icon by pressing the button/ hidden...

  • Page 17: Door Panel Call Screen

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Door panel call screen 0 -0 -2 1 7 019 11:17:10 This screen is displayed when you receive a call or when you press the button below icon of the main menu.

  • Page 18: Communication Screen

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Communication screen 0 -0 -2 1 7 019 11:17:10 This screen is displayed during a communication process. In the top centre of the screen, the date and time are shown and, on the right, the source of the image is displayed (door panel 1 door panel , camera 1 camera )

  • Page 19: Image And Communication Settings

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Image and communication settings During a communication process, press the hidden button below icon to access the image and monitor in communication volume settings menu 0 -0 -2 1 7 019 11:17:10 The following settings menu will then appear (brightness, contrast, colour and monitor in communication volume).
  • Page 20 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Intercom menu Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monito of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p age 21...
  • Page 21 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Intercom menu For external intercom, the monito of the apartment that makes the call and the monitor of the apartment that receives the call must have the intercom function enabled: To enable/disable the intercom function between apartments, go to the option with icon by pressing the button/ hidden button below corresponding icons...

  • Page 22: Intercom Menu

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Intercom menu Press the button/ hidden button below icons to select the apartment code field to be modified, then press the hidden buttons below icons to be modified with the apartment code to be called and press the hidden button below icon to make the call.

  • Page 23: Recordings Menu

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT MONITOR ART 7 /G2+ Recordings menu Access the recordings menu as described on p. 11. This menu displays the list of images saved in the memory of the device. If a Micro SD card is inserted in the monitor, images/videos will be recorded on the Micro SD card. Press the hidden button below icon to access the list of videos saved on the Micro SD card.
  • Page 24 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Recordings menu If a Micro SD card is inserted in the monitor, press the hidden button below icon to access the list of videos. In the list of recorded videos, those that have not been viewed are highlighted in white.

  • Page 25: Art 7H/G2+ Monitor

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. MONITOR ART 7 /G2+ Recordings menu To return to the main menu, press the button below icon 01 / 03 0 -0 -2 9 7 019 8 21 0 -0 -2 9 7 019 1 :17: 0...

  • Page 26: Cross Sections And Distances

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances The maximum number of monitors per apartment is 4 - The maximum number of monitors in cascade is 12. ART 7 /G2+ ART 7 /G2+ - The maximum access door panels is 4. Important: More than 2 access door panels, AC lock release must be connected to door panels 3 and 4 (instead of DC lock release) with a SAR-12/24 relay module and a TF-104 transformer, (see...

  • Page 27: One Apartment With Up To Two Access Panels And Up To Four Monitors In Cascade

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four monitors in cascade ( ) * ( ) * ( ) * Mains 100~240V a SOUL/1 SOUL/1 ART 7 /G2+ ART 7 /G2+ ART 7 /G2+ DOOR PANEL 2...

  • Page 28: Two Apartments With Up To Two Access Panels And Up To Four Monitors In Cascade

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Two apartments with up to two access panels and up to four monitors in cascade ( ) * ( ) * ( ) * ( ) * ART 7 /G2+ ART 7 /G2+ ART 7 /G2+ ART 7 /G2+...

  • Page 29: Four Apartments With Up To Two Access Panels And Up To Four Monitors In Cascade

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Four apartments with up to two access panels and up to four monitors in cascade ( ) * ( ) * ( ) * ( ) * ART 7 /G2+ ART 7 /G2+ ART 7 /G2+ ART 7 /G2+...

  • Page 30: Wiring Diagrams

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Four apartments with up to four access panels and up to four monitors in cascade ( ) * ( ) * ( ) * ( ) * ART 7 /G2+ ART 7 /G2+ ART 7 /G2+ ART 7 /G2+...

  • Page 31: Connection Of A Lock Release

    If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac / 1.5A) Mains...

  • Page 32: Connection Of An Exit Button

    Connection of an external camera It is possible to connect a Golmar AHD4-3601x analogue CCTV camera to each of the door panels, which can be viewed (see pp. 3 -3 ) from the monitor. The camera needs to have a local PSU-121 power supply...
  • Page 33 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 34 SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on master monitor) Visible Not Visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3...

  • Page 35: Special Codes

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Activation times of the outputs (Door panel ). 3 (Only setting on master monitor). Factory setting Lock release From 200 (0.5s) to 219 (10s) 20 (3s) Relay From 300 (0.5s) to 319 (10s) 30 (3s)

  • Page 36: Cleaning The Monitor

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft, damp cloth (not wet) that does leave lint behind. - Always wipe the monitor in the same direction, from top to bottom.

  • Page 37: Notes

    SOUL S5110/ART 7 VIDEO DOOR ENTRY SYSTEM KIT NOT S...

  • Page 38: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
