NEXA MODULAR G2+ AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

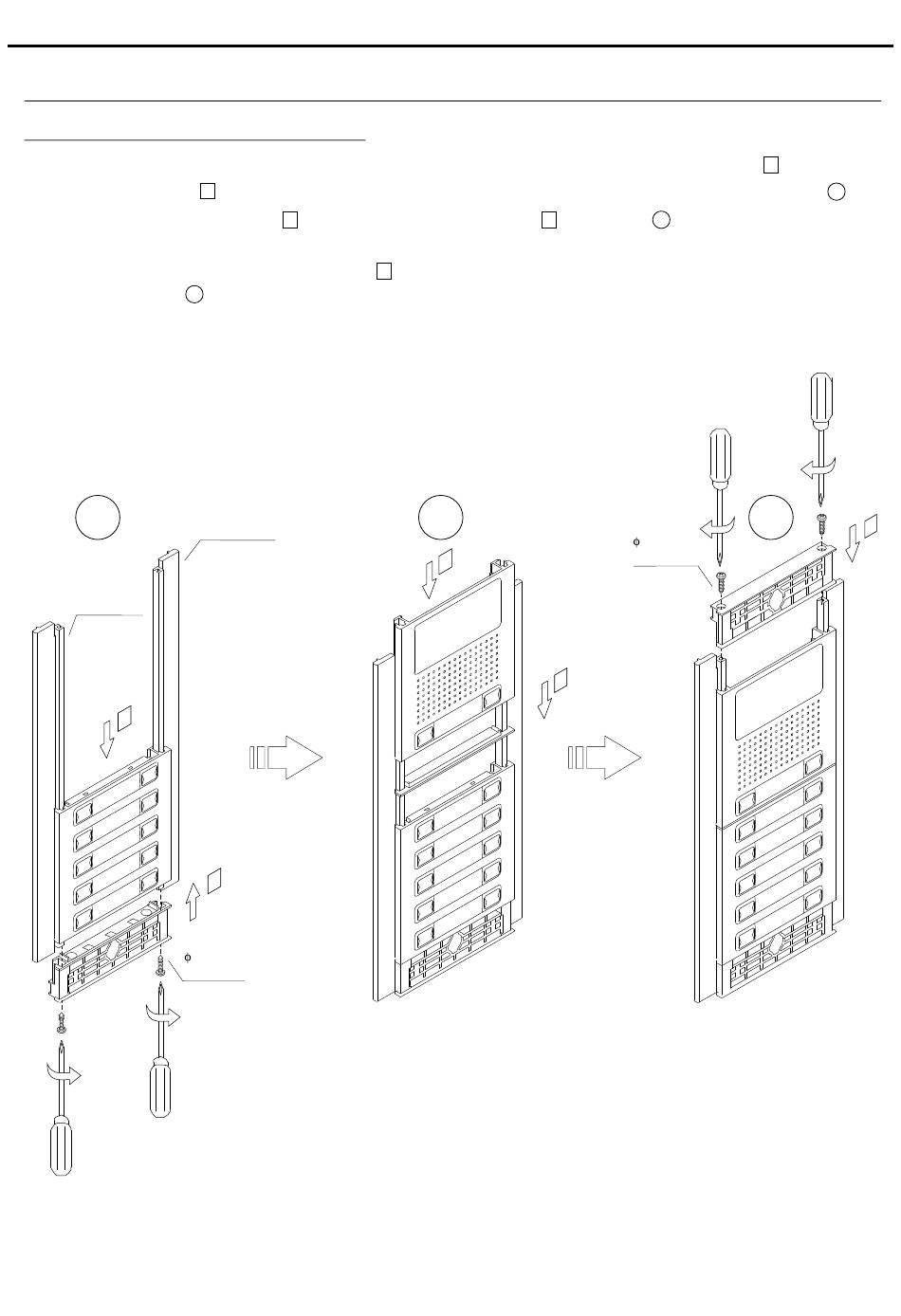

Mounting the modules of a door panel:
Insert a clip-on cover into the side profiles (from the bottom) and fix it using the screws specified (step 1 ) and then
insert the module (step 2 ). If the door panel has more than one module, insert the lower module first, see figure A .
Insert the module separator (step 3 ) and then the next module (step 4 ), see figure B . Repeat this process on
door panels with more than one module (the maximum number of modules that can be linked vertically is three).
To finish, insert the second clip-on cover (step 5 ) into the side profiles (from the top) and fix it using the screws
specified, see figure C .
A
Side profile
2
DIN-7981
Side profile
1
2,9 x 13
B
4
3
C
2,9 x 13
DIN-7981
30
5
