NEXA MODULAR G2+ AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
INSTALLATION OF THE DOOR PANEL

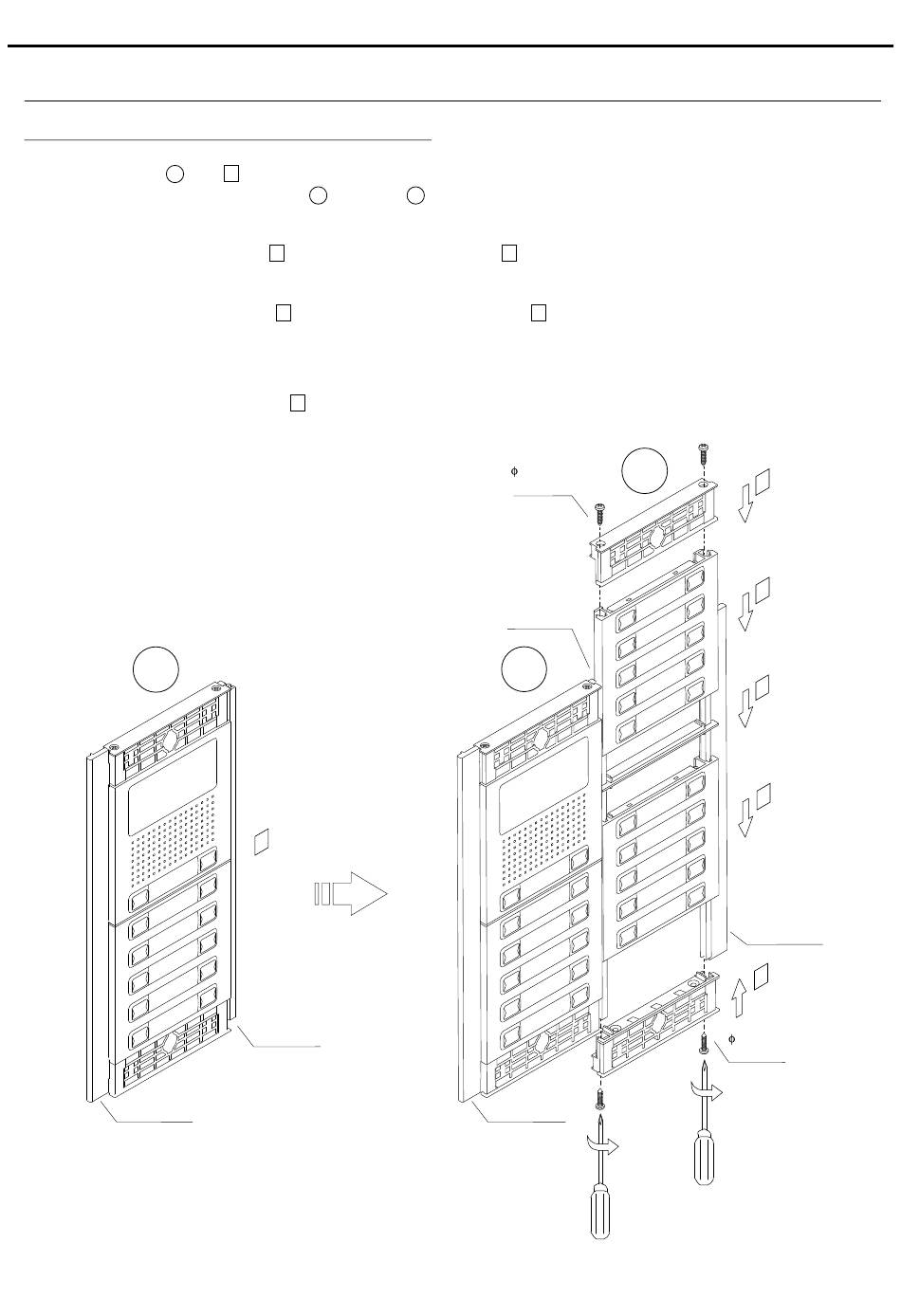

Mounting the modules of a double door panel:
Mount door panel A (step 1 ) as described in 'Mounting the modules of a door panel' (see page
account that the bar connecting panel A and panel B must be a door panel UNE rod, see drawing below.
Insert a clip-on cover between the door panel UNE rod and the second side profile (from the bottom) and fix it
using the screws specified (step 2 ), then insert the module (step 3 ). If the door panel has more than one module,
insert the lower module first.
Insert the module separator (step 4 ) and then the next module (step 5 ). Repeat this process on door panels with
more than one module (the maximum number of modules that can be linked vertically is three).
To finish, insert the final clip-on cover between the door panel UNE rod and the second side profile (from the top) and
fix it using the screws specified (step 6 ).
A
Side profile
IMPORTANT: Once the adjustments are completed, stick the adhesive joint (enclosed with the N60XX CMPL end
piece set) to the door panel UNE rod.
1
Door panel
UNE rod
B
2,9 x 13
DIN-7981
Door panel
UNE rod
A
Side profile
31
30 ), taking into
6
5
4
3
Side profile
2
2,9 x 13
DIN-7981
