Hardware Orientation

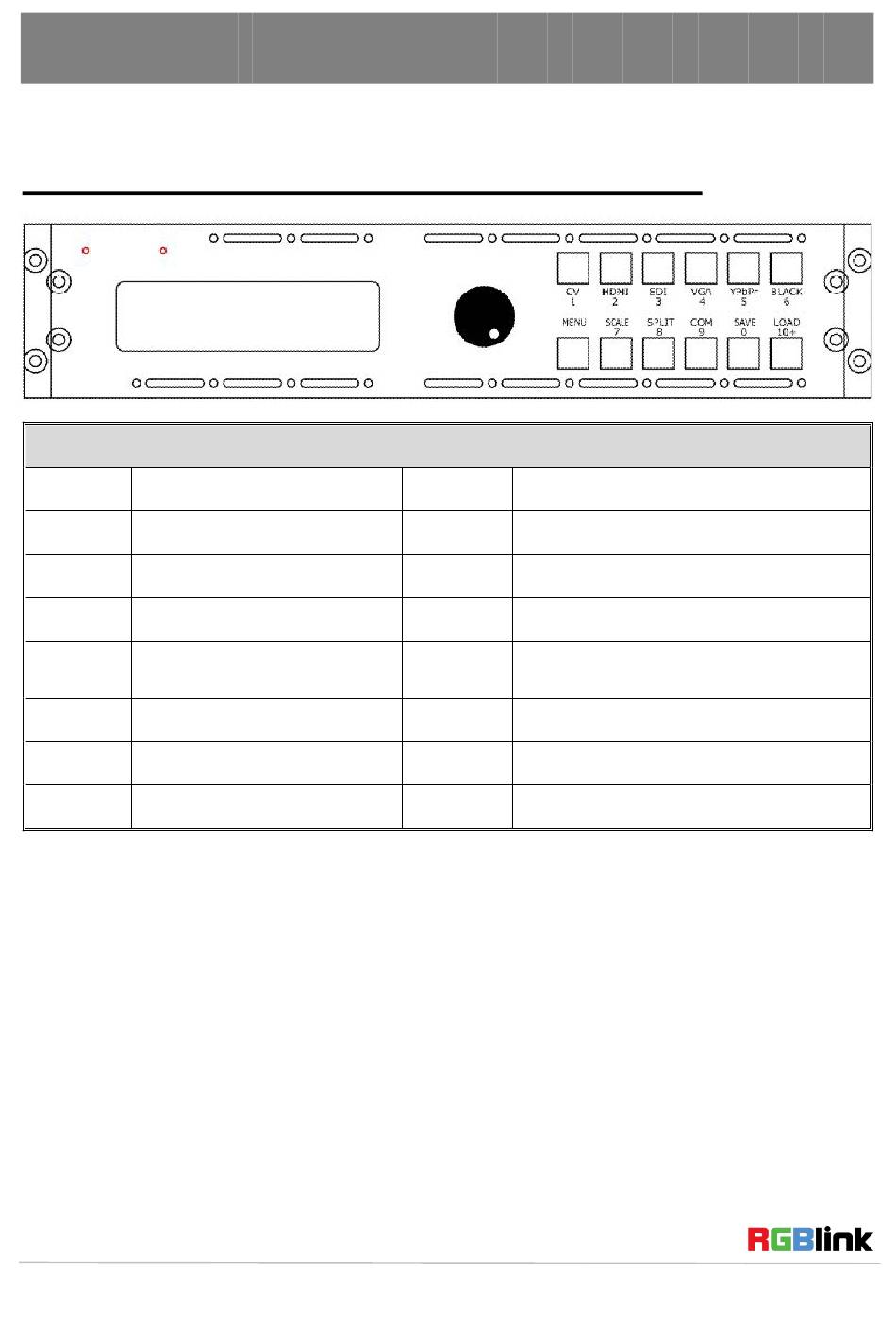

Front Panel

Button Instruction
CV CVBS signal source button
HDMI HDMI signal source button
SDI SDI signal source button
VGA VGA signal source button
YPbPr YPbPr signal source button
BLACK Black button
MENU Menu button
SCALE Scale button
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
SPLIT Split button
COM Cascade button
SAVE Save button
LOAD Load button
Number button, use for scale and
0~9
custom setting
LCD Panel Show operation menu items
Knob Confirm and adjust LCD menu
4
