Fitting a foot pedal

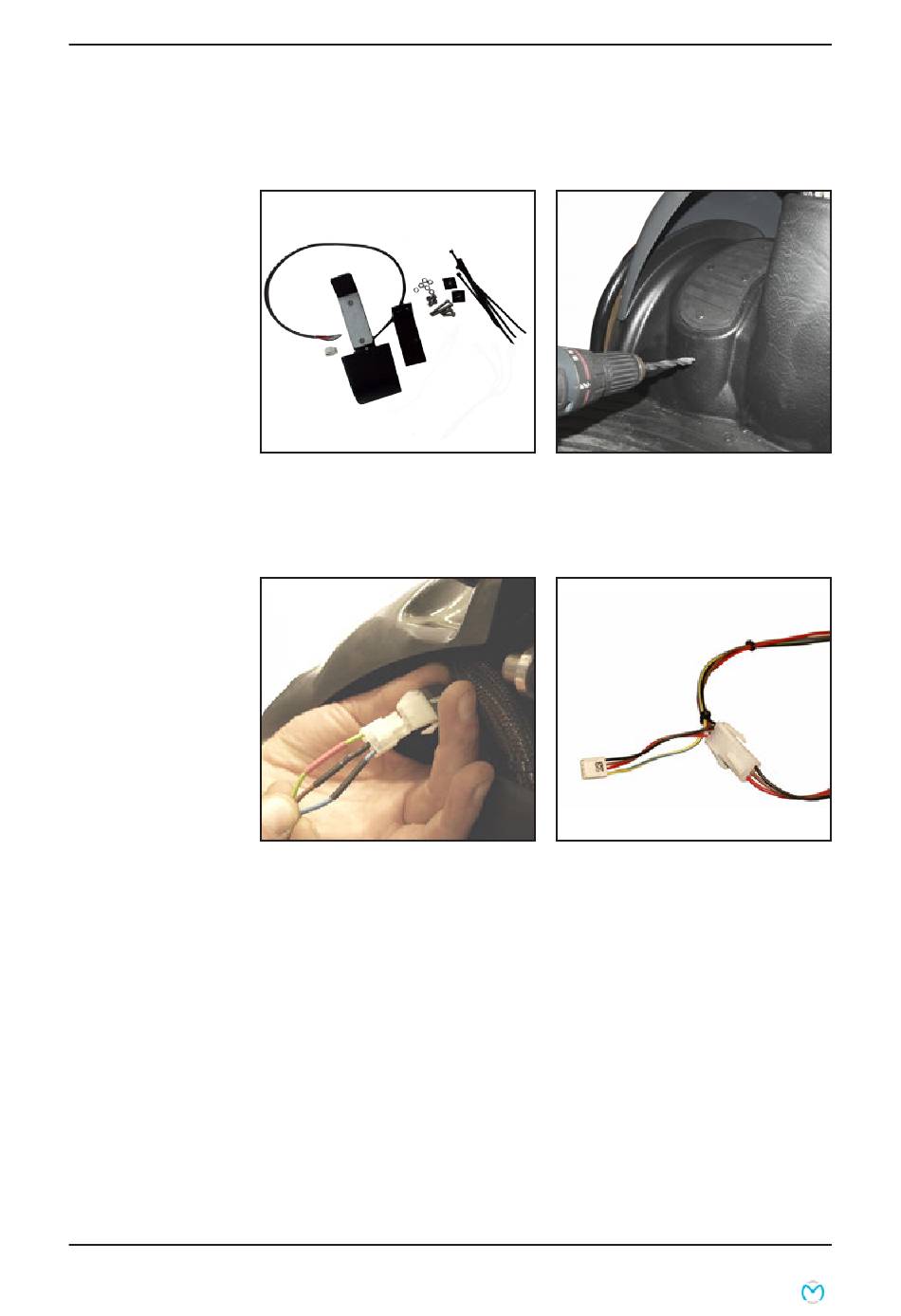

Complete foot pedal.
The foot throttle must be pulled through
the hole and up the steering column.
The accompanying plug must be
mounted as shown above.
The scooter's foot throttle plug (no. 4)
must be pulled forward (below the front
screen) and fitted to the foot throttle.
Decide where the foot throttle should
be fitted. Drill a 13mm hole for the foot
throttle cable. Lined with the rubber
lining provided.
The petrol plug in the controller must be
short-circuited with a jumper.
