Medema M1 Cabin User Manual

Mini crosser m1 cabin electric mobility scooter user guide
Hide thumbs Also See for M1 Cabin:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
medemagroup
medemagroup
GB
P9-0151-B ver. 2.0.1 - July 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1 Cabin and is the answer not in the manual?

Questions and answers

Related Manuals for Medema M1 Cabin

Summary of Contents for Medema M1 Cabin

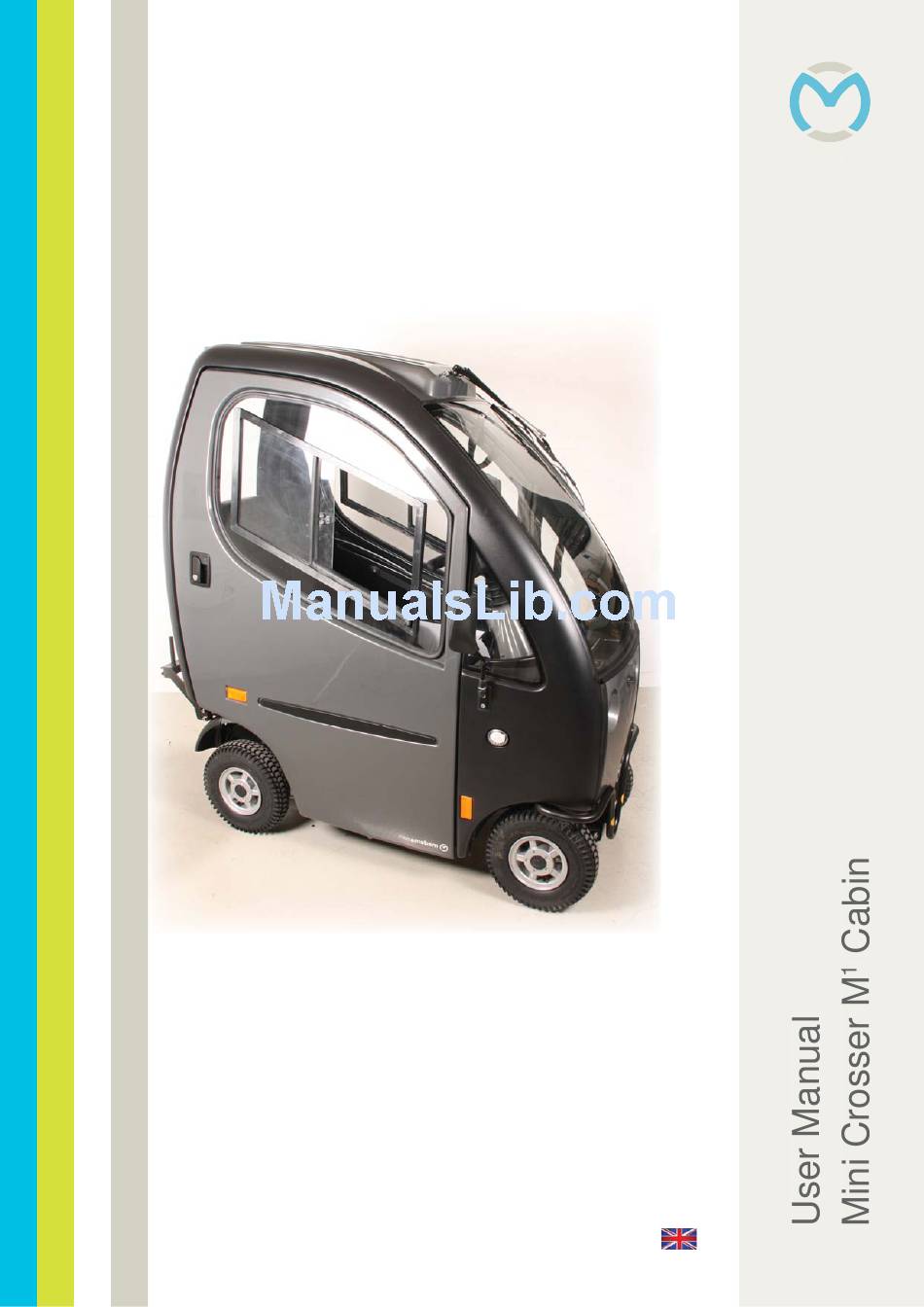

  • Page 1 medemagroup medemagroup P9-0151-B ver. 2.0.1 - July 2012...
  • Page 2 Medema Production A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: User guide P9-0151-B 2 of 52 Version 2.0.1/2012...

  • Page 3: Table Of Contents

    Preparations / Adjustments prior to use ......10 Seat rotation ................12 Steering column ..............13 Serial number................. 14 Driving the Mini Crosser M Cabin ........15 Specifi c driving situations ............ 20 Long hills/diffi cult ground ............ 22 Anti-tilt wheels / stabilisers ..........23 General care and maintenance ..........

  • Page 4: Symbols

    For safety reasons the vehicle must not be lent to persons who are not completely familiar with it. The vehicle is designed for one person only. The Mini Crosser M Cabin has been designed for users weighing max. 175 kg. The vehicle can be specially adapted at the factory for users weighing up to 200 kg.

  • Page 5: Introduction

    fi re. We offer a wide range of accessories for the Mini Crosser Cabin that can make everyday life easier for you. You are always welcome to contact us for further information on special accessories and adaptations.

  • Page 6: Declaration Of Conformity

    The product is risk analysed in accordance with the harmonized standard DS/EN ISO 14971:2007-04-10 2. edition - Medical devices - Application of risk management to medical devices. The Mini Crosser can, for a fee, be taken to the nearest dealer for disposal in accordance with current environmental regulations.

  • Page 7: Control Panel

    Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthorised opening, adjustment or modifi cation of the control panel.
  • Page 8 Medema Production A/S Air channel Windscreen wiper + washer Fresh-air/hot-air switch Heat regulation Accelerator (four-fi nger control) User guide P9-0151-B 8 of 52 Version 2.0.1/2012...
  • Page 9 Activate the arm at the front slowly and the Mini Crosser will start to move forwards. The more the arm is pressed, the faster the Mini Crosser will move. When the arm is released, it will fl ip back to starting position of its own accord and the Mini Crosser will stop.

  • Page 10: Preparations / Adjustments Prior To Use

    Medema Production A/S Preparations / Adjustments prior to use Adjusting the height of the seat Lift the seat off. Pull the release out and adjust the seat tube to the desired position. See the picture on the next page. Check that the seat height is correct and let go of the release.
  • Page 11 Medema Production A/S Seat tube Release Seat tube in top position. There are fi ve holes for adjusting the seat tube. The release must be in a hole for the seat to be stable. User guide P9-0151-B 11 of 52 Version 2.0.1/2012...

  • Page 12: Seat Rotation

    Medema Production A/S Seat rotation It is only possible to rotate the seat in a Mini Crosser with Cabin if both dors are open. Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45°...

  • Page 13: Steering Column

    Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out. The height of the steering column can be adjusted approx.

  • Page 14: Serial Number

    Medema Production A/S Serial number All vehicles have a serial number plate showing the year of production, month and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc.

  • Page 15: Driving The Mini Crosser M Cabin

    • Make sure that the Mini Crosser M Cabin is off (switch turned to 0) when getting in and out, otherwise the Mini Crosser could start if the accelerator was touched inadvertently. • Make sure that the brake is on. (Lever for disengaging motor in top position.)
  • Page 16 There is an electric safety feature in the control system, which works even if the battery is disconnected. This is also the reason why the Mini Crosser cannot be towed at more than 5 km/h. See the section about towing.
  • Page 17 ALWAYS switch the scooter off when it is not in use. Turn the key to 0. Driving Even though the Mini Crosser is very stable, it can tip over. Avoid sudden changes of speed and direction when travelling at high speed, on poor surfaces and, not least, on slopes.
  • Page 18 6 km/h. At speeds of up to 6 km/h the Mini Crosser is regarded as a “pedestrian”, and it is permissible to travel on the pavement at...
  • Page 19 Electromagnetic compatibility If the Mini Crosser starts making involuntary movements or if the brakes are released, turn the Mini Crosser off as soon as it is safe to do so. In certain circumstances a Mini Crosser can set off shop alarms.

  • Page 20: Specifi C Driving Situations

    Medema Production A/S Specifi c driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle. Do not stop halfway, but reduce speed once the vehicle is up.
  • Page 21 Medema Production A/S Up a ramp/hill • There is a risk of tipping over backwards if the seat is pushed back when you start driving up a slope, e.g. a ramp. • Pull the seat forward! Check that any ramp is stable. •...

  • Page 22: Long Hills/Diffi Cult Ground

    However, if you carry on moving over diffi cult ground, the Mini Crosser will at some stage stop completely, and the battery indicator will fl ash with 6 lamps. The Mini Crosser must be left to cool down for 3-5 minutes before it can start again.

  • Page 23: Anti-Tilt Wheels / Stabilisers

    Medema Production A/S Anti-tilt wheels / stabilisers The Mini Crosser M Cabin is a very stable vehicle. HOWEVER, in the case of incorrect weight distribution or careless driving there is a risk of tipping over. We therefore recommend fi tting anti-tilt wheels in such circumstances.

  • Page 24: General Care And Maintenance

    Test the brake disengagement function When the brake disengagement lever is down, the battery indicator should fl ash to show an error if the Mini Crosser is turned on. In this case the Mini Crosser must not be able to move when the accelerator is activated.

  • Page 25: Insurance

    15 km/h is a cycle, so separate insurance is not required. Most contents/home insurance policies include third-party liability insurance for cyclists and so also cover Mini Crosser M Cabin users. We recommend that you talk to your insurance company about this when the vehicle is delivered.

  • Page 26: Batteries

    Avoid draining the batteries completely. We recommend charging the batteries in a heated room. If it is not possible to do this every day, it is a good idea to charge the Mini Crosser in a heated room (approx. 20°C) once a week.
  • Page 27 For the same reason there must not be any burrs on the terminals. The Mini Crosser should be charged while not in use. The charger supplied from the factory switches over to trickle charging (very low power consumption) automatically when the batteries are fully charged.

  • Page 28: Battery Disposal

    Wipe the covers dry and polish with car wax. Rinse with a garden hose with a soft jet. IMPORTANT! Never use a high-pressure cleaner or hose, as it could damage the Mini Crosser’s electronics. User guide P9-0151-B 28 of 52...

  • Page 29: Fuel For Heater

    The tank for fuel is placed behind the seat, and fi lled from the outside. Use ONLY paraffi n or diesel. In the front, right side of the Mini Crosser M Cabin, you fi nd the the exhaustion from the heater.

  • Page 30: Windscreen Wiper / Washer

    Medema Production A/S IMPORTANT! The heating ribs by the window and by the legs should NOT be covered up when the heating is on. That will cause overheating of the heater Windscreen wiper / washer Start the windscreen wiper by turning this knob.

  • Page 31: Replacing The Wiper Blade

    Medema Production A/S Replacing the wiper blade To exchange the wiper blade, do the following: Screw this screw out. Lift carefully, so you can pull the wiper blade over the pin. Mount a new in reverse order. Replacing the bulb - headlight Open the front cover, by turning the handle 90°...
  • Page 32 Medema Production A/S Press down and turn counter clockwise.- and lift out. Now you have access to the bulb. take the bulb out. Mount a new in reverse order. NOTE! Be aware that drain list are not trapped when the front cover is closed.

  • Page 33: Changing The Wheels

    Tyres and inner tubes can be purchased from the authorised dealer who supplied the Mini Crosser. The Mini Crosser must be TURNED OFF before you start. Changing the wheels 5 mm Allen key •...

  • Page 34: Fuses

    Medema Production A/S Fuses The Mini Crosser M Cabin has the following protection systems: • Automatic overload protection, which limits the current to the motor. This protection is integral to the control system and cannot be adjusted. It prevents both the control system and the motor from being overloaded.
  • Page 35 Medema Production A/S Open the front cover, by turning the handle 90° counter clockwise, and pull. Under the front cover you will fi nd the fuse for the heater and windscreem wiper. Fuse for windscreen wiper. Fuse for heater. NOTE! Be aware that drain list are not trapped when the front cover is closed.

  • Page 36: Brakes

    There is an electric safety feature in the control system, which works even if the battery is disconnected. This is also the reason why the Mini Crosser cannot be towed at more than 5 km/h. See the section about towing.

  • Page 37: Disengagement

    (normal driving now possible). Disengagement lever Transporting The Mini Crosser m Cabin must always be restrained and the handbrake locked during transport. Avoid lifting by the covers. If you just need to lift the scooter slightly, take hold of the rear bumper and the front bumper.

  • Page 38: Securing To Vehicle Fl Oor With Belts

    Medema Production A/S Securing to vehicle fl oor with belts Dahl Engineering belt set for securing in motor vehicles. Item No. C2-0242 ALWAYS use four belts at the back and two at the front. The belts must always be attached to approved fi ttings in the vehicle and the four eyes welded to the scooter.
  • Page 39 Medema Production A/S Attachment point Attachment point Greater than the anchorage points on the Greater than scooter the anchorage Centre line points on the scooter User guide P9-0151-B 39 of 52 Version 2.0.1/2012...

  • Page 40: Transporting By Plane

    See the section on Brakes. If the Mini Crosser is to be towed, secure a rope to the tow fi tting on the front - marked with a yellow “hook mark”. Do not tow faster than 5 km/h.

  • Page 41: Dimensioned Drawing, Mini Crosser M Cabin

    Medema Production A/S Dimensioned drawing, Mini Crosser M Cabin 1030 mm 1610 mm User guide P9-0151-B 41 of 52 Version 2.0.1/2012...

  • Page 42: Introduction To Seats - Ergo Standard

    Medema Production A/S Introduction to seats - Ergo Standard Lever for seat rotation Pull the lever back to release the seat. The seat can then be turned 90° to either side with a stop every 45°. The lever is spring-loaded and the seat locks automatically when the lever is released.
  • Page 43 Medema Production A/S Adjusting the angle of the backrest The angle of the backrest can be adjusted by about 30°. This can be done by undoing the adjusting screw and changing the position of the spacer. Do the screw up again after making the adjustment.

  • Page 44: Introduction To Seats - Mando

    Medema Production A/S Introduction to seats - Mando Adjusting the angle of the backrest: The angle of the backrest can be adjusted by about 30° by raising this lever. Adjusting the angle of the armrest: The angle of the armrest can be adjusted by turning this screw.

  • Page 45: Troubleshooting

    The following is a list of various problems that, in our experience, may occur. The list gives possible causes and remedies. Problem Possible causes Remedy The Mini Crosser will not The key has not been Turn the key and wait 5 turned to start. sec. before activating the accelerator.
  • Page 46 7 lamps Accelerator fault. Make sure that the accelerator is in neutral when the Mini Crosser is turned on. 8 lamps Controller fault. Contact supplier. User guide P9-0151-B 46 of 52 Version 2.0.1/2012...

  • Page 47: Programming

    Charger is connected. Remove charger. lights Programming NOTE! For safety reasons, modifi cations may only be made by trained personnel, such as Mini Crosser service engineers and consultants or authorised service personnel at mobility centres, etc. Technical data Technical data Cabin...
  • Page 48 Medema Production A/S Technical data Cabin Max user weight inc. assessories HD version. 200 kg Wheels M-127-3-165 4,1 bar 13x5.00-6” ext. Ø325 mm Wheel Norway black - T, E, Nordic, MaxX, MaxX HD and M-model M-127-3-165P 4,1 bar 13x5.00-6” ext. Ø325 mm Wheel Norway black w/spikes - T, E, Nordic, MaxX, MaxX HD and M-model M-127-3-065...
  • Page 49 Medema Production A/S Technical data Cabin Angle of backrest Ergo Standard / HD (manuel) Ca. -5° to +20° Ergo Standard / HD (EL) Ca. -5° to +30° Spinalus Ca. -5° to +20° Mando Ca.+5° to +30° Ergo child / junior Ca.

  • Page 50: International Addresses

    Medema Production A/S International addresses Australia / New Zealand Germany Pride Mobility Products Baden Württemberg Bavaria Tel: +61 3 9706-4611 Draisin GmbH Fax: +61 3 9706-4622 Tel: (+49) 0 78 41 66 77 0 Email: prideaustralia@pride-mobility.com.au Fax: (+49) 0 78 41 66 77 88 Internet: www.pridemobility.com/international/Australia/australia.asp Email: info@draisin.com Internet: www.draisin.com/...
  • Page 51 Email: info@vanseenus.nl Email: info@turbo-twist.ch Internet: www.vanseenus.nl Internet: www.turbo-twist.ch Island Icepharma HF Mini Crosser Ltd Tel: +354 540 8000 Tel: Sales +(44) 0800 043 0029 Fax: +354 540 8001 Tel: Service & Warranty +(44) 0800 169 9588 Email: icepharma@icepharma.is Email: sales@mini-crosser.co.uk Internet: www.icepharma.is...
  • Page 52 medemagroup...
