medemagroup
medemagroup
GB
P9-0155-B ver. 2.0.4 - July 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobility Scooter and is the answer not in the manual?

Questions and answers

Related Manuals for Medema Mobility Scooter

Summary of Contents for Medema Mobility Scooter

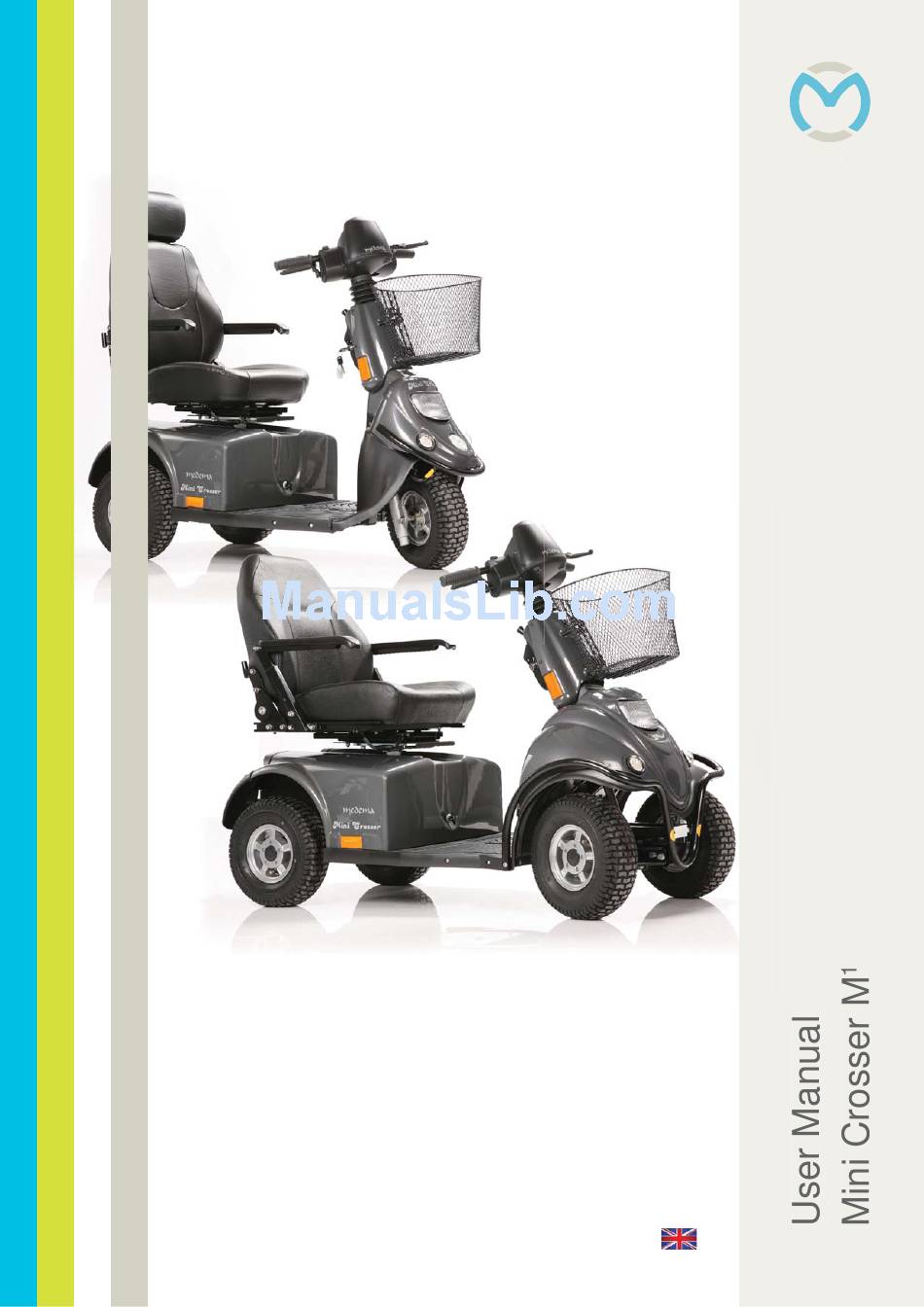

  • Page 1 medemagroup medemagroup P9-0155-B ver. 2.0.4 - July 2012...
  • Page 2 Medema Production A/S Serial number: ___-______________-______-_______ Delivery date: ________________ Year 20______ This vehicle was supplied by: Date: User guide P9-0155-B 2 of 52 Version 2.0.4/2012...

  • Page 3: Table Of Contents

    Medema Production A/S Contents Symbols.................. 4 Warning! ................. 4 Contagion! ................4 Introduction ................5 Declaration of conformity ............. 6 Control panel ................. 7 Preparations / Adjustments prior to use ......9 Electric seat adjustment ............10 Seat rotation ................11 Steering column ..............

  • Page 4: Symbols

    Contagion! Note! The tires can sometimes rub off on fl oor coverings, particularly linoleum. Medema Production assumes no responsibility in case of contagion. To prevent this, we recommend that you protect delicate fl oors with some sort of driving surface.

  • Page 5: Introduction

    Congratulations on your new Mini Crosser M electric mobility scooter. You have now taken possession of an electric mobility scooter developed for outdoor driving by active users. It is what is called a Class C vehicle in accordance with the European classifi...

  • Page 6: Declaration Of Conformity

    Medema Production A/S Declaration of conformity Medema Production A/S hereby declares that: Machine: Mini Crosser Use: (Prescribed use in User Manual) Model No: Complies with the Medical Device Directive 93/42/EEC The product is made in accordance with the harmonized standard EN 12184 - Electrically powered wheelchairs, scooters and their chargers.

  • Page 7: Control Panel

    Medema Production A/S Control panel Avoid subjecting the control panel to jarring and knocks. Take care when driving and avoid hitting obstacles. The manufacturer accepts no liability in respect of the unauthorised opening, adjustment or modifi cation of the control panel.
  • Page 8 Medema Production A/S Designation Description Key switch To start the vehicle: Turn the key to driving position (1) When the Mini Crosser is turned on, the control system performs a safety check of the electrical system. The check lasts half a second. If the accelerator is operated during this time, the Mini Crosser will not be able to move until you have turned the key to 0 and back to 1.

  • Page 9: Preparations / Adjustments Prior To Use

    Medema Production A/S Preparations / Adjustments prior to use Adjusting the height of the seat Lift the seat off and remove the rear cover. Pull the release out and adjust the seat tube to the desired position. See the picture on the next page.

  • Page 10: Electric Seat Adjustment

    Medema Production A/S Seat tube Release Seat tube in top position. There are fi ve holes for adjusting the seat tube. The release must be in a hole for the seat to be stable. Electric seat adjustment The Mini Crosser can be fi tted with electric seat adjustment as an optional extra.

  • Page 11: Seat Rotation

    Medema Production A/S Seat rotation Pull the release lever back. The seat can be rotated 90° to either side. When the lever is released, it engages with the seat and holds it in place at 45° intervals. Other seats that can be supplied for the Mini Crosser work on similar principles.

  • Page 12: Steering Column

    Medema Production A/S Steering column Can be adjusted forward/back with the release lever. Pull down on the lever and pull the handlebars closer for a good driving position. Use the lever again and push the steering column forward to make it easier to get out.

  • Page 13: Serial Number

    Medema Production A/S Serial number All vehicles have a serial number plate showing the year of production and serial number. The same serial number can also be found on the front of the User Manual. Please quote this number when making inquiries about servicing, spare parts, etc.

  • Page 14: Driving The Mini Crosser M

    Medema Production A/S Driving the Mini Crosser M Getting in and out It is important to learn a safe technique for getting in and out of the Mini Crosser. In general the following method should be followed: • Make sure that the Mini Crosser M...
  • Page 15 Medema Production A/S Braking systems There are three braking systems on the Mini Crosser: • Motor brake - adjusts vehicle speed also when going downhill. • Magnetic brake - the magnetic brake is automatic and engages when the Mini Crosser stops. In an emergency, the Mini Crosser can be stopped instantaneously by turning the key switch.
  • Page 16 Medema Production A/S Adjust your driving to road conditions. Take account of light, traffi c and weather. Be particularly careful when driving in the dark or in bad weather, such as rain or snow. Avoid driving on gradients with poor surfaces, such as: snow, ice, new-mown grass, wet grass and wet leaves.
  • Page 17 Medema Production A/S Anti-tilt wheels are recommended for driving in very hilly terrain. (Optional extra) New users are urged to practise the following in an area where there is no other traffi c: • Set the Mini Crosser to low speed. Drive forwards and backwards.
  • Page 18 Medema Production A/S The following rules apply in Denmark: Mobility vehicles such as the Mini Crosser with a maximum speed of up to 15 km/h count as cycles in traffi c legislation and the traffi c regulations for cycles must be followed at speeds in excess of 6 km/h.
  • Page 19 Medema Production A/S Electromagnetic compatibility If the Mini Crosser starts making involuntary movements or if the brakes are released, turn the Mini Crosser off as soon as it is safe to do so. In certain circumstances a Mini Crosser can set off shop alarms.

  • Page 20: Specifi C Driving Situations

    Medema Production A/S Specifi c driving situations Up kerbs • Stop at right angles to the kerbstone about 5-10 cm away from it. Keep an eye on other road users. • Lean forwards. • Accelerate moderately so that your vehicle can overcome the obstacle.
  • Page 21 Medema Production A/S Up a ramp/hill • There is a risk of tipping over backwards if the seat is pushed back when you start driving up a slope, e.g. a ramp. • Pull the seat forward! Check that any ramp is stable.

  • Page 22: Long Hills/Diffi Cult Ground

    Medema Production A/S Across a slope • Lean into the slope. • Avoid sudden and sharp movements. This is particularly relevant when reversing. • Always drive at low speed. Long hills/diffi cult ground The Mini Crosser is at risk of overheating on very long and steep hills or on very soft ground, possibly also combined with high user weight.

  • Page 23: Anti-Tilt Wheels / Stabilisers

    Medema Production A/S Anti-tilt wheels / stabilisers The Mini Crosser is a very stable vehicle. HOWEVER, in the case of incorrect weight distribution or careless driving there is a risk of tipping over. We therefore recommend fi tting anti-tilt wheels in such circumstances.

  • Page 24: General Care And Maintenance

    Medema Production A/S General care and maintenance A Mini Crosser M does not require much maintenance. It should be kept in a generally good condition, however. The following should be checked regularly: • Tyre pressure (if pneumatic tyres are fi tted) •...

  • Page 25: Insurance

    Medema Production A/S Annual The Mini Crosser M is designed for safe travel for at least 10 years, up to a max. of 5,000 hours, provided it is serviced and safety-checked every year, corresponding to 500 hours of operation. The service must be carried out by an authorised workshop.

  • Page 26: Batteries

    Medema Production A/S Batteries The Mini Crosser uses sealed, maintenance-free GEL batteries (Exide 12 V/56 Ah or AGM 12 V/71 Ah). They do not generate gas and do not have to be topped up with water. Charging Please NOTE that the Mini Crosser can be equipped with several types of charger (ask your dealer for information on the various types).
  • Page 27 Medema Production A/S New batteries do not reach full capacity until they have been charged and discharged about 20 times. It is IMPORTANT to fi t the batteries correctly. The battery terminals and snap locks are marked +/-. They must be fi tted as shown in the sketch below.

  • Page 28: Battery Disposal

    Take care when handling leaky batteries, as the gel contains corrosive acid. INFO! New batteries can be purchased from Medema Danmark A/S. Storage The scooter should be stored and charged under cover, preferably at temperatures above 0°C.

  • Page 29: Changing The Wheels

    Medema Production A/S Changing the wheels If you get a puncture in one of the pneumatic tyres or if a tyre is so badly worn that it needs to be replaced, follow the instructions below. Tyres and inner tubes can be purchased from the authorised dealer who supplied the Mini Crosser.

  • Page 30: Fuses

    Medema Production A/S Fuses The Mini Crosser has the following protection systems: • Automatic overload protection, which limits the current to the motor. This protection is integral to the control system and cannot be adjusted. It prevents both the control system and the motor from being overloaded.

  • Page 31: Brakes

    Medema Production A/S Brakes There are three braking systems on the Mini Crosser M: • Motor brake • Magnetic brake • Handbrake • Motor brake: adjusts vehicle speed also when going downhill. • Magnetic brake: automatic and comes on when accelerator is released.

  • Page 32: Disengagement

    Medema Production A/S Disengagement • Turn the key to (0) position. • Push the disengagement lever at the back down. The motor brake is now disengaged and the vehicle can be pushed or towed, but not driven. NOTE! The motor brake must never be disengaged on sloping terrain.

  • Page 33: Transporting By Motor Vehicle

    Medema Production A/S Transporting by motor vehicle The Mini Crosser must always be restrained and the handbrake locked during transport in a motor vehicle or trailer. Avoid lifting by the seat, covers, handlebars and armrests If you just need to lift the scooter slightly, take hold of it between the rear lights and by the front bumper.

  • Page 34: Securing To Vehicle Fl Oor With Belts

    Medema Production A/S Securing to vehicle fl oor with belts Dahl Engineering belt set for securing in motor vehicles. Item No. C2-0242 ALWAYS use four belts at the back and two at the front. The belts must always be attached to approved fi ttings in the vehicle and the four eyes welded to the scooter.
  • Page 35 Medema Production A/S Attachment point Attachment point Greater than the anchorage points on the Greater than scooter the anchorage Centre line points on the scooter User guide P9-0155-B 35 of 52 Version 2.0.4/2012...
  • Page 36 Medema Production A/S For transport in an estate car, the seat can be lifted off and the handlebars folded down. This reduces the maximum height to 69 cm. The Mini Crosser can be used as a seat during transport in...

  • Page 37: Transporting By Plane

    Medema Production A/S Remember to turn the Mini Crosser off during transport. Turn the key to 0. However, if at all possible, we recommend that the user occupies one of the seats in the motor vehicle. All other things being equal, this is safer.

  • Page 38: Dimensioned Drawing, Mini Crosser M 1 3W

    Medema Production A/S Dimensioned drawing, Mini Crosser M : 305 mm : 225 mm 980 mm 1340 mm User guide P9-0155-B 38 of 52 Version 2.0.4/2012...

  • Page 39: Dimensioned Drawing, Mini Crosser M 1 4W

    Medema Production A/S Dimensioned drawing, Mini Crosser M : 370 mm : 290 mm 1030 mm 1400 mm User guide P9-0155-B 39 of 52 Version 2.0.4/2012...

  • Page 40: Introduction To Seats - Ergo Standard

    Medema Production A/S Introduction to seats - Ergo Standard Lever for seat rotation Pull the lever back to release the seat. The seat can then be turned 90° to either side with a stop every 45°. The lever is spring-loaded and the seat locks automatically when the lever is released.
  • Page 41 Medema Production A/S Adjusting the angle of the backrest The angle of the backrest can be adjusted by about 30°. This can be done by undoing the adjusting screw and changing the position of the spacer. Do the screw up again after making the adjustment.

  • Page 42: Introduction To Seats - Mando

    Medema Production A/S Introduction to seats - Mando Adjusting the angle of the backrest: The angle of the backrest can be adjusted by about 30° by raising this lever. Adjusting the angle of the armrest: The angle of the armrest can be adjusted by turning this screw.

  • Page 43: Troubleshooting

    Medema Production A/S Troubleshooting The following is a list of various problems that, in our experience, may occur. The list gives possible causes and remedies. Problem Possible causes Remedy The Mini Crosser will not The key has not been Turn the key and wait 5 turned to start.
  • Page 44 Medema Production A/S Problem Possible causes Remedy The “ready” lamp on the There has been a power Reconnect the charger charger does not light up cut. and repeat the charging even though the charger process. has been on for 10-12...
  • Page 45 Medema Production A/S If there is an electronic fault, a number of lamps in the battery indicator will light up. The following table shows what they mean. Lamps Causes Remedy 1 lamp The batteries need Check all connections charging or the...

  • Page 46: Programming

    Medema Production A/S Programming NOTE! For safety reasons, modifi cations may only be made by trained personnel, such as Mini Crosser service engineers and consultants or authorised service personnel at mobility centres, etc. Technical data General information: Transport height without seat...
  • Page 47 Medema Production A/S M-127-3-065 3,5 bar 3,5 bar 13x3.00-8” ext. Ø340 mm Wheel black - T and M-model T-127-3-068 13x3.00-8” ext. Ø340 mm Wheel black puncture free - T and M-model Classifi cation, ISO Class C Class C Seats: Effective seat width:...
  • Page 48 Medema Production A/S 110/115 Ah batteries Option Option Maximum driving distance with new 80 km 75 km batteries at +20° on fl at, fi rm surface Optimum battery capacity is reached after approx. 20 charges / discharges. Battery type: Standard:...

  • Page 49: Own Notes
