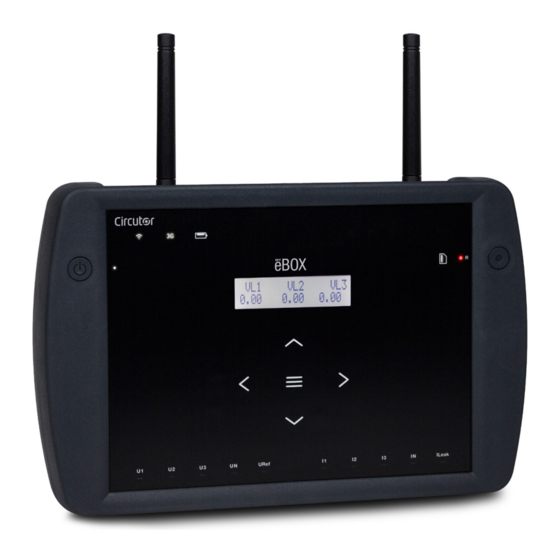

Circutor MYeBOX 150 Instruction Manual

Portable power analyzer
Hide thumbs Also See for MYeBOX 150:
Table of Contents

Advertisement

Quick Links

Download this manual

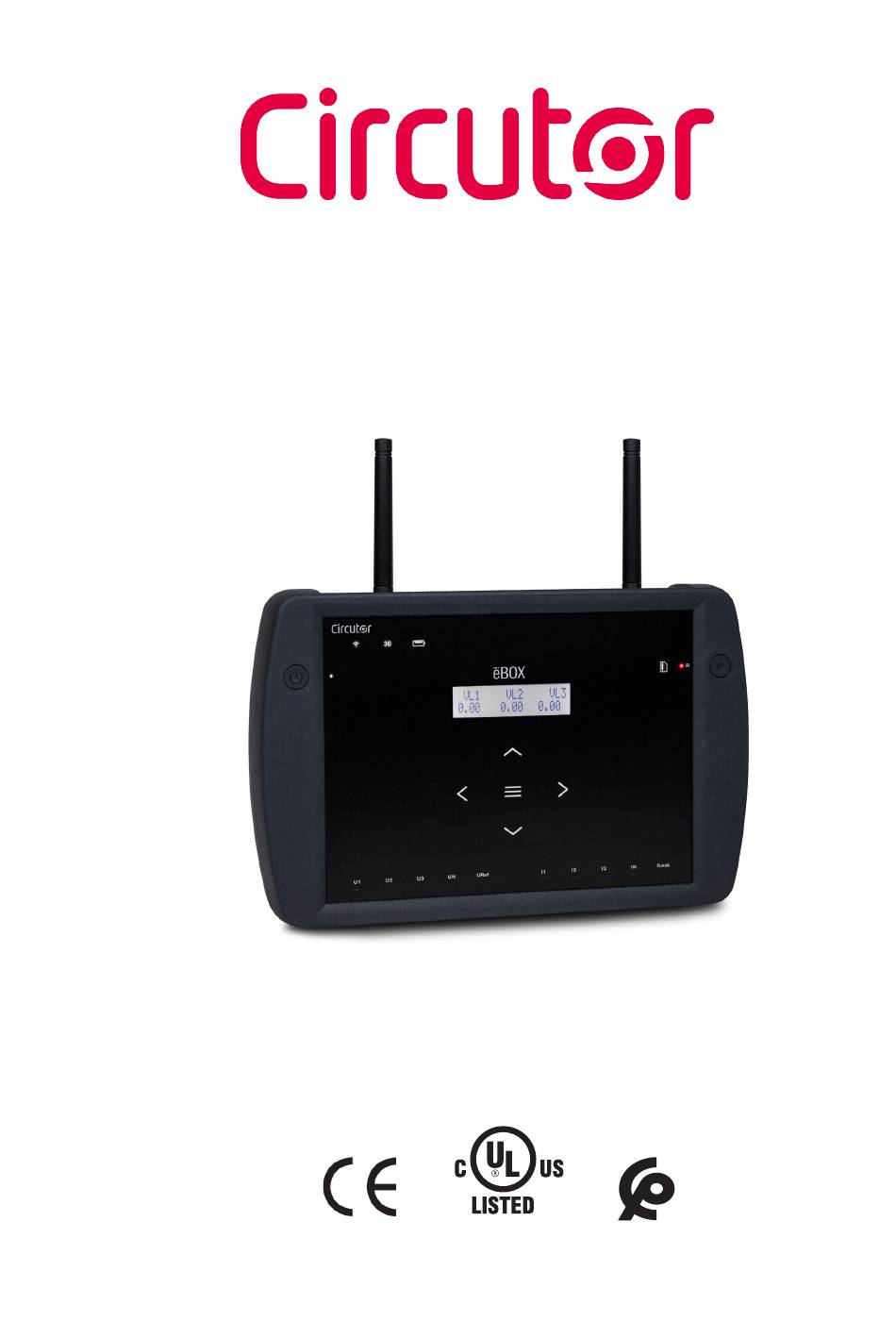

Portable power analyzer
MYeBOX 150, MYeBOX 1500
INSTRUCTION MANUAL
(M084B01-03-19A)
MEASURING EQUIPMENT
E237816

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYeBOX 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Circutor MYeBOX 150

Summary of Contents for Circutor MYeBOX 150

  • Page 1 Portable power analyzer MYeBOX 150, MYeBOX 1500 INSTRUCTION MANUAL (M084B01-03-19A) MEASURING EQUIPMENT E237816...
  • Page 2 MYeBOX 150 - MYeBOX 1500 Instruction Manual...

  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to modify features or the product manual without prior notifi cation. DISCLAIMER CIRCUTOR, SA reserves the right to make modifi cations to the device or the unit specifi ca- tions set out in this instruction manual without prior notice.

  • Page 4: Table Of Contents

    3�7�2�- MYeBOX 1500 �����������������������������������������������������������������������������������������������������������������������������������18 3�8�- CONNECTION DIAGRAMS ��������������������������������������������������������������������������������������������������������������������20 3�8�1�- THREE-PHASE NETWORK MEASURING WITH A 4-WIRE CONNECTION, MYeBOX 150� ���������20 3�8�2�- THREE-PHASE NETWORK MEASURING WITH A 4-WIRE CONNECTION, MYeBOX 1500� �������21 3�8�3�- THREE-PHASE NETWORK MEASURING WITH A 3-WIRE CONNECTION, MYeBOX 150 AND MYeBOX1500�...
  • Page 5 MYeBOX 150 - MYeBOX 1500 6�1�- SETUP MENU: MEASURE SETUP ��������������������������������������������������������������������������������������������������������� 61 6�1�1�- RATED VOLTAGE ����������������������������������������������������������������������������������������������������������������������������� 61 6�1�2�- PRIMARY VOLTAGE ������������������������������������������������������������������������������������������������������������������������� 62 6�1�3�- SECONDARY VOLTAGE������������������������������������������������������������������������������������������������������������������� 62 6�1�4�- PHASE CLAMP SCALE ������������������������������������������������������������������������������������������������������������������� 63 6�1�5�- PRIMARY WINDING OF THE CURRENT TRANSFORMER ����������������������������������������������������������� 63 6�1�6�- NEUTRAL CLAMP SCALE �������������������������������������������������������������������������������������������������������������...

  • Page 6: Revision Log

    MYeBOX 150 - MYeBOX 1500 REVISION LOG Table 1: Revision log� Date Revision Description 10/16 M084B01-03-15A Initial Version Changes in the following sections: 11/16 M084B01-03-16A 1. - 3.2. - 3.5. - 11. Changes in the following sections: 10/17 M084B01-03-17A 3.2. - 3.5. - 3.8. - 4.2. - 4.2.1. - 4.5.2. - 4.8.2.3. - 5.6. - 6.1.- 6.3.4. - 11.- 14.

  • Page 7: 1�- Verification Upon Reception

    - 1 μUSB cable. - MYeBOX markers in 9 colours. - Wireless connector for the transistor's digital inputs/outputs Kit A_MYeBOX 1500 Kit MYeBOX 150 and Kit MYeBOX 1500: - An installation guide. - 1 battery. - 1 AC power supply adaptor.

  • Page 8: 2�- Product Description

    MYeBOX 150 - MYeBOX 1500 2�- PRODUCT DESCRIPTION MYeBOX is a portable analyzer that measures, calculates and displays the main parameters of any electrical installation (single-phase, two-phase with and without neutral, balanced or unbal- anced three-phase and through an ARON connection) MYeBOX can be fully configured remotely and can display electrical parameters on a smart- phone or tablet using a mobile application connected to a Wi-Fi network.
  • Page 9 MYeBOX 150 - MYeBOX 1500 - 1 μUSB connector to connect and download data to a PC. The MYeBOX mobile application lets you fully program the MYeBOX remotely, configure the measurement, display the most important parameters and send logs to MYeBOX Cloud.

  • Page 10: 3�- Device Installation

    MYeBOX 150 - MYeBOX 1500 3�- DEVICE INSTALLATION 3.1.- PRELIMINARY RECOMMENDATIONS In order to use the device safely, it is essential that the individuals who handle it follow the safety measures set out in the standards of the country where it is be-...

  • Page 11: 3�2�- Battery Installation

    MYeBOX 150 - MYeBOX 1500 3.2.- BATTERY INSTALLATION Do not disassemble or modify the battery. The warranty does not cover any battery not delivered by Circutor or batteries that have been disassembled or modified. There is a risk of explosion if installed incorrectly.
  • Page 12 MYeBOX 150 - MYeBOX 1500 Figure 2:Removal of the battery cover� Connect the battery, Figure 3 Figure 3:Connect the battery� Insert the connection cable inside the battery cover, Figure 4 Figure 4:Insert the connection cable inside the battery cover� Insert the battery into its correct position and replace the cover. ( Figure 5 Be careful not to pinch the battery cables when inserting it.

  • Page 13: 3�3�- Installation

    MYeBOX 150 - MYeBOX 1500 Figure 5: Inserting the battery� Disconnect the battery if the device is going to be idle for more than 3 months. If the device has been without power for more than 4 weeks, it is recommended to load a few hours before use.

  • Page 14: 3�4�- Myebox 480V ~ Psu Adapter : Power Supply Adapter

    MYeBOX 150 - MYeBOX 1500 To install the strap on the device, follow these steps: Figure 7: Installation of the fastening strap: Steps 1 and 2� Figure 8: Installation of the fastening strap: Steps 3 and 4� 3.4.- MYeBOX 480V ~ PSU ADAPTER : POWER SUPPLY ADAPTER Note : The MYeBOX 480V ~ power supply adapter is an accessory sold separately.
  • Page 15 MYeBOX 150 - MYeBOX 1500 Table 3 (Continuation): MYeBOX 480V~ PSU ADAPTER Technical features� Output Environmental features Operating temperature 0ºC ... +40ºC Storage temperature -20ºC ... +70ºC Relative Humidity (non-condensing) 5 ... 95 % Maximum altitude 2000 m Protection degree...

  • Page 16: 3�5�- Voltage Cables

    MYeBOX 150 - MYeBOX 1500 3.5.- VOLTAGE CABLES To measure voltage, you must use 600 V CAT III double-insulated connection cables. The Kit B_MYeBOX 150 and Kit B_MYeBOX 1500 kits come with the necessary cables: - UL 600 V CAT III double-insulated voltage cables, or higher.

  • Page 17: 3�7�- Device Terminals

    EEPROM in order for them to work. 3.7.- DEVICE TERMINALS 3�7�1�- MYeBOX 150 Table 7:List of terminals on the lower face of the MYeBOX 150� Device terminals on the lower face of the MYeBOX 150 1: U1, Voltage input L1...

  • Page 18: 3�7�2�- Myebox 1500

    MYeBOX 150 - MYeBOX 1500 Table 8:List of terminals on the upper face of the MYeBOX 150� Device terminals on the upper face of the MYeBOX 150 9: Power Supply, auxiliary power supply. 10: μUSB, μUSB connector. Figure 11:MYeBOX 150 terminals, upper face�...
  • Page 19 MYeBOX 150 - MYeBOX 1500 Figure 13:MYeBOX 1500 terminals, upper face� Instruction Manual...

  • Page 20: 3�8�- Connection Diagrams

    ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 150 U2 U3 CARGA / LOAD Figure 14: Three-phase measuring with a 4-wire connection (MYeBOX 150)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” See “5.2.- DISPLAY MENU: DEVICE PROFILE” Instruction Manual...

  • Page 21: 3�8�2�- Three-Phase Network Measuring With A 4-Wire Connection, Myebox 1500

    MYeBOX 150 - MYeBOX 1500 3�8�2�- THREE-PHASE NETWORK MEASURING WITH A 4-WIRE CONNECTION, MYeBOX 1500� Type of installation (Select circuit) : 3 Phases + Neutral. ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 1500 U2 U3 URef CARGA / LOAD Figure 15: Three-phase measuring with a 4-wire connection (MYeBOX 1500)�...
  • Page 22 POWER SUPPLY eBOX 150 U2 U3 CARGA / LOAD Figure 16: Three-phase measuring with a 3-wire connection (MYeBOX 150, MYeBOX 1500)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” See “5.2.- DISPLAY MENU: DEVICE PROFILE” Instruction Manual...

  • Page 23: 3�8�4�- Three-Phase Network Measuring With A 3-Wire Connection And Aron Connec

    150 U2 U3 CARGA / LOAD Figure 17: Three-phase measuring with a 3-wire connection and an ARON connection (MYeBOX 150, MYeBOX 1500)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” See “5.2.- DISPLAY MENU: DEVICE PROFILE”...

  • Page 24: 3�8�5�- Two-Phase Network Measuring With A 3-Wire Connection Myebox 150

    : 2 Phases + Neutral. ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 150 CARGA / LOAD Figure 18: Two-phase measuring with a 3-wire connection (MYeBOX 150)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” See “5.2.- DISPLAY MENU: DEVICE PROFILE” Instruction Manual...

  • Page 25: 3�8�6�- Two-Phase Network Measuring With A 3-Wire Connection Myebox 1500

    MYeBOX 150 - MYeBOX 1500 3�8�6�- TWO-PHASE NETWORK MEASURING WITH A 3-WIRE CONNECTION, MYeBOX 1500� Type of installation (Select circuit) : 2 Phases + Neutral. ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 1500 URef CARGA / LOAD Figure 19: Two-phase measuring with a 3-wire connection (MYeBOX 1500)�...

  • Page 26: 3�8�7� - Single-Phase Network Measurement, Phase To Phase, With A 2-Wire Connec

    ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 150 CARGA / LOAD Figure 20: Single-phase measurement, phase to neutral, with a 2-wire connection (MYeBOX 150, MYeBOX 1500)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” See “5.2.- DISPLAY MENU: DEVICE PROFILE”...

  • Page 27: 3�8�8�- Single-Phase Network Measurement, Phase To Neutral, With A 2-Wire Connec

    ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 150 CARGA / LOAD Figure 21: Single-phase measurement, phase to neutral, with a 2-wire connection (MYeBOX 150)� Note: See section “ 3.8.10.- DETAIL OF THE CURRENT MEASUREMENT CONNECTION.” (10) See “5.2.- DISPLAY MENU: DEVICE PROFILE”...

  • Page 28: 3�8�9�- Single-Phase Network Measurement, Phase To Neutral, With A 2-Wire Connec

    MYeBOX 150 - MYeBOX 1500 3�8�9�- SINGLE-PHASE NETWORK MEASUREMENT, PHASE TO NEUTRAL, WITH A 2-WIRE CONNECTION, MYeBOX 1500� Type of installation (Select circuit) : 1 Phase + Neutral. (11) ALIMENTACIÓN AUXILIAR POWER SUPPLY eBOX 1500 URef CARGA / LOAD Figure 22: Single-phase measurement, phase to neutral, with a 2-wire connection (MYeBOX 1500)�...

  • Page 29: 3�8�10�- Detail Of The Current Measurement Connection

    MYeBOX 150 - MYeBOX 1500 3�8�10�- DETAIL OF THE CURRENT MEASUREMENT CONNECTION� eBOX 1500 Figure 23: Detail of the current measurement connection� 3�8�11�- LEAKAGE CURRENT CONNECTION, ILeak� (MYeBOX 1500 MODEL) ILeak CARGA /LOAD Figure 24: Connection of the leakage current, ILeak (MYeBOX 1500)�...

  • Page 30: 3�9�- Registering And Updating The Device

    MYeBOX 150 - MYeBOX 1500 3.9.- REGISTERING AND UPDATING THE DEVICE Before using the device for the first time, it is necessary to: 1�- Register the MYeBOX on the web page www�myebox�es 2�- Register the device on a network with Internet connection.

  • Page 31: 4�- Operation

    MYeBOX 150 - MYeBOX 1500 4�- OPERATION 4.1.- OPERATING PRINCIPLE The MYeBOX is a four-quadrant portable power analyzer (consumption and generation). 90º kW + kW - kvarL PF - PF + kvarC kvar + Cos φ - kvar - Cos φ + 180º...

  • Page 32: 4�2�- Measurement Parameters

    MYeBOX 150 - MYeBOX 1500 4.2.- MEASUREMENT PARAMETERS The device measures and logs different types of parameters:  Electrical parameters,  Quality parameters (EVQ) such as overvoltages, gaps and outages, in accordance with EN50160.  Wave shapes of the different channels.

  • Page 33: 4�2�1�- Quality Parameters

    MYeBOX 150 - MYeBOX 1500 Table 11 (Continued): MYeBOX measurement parameters� Parameter Units Tariff: T1-T2 No. of hours of active tariff hours (12)  Cost COST (12)  Emissions kgCO (12)  Parameters shown on the device's display. (12) 4�2�1�- QUALITY PARAMETERS Power quality control requires defining the TRMS of the voltage level, subsequently used by the analyzer to record events.
  • Page 34 MYeBOX 150 - MYeBOX 1500  Transients Transients are detected by checking that the difference between one sample and the next does not exceed the maximum nominal slope value multiplied by the distortion level coefficient se- lected by the user (“...

  • Page 35: 4�3�- Keypad Functions

    MYeBOX 150 - MYeBOX 1500 Figure 30:Transients detected with a distortion coefficient of 90.0. 4.3.- KEYPAD FUNCTIONS The MYeBOX has 5 capacitive keys and 2 buttons: Table 12: Button functions� Button Press Device on/off button. Data logging start/end button. When the device's off button is pressed, the screen shown in...

  • Page 36: 4�4�- Display

    MYeBOX 150 - MYeBOX 1500 Table 13: Key functions: Display menus� Press Go to the previous display screen. Go to the next display screen. Access the display menu. Access the setup menu from the Setup menu Go to the next display menu.

  • Page 37: 4�5�- Led Indicators

    MYeBOX 150 - MYeBOX 1500 4.5.- LED INDICATORS 4�5�1�- MYeBOX 150� The MYeBOX 150 model has 14 indicator LEDs, as shown in Figure 34 Table 15 Memory Battery DATE TIME 25/06/2015 15:07:50 Figure 34:MYeBOX 150 indicator LEDs� Table 15: LED description, MYeBOX 150�...
  • Page 38 MYeBOX 150 - MYeBOX 1500 Table 15 (Continued): LED description, MYeBOX 150� Description Power on Green: Battery charge between 70 ... 100 %. Yellow: Battery charge between 30 ... 70 %. Red: Battery charge between 5 ... 30 %. Blinking light (1 s) Battery Green: Battery not charging, charge between 70 ...

  • Page 39: 4�5�2�- Myebox 1500

    MYeBOX 150 - MYeBOX 1500 Table 15 (Continued): LED description, MYeBOX 150� Description Power off Clamp not connected (LN) Power on Clamp connected (LN) 4�5�2�- MYeBOX 1500� The MYeBOX 1500 model has 21 indicator LEDs, as shown in Figure 35...
  • Page 40 MYeBOX 150 - MYeBOX 1500 Table 16 (Continued): LED description, MYeBOX 1500� Description Power off 3G connection disabled. Power on 3G connection enabled. Blinking light (1 s) 3G traffic. Power on Green: Battery charge between 70 ... 100 %. Yellow: Battery charge between 30 ... 70 %.

  • Page 41: 4�6�- Inputs (Myebox 1500 Model)

    MYeBOX 150 - MYeBOX 1500 Table 16 (Continued): LED description, MYeBOX 1500� Description Power off No voltage at the corresponding input. (U1: L1, U2: L2, U3: L3, UN: LN, URef: Reference voltage) Power on Voltage at the corresponding input. (U1: L1, U2: L2, U3: L3, UN: LN, URef:...

  • Page 42: 4�8�- Data Logging

    MYeBOX 150 - MYeBOX 1500 4.8.- DATA LOGGING 4�8�1� DATABASE The MYeBOX has a database that logs all the device's parameters and events. To begin logging data, push the button When the button is pushed, the screen shown in appears to confirm the beginning of recording.
  • Page 43 MYeBOX 150 - MYeBOX 1500 The device only recognises cards in FAT32 format. If a MicroSD memory card in another format is used, the device will not be able to write to it and a write error will be indicated by the REC LED blinking.
  • Page 44 MYeBOX 150 - MYeBOX 1500 Table 18 (Continued):.EVA file description. EVENT DESCRIPTION SD_STATUS_OUT MicroSD not detected SD_STATUS_ERROR Error accessing the MicroSD MYeBOX_UPGRADE Firmware update REC_STOP Stop manual logging (button or App) REC_START Start manual logging (button or App) EVQ_STOP Automatic or manual disabling of events or transients...
  • Page 45 MYeBOX 150 - MYeBOX 1500 4.8.2.3. .STD file The standard (.STD) file is used to store all the parameters that have to be recorded periodical- ly, within a programmed period of time. shows the variables that can be included in an STD file.
  • Page 46 MYeBOX 150 - MYeBOX 1500 Table 20 (Continued) : List of variables that can be included in the STD file Phases Total Record Variables Unit L1-L2-L3 Period (15) Direct current 5 min  Inverse current 5 min  Current maximum demand 15 min ...
  • Page 47 MYeBOX 150 - MYeBOX 1500 Asymmetry coefficient, Ka: ratio between the homopolar and direct components in an unbal- anced system. | ���� ���� | ���� ���� ���� | ���� ���� | ���� ���� ���� Equation 1: Asymmetry coefficient. | ����...
  • Page 48 MYeBOX 150 - MYeBOX 1500 4�8�2�4�- Removing the MicroSD memory card� To avoid electric shocks, disconnect the measuring and power supply terminals before opening the cover. Do not use the device without the cover in place. The MicroSD memory card is located under the battery. To remove it, follow the steps indicated in section “3.2.- BATTERY INSTALLATION”.

  • Page 49: 5�- Display

    MYeBOX 150 - MYeBOX 1500 5�- DISPLAY The parameters shown by the device on the screen are organised into different display menus, as shown in Figure 38 MEASURE Measures DEVICE PROFILE Device profile QUALITY Quality Communications COMMUNICATIONS Date DATE/TIME Information...
  • Page 50 MYeBOX 150 - MYeBOX 1500 Once the device has finished booting up, the display shows the first screen of the Measure display menu, as shown in Figure 39 230.0 230.0 230.0 Figure 39:Phase-neutral voltage screen, measure menu� If the device detects a system error, the error screen appears as shown in...

  • Page 51: 5�1�- Display Menu: Measure

    MYeBOX 150 - MYeBOX 1500 5.1.- DISPLAY MENU: MEASURE shows the main screen of the Measure display menu, showing all the device’s Figure 42 measuring parameters. MEASURE Figure 42:Measure display menu, main screen� Press the key to enter the display menu.
  • Page 52 MYeBOX 150 - MYeBOX 1500 Table 21 (Continued): Measure display menu� Measure display menu COS1 COS2 COS3 -0.80 -1.00 -0.50 Cos φ, of each of the phases. (16) COS l l l PF l l l 1.00 -0.95 Cos φ III and Power Factor III...

  • Page 53: 5�2�- Display Menu: Device Profile

    MYeBOX 150 - MYeBOX 1500 5.2.- DISPLAY MENU: DEVICE PROFILE shows the main screen of the Device Profile display menu, showing all the device's Figure 43 profile. DEVICE PROFILE Figure 43:Device Profile display menu, main screen. Press the key to enter the display menu.

  • Page 54: 5�3�- Display Menu: Quality

    MYeBOX 150 - MYeBOX 1500 5.3.- DISPLAY MENU: QUALITY shows the main screen of the Quality display menu, showing all the device's quality Figure 44 parameters. QUALITY Figure 44:Quality display menu, main screen� Press the key to enter the display menu.

  • Page 55: 5�4�- Display Menu: Communications

    MYeBOX 150 - MYeBOX 1500 5.4.- DISPLAY MENU: COMMUNICATIONS shows the main screen of the Communications display menu, showing full Figure 45 information about the device's active communications. COMMUNICATIONS Figure 45:Communications display menu, main screen� Press the key to enter the display menu.

  • Page 56: 5�5�- Display Menu: Date/Time

    MYeBOX 150 - MYeBOX 1500 Table 24 (Continued): Communications display menu� Communications display menu Note : Screen visible on the MYeBOX 1500 model 3G SIGNAL 86 % Level of 3G signal, value between 0% and 100%. Note : Screen visible on the MYeBOX 1500 model...

  • Page 57: 5�6�- Display Menu: Information

    MYeBOX 150 - MYeBOX 1500 5.6.- DISPLAY MENU: INFORMATION shows the main screen of the Information display menu, showing full information Figure 47 about the device. INFORMATION Figure 47:Information display menu, main screen� Press the key to enter the display menu.

  • Page 58: 5�7�- Display Menu: Energy Ratios

    MYeBOX 150 - MYeBOX 1500 Table 28: Code error Error bit Description Action 0x0000 There is no error Turn the device off and then on again. 0x0001 Memory (DDR) error If the problem persists contact the Technical Assistance Service. Check that the MicroSD memory card has been inserted 0x0002 correctly in its slot.
  • Page 59 MYeBOX 150 - MYeBOX 1500 Table 29 (Continued) : Energy Ratios display menu Menú de visualización Measure hourT1- costT1- 5.25244 No� of hours of the active Tariff 1 (Energy Generated) Cost per kWh of Tariff 1 (Energy Generated) KgCO2T1- 125.85855...

  • Page 60: 6�- Configuration

    MYeBOX 150 - MYeBOX 1500 6�- CONFIGURATION The device's configuration is organised into different menus, as shown in Figure 49 SETUP MENU MEASURE SETUP Measures Device profile DEVICE PROFILE SETUP Quality QUALITY SETUP Communications COMMUNICATIONS SETUP Memory MEMORY SETUP Factory setting...

  • Page 61: 6�1�- Setup Menu: Measure Setup

    MYeBOX 150 - MYeBOX 1500 If from any setup menu screen no key is pressed for 5 minutes, the device quits the setup menu and returns to the Phase-Neutral Voltages screen of the Measure display menu. Note: Setup menu changes must be made while data logging is off.

  • Page 62: 6�1�2�- Primary Voltage

    MYeBOX 150 - MYeBOX 1500 6�1�2�- PRIMARY VOLTAGE This screen is used to configure the primary winding of the voltage transformer. PRIMARY VOLTAGE 000001 Press the key to enter edit mode. Use the keys to write or change the value of the blinking digit.

  • Page 63: 6�1�4�- Phase Clamp Scale

    MYeBOX 150 - MYeBOX 1500 6�1�4�- PHASE CLAMP SCALE This screen is used to select the scale of the clamps selected for measuring the phase. Note: If the clamp only has one scale, this parameter cannot be edited. PHASE CLAMP SCALE Press the key to enter edit mode.

  • Page 64: 6�1�6�- Neutral Clamp Scale

    MYeBOX 150 - MYeBOX 1500 6�1�6�- NEUTRAL CLAMP SCALE This screen is used to select the scale of the clamp selected for measuring the neutral. Note: If the clamp only has one scale, this parameter cannot be edited. NEUTRAL CLAMP SCALE Press the key to enter edit mode.

  • Page 65: 6�1�8�- Clamp Scale For Measuring The Leakage Current, Ileak

    MYeBOX 150 - MYeBOX 1500 6�1�8�- CLAMP SCALE FOR MEASURING THE LEAKAGE CURRENT, ILeak Note: Configuration parameter available for the MYeBOX 1500 model. This screen is used to select the scale of the clamp selected for measuring the leakage current.

  • Page 66: 6�1�10�- Frequency

    MYeBOX 150 - MYeBOX 1500 6�1�10�- FREQUENCY This screen is used to select the operating frequency. FREQ HZ 50.00 Press the key to enter edit mode. Use the keys to browse the different options: , 50 Hz. 50.00 , 60 Hz, 60.00...

  • Page 67: 6�2�- Setup Menu: Device Profile Setup

    MYeBOX 150 - MYeBOX 1500 6.2.- SETUP MENU: DEVICE PROFILE SETUP shows the main screen of the Device Profile setup menu where the device's profile Figure 51 can be configured. DEVICE PROFILE SETUP Figure 51:Device Profile setup menu, main screen.

  • Page 68: 6�2�3�- Type Of Installation

    MYeBOX 150 - MYeBOX 1500 6�2�3�- TYPE OF INSTALLATION This screen is used to configure the installation type. SELECT CIRCUIT 3 PHASES + NEUTRAL Press the key to enter edit mode. Use the keys to browse the different options: , Single-phase network measurement, phase to neutral, with a...

  • Page 69: 6�3�- Setup Menu: Quality Setup

    MYeBOX 150 - MYeBOX 1500 6.3.- SETUP MENU: QUALITY SETUP shows the main screen of the Quality setup menu, where the device's quality Figure 52 parameters are configured. QUALITY SETUP Figure 52:Quality setup menu, main screen� Press the key to enter the setup menu.

  • Page 70: 6�3�3�- Outage, Interruption

    MYeBOX 150 - MYeBOX 1500 Minimum configuration value: 50% Maximum configuration value: 97% Note: Set the value to 0 to stop recording gaps. Press the key to confirm. Use the keys to toggle between the menu's setup screens. 6�3�3�- OUTAGE, INTERRUPTION This screen is used to configure the threshold value for logging outages, as a percentage of the rated voltage value.

  • Page 71: 6�3�5�- Save

    MYeBOX 150 - MYeBOX 1500 Press the key to confirm. Use the keys to toggle between the menu’s setup screens. 6�3�5�- SAVE Press the key to save the changes and to go to the main screen of the Quality setup menu.

  • Page 72: 6�4�2�- Ssid

    MYeBOX 150 - MYeBOX 1500 , Select this option when the unit is going to connect to a previously created NETWORK corporate Wi-Fi network. , After selecting this option, the device generates a Wi-Fi network so the ACCESS POINT user can connect from the mobile application.

  • Page 73: 6�4�4�- Password

    MYeBOX 150 - MYeBOX 1500 , WPS deactivated. Press the key to confirm the option selected. Note: The device activates the WPS after the configuration is saved ( “6.4.10.- SAVE”) Use the keys to toggle between the menu's setup screens.

  • Page 74: 6�4�6�- Apn, Access Point Name

    MYeBOX 150 - MYeBOX 1500 6�4�6�- APN, ACCESS POINT NAME Note: Configuration parameter available for the MYeBOX 1500 model. Note: This configuration parameter cannot be edited if was selected for the “ 6.4.5.- EN- DISABLE ” parameter. ABLING 3G COMMUNICATIONS This screen is used to configure the name of the APN for 3G communications.

  • Page 75: 6�4�8�- Apn, Password

    MYeBOX 150 - MYeBOX 1500 6�4�8�- APN, PASSWORD Note: Configuration parameter available for the MYeBOX 1500 model. Note: This configuration parameter cannot be edited if was selected for the “6.4.5.- DISABLE ” parameter. ABLING 3G COMMUNICATIONS This screen is used to configure the APN password for 3G communications.

  • Page 76: 6�4�10�- Save

    MYeBOX 150 - MYeBOX 1500 6�4�10�- SAVE Press the key to save the changes and to go to the main screen of the Communications setup menu. SAVE Use the keys to toggle between the menu’s setup screens. 6�4�11�- EXIT key to exit to the main screen of the Communications setup menu without sav- Press the ing modified values.

  • Page 77: 6�5�2�- Save

    MYeBOX 150 - MYeBOX 1500 Press the key to confirm the option selected. Use the keys to toggle between the menu’s setup screens. 6�5�2�- SAVE Press the key to begin deletion of the database. SAVE While the deletion is being performed, the following screen will be shown: FORMATTING ..

  • Page 78: 6�6�- Setup Menu: Reset Factory Setup

    MYeBOX 150 - MYeBOX 1500 6.6.- SETUP MENU: RESET FACTORY SETUP shows the main screen of the Reset Factory setup menu where the default values Figure 55 of the unit can be loaded. RESET FACTORY SETUP Figure 55: Reset facvtory setup menu, main screen�...

  • Page 79: 6�6�3�- Exit

    MYeBOX 150 - MYeBOX 1500 6�6�3�- EXIT Press the key to exit to the main screen of the Reset Factory setup menu without saving modified values. EXIT Use the keys to toggle between the menu’s setup screens. Instruction Manual...

  • Page 80: 7�- Wireless Communications

    MYeBOX 150 - MYeBOX 1500 7�- WIRELESS COMMUNICATIONS The device has the following wireless communications: MYeBOX 150 model: Wi-Fi communications MYeBOX 1500 model: Wi-Fi communications  3G communications 7.1.- USAGE ENVIRONMENT AND HEALTH Wireless communications emit radio frequency electromagnetic energy, like other radio devic- Because wireless communications operate under the guidelines found in radio frequency stand- ards and recommendations, they are safe for users to use.

  • Page 81: 7�2�- Location Of The Antennas

    MYeBOX 150 - MYeBOX 1500 7.2.- LOCATION OF THE ANTENNAS The device has two antennas for Wi-Fi and 3G connections. 3G ( MYeBOX 1500 ) Wi-Fi Figure 56:Location of the wireless antennas� The antennas have a standard connector so they can be exchanged for larger ones if the ap- plication requires greater coverage.

  • Page 82: 7�4�- 3G Communications (Myebox 1500 Model)

    MYeBOX 150 - MYeBOX 1500 7.4.- 3G COMMUNICATIONS (MYeBOX 1500 model) The MYeBOX 1500 model has 3G communications, so the device can be connected and ex- change data with other mobile devices without a Wi-Fi connection. The only thing required is a SIM card.

  • Page 83: 8�- Mobile Application Myebox

    MYeBOX 150 - MYeBOX 1500 8�- MOBILE APPLICATION MYeBOX The device has the MYeBOX mobile application, which allows users to wirelessly connect to the devices using Wi-Fi or 3G communications (MYeBOX 1500 model) and: Fully configure the device. Display all parameters in real time, both numerically and graphically.

  • Page 84: 10�2�- Updating Through The Mobile Application

    MYeBOX 150 - MYeBOX 1500 10.2.- UPDATING THROUGH THE MOBILE APPLICATION With MYeBOX switched on: 1�- Open the MYeBOX mobile application. 2�- If there is a new version of the unit, the application indicates this in the Setup / Firm- ware menu.

  • Page 85: 11�- Technical Features

    MYeBOX 150 - MYeBOX 1500 11�- TECHNICAL FEATURES Power supply (AC power supply adaptor) Input 100 ... 240 V ~ Rated voltage Frequency 47 ... 63 Hz MYeBOX 150 MYeBOX 1500 Consumption 22... 28 VA 25... 31 VA Installation category...
  • Page 86 MYeBOX 150 - MYeBOX 1500 (Continued) Accuracy of measurements (19) Power factor measurement Class 0.5 (IEC 61557-12) Voltage THD measurement Class I (IEC 61000-4-7) Voltage harmonics (up to 50th order) Class I (IEC 61000-4-7) Current THD measurement Class I (IEC 61000-4-7)
  • Page 87 MYeBOX 150 - MYeBOX 1500 User interface Display 20 alphanumeric characters x 2 lines Keypad 5 keys, 2 buttons MYeBOX 150: 14 LEDs, MYeBOX 1500: 21 LEDs Connectivity μUSB Internal battery Type Lithium Voltage Capacity 220 mAh Battery life 10 years...
  • Page 88 MYeBOX 150 - MYeBOX 1500 255.68 Figure 58: MYeBOX dimensions� Standards Electrical equipment for measurement, control and laboratory use - EN 61326-1:2013 EMC requirements - Part 1: General requirements Electrical equipment for measurement, control, and laboratory use - UL 61010-1, 3rd Edition,...

  • Page 89: 12�- Maintenance And Technical Service

    • CIRCUTOR accepts no liability due to the possible damage to the unit or other parts of the installation, nor will it cover any possible sanctions derived from a pos- sible failure, improper installation or “improper usage”...

  • Page 90: 14�- Ce Certificate

    MYeBOX 150 - MYeBOX 1500 14�- CE CERTIFICATE Instruction Manual...
  • Page 91 MYeBOX 150 - MYeBOX 1500 Instruction Manual...
  • Page 92 MYeBOX 150 - MYeBOX 1500 Instruction Manual...
  • Page 93 MYeBOX 150 - MYeBOX 1500 Instruction Manual...
  • Page 94 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
