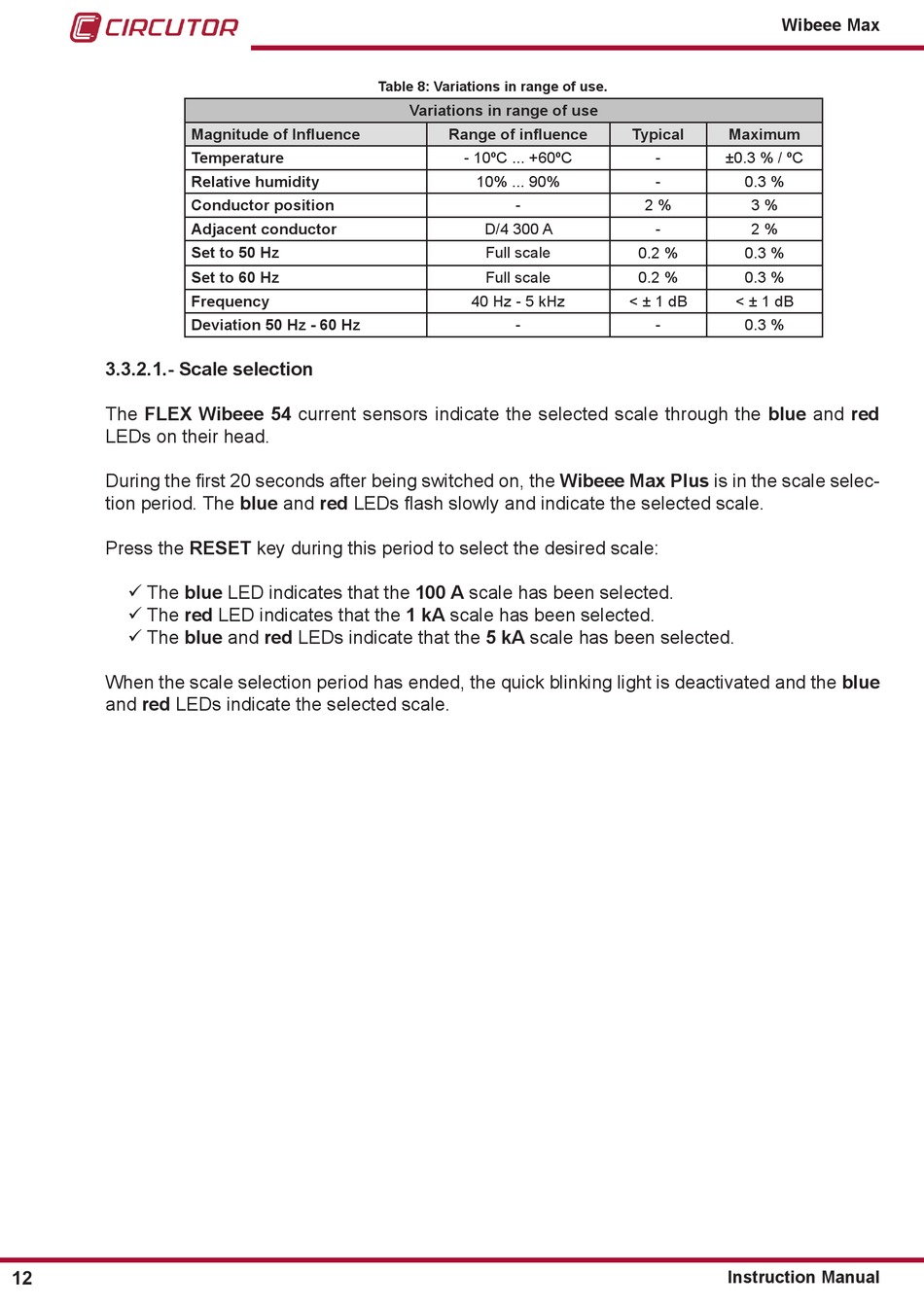

3�3�2�1�- Scale selection
The FLEX Wibeee 54 current sensors indicate the selected scale through the blue and red
LEDs on their head.
During the first 20 seconds after being switched on, the Wibeee Max Plus is in the scale selec-
tion period. The blue and red LEDs flash slowly and indicate the selected scale.
Press the RESET key during this period to select the desired scale:
 The blue LED indicates that the 100 A scale has been selected.
 The red LED indicates that the 1 kA scale has been selected.
 The blue and red LEDs indicate that the 5 kA scale has been selected.
When the scale selection period has ended, the quick blinking light is deactivated and the blue
and red LEDs indicate the selected scale.
12
Magnitude of Influence
Temperature
Relative humidity
Conductor position
Adjacent conductor
Set to 50 Hz
Set to 60 Hz
Frequency
Deviation 50 Hz - 60 Hz
Table 8: Variations in range of use�
Variations in range of use
Range of influence
- 10ºC ... +60ºC
10% ... 90%
-
D/4 300 A
Full scale
Full scale
40 Hz - 5 kHz
-
Wibeee Max
Typical Maximum
- ±0.3 % / ºC
- 0.3 %
2 % 3 %
- 2 %
0.2 % 0.3 %
0.2 % 0.3 %
< ± 1 dB < ± 1 dB
- 0.3 %
