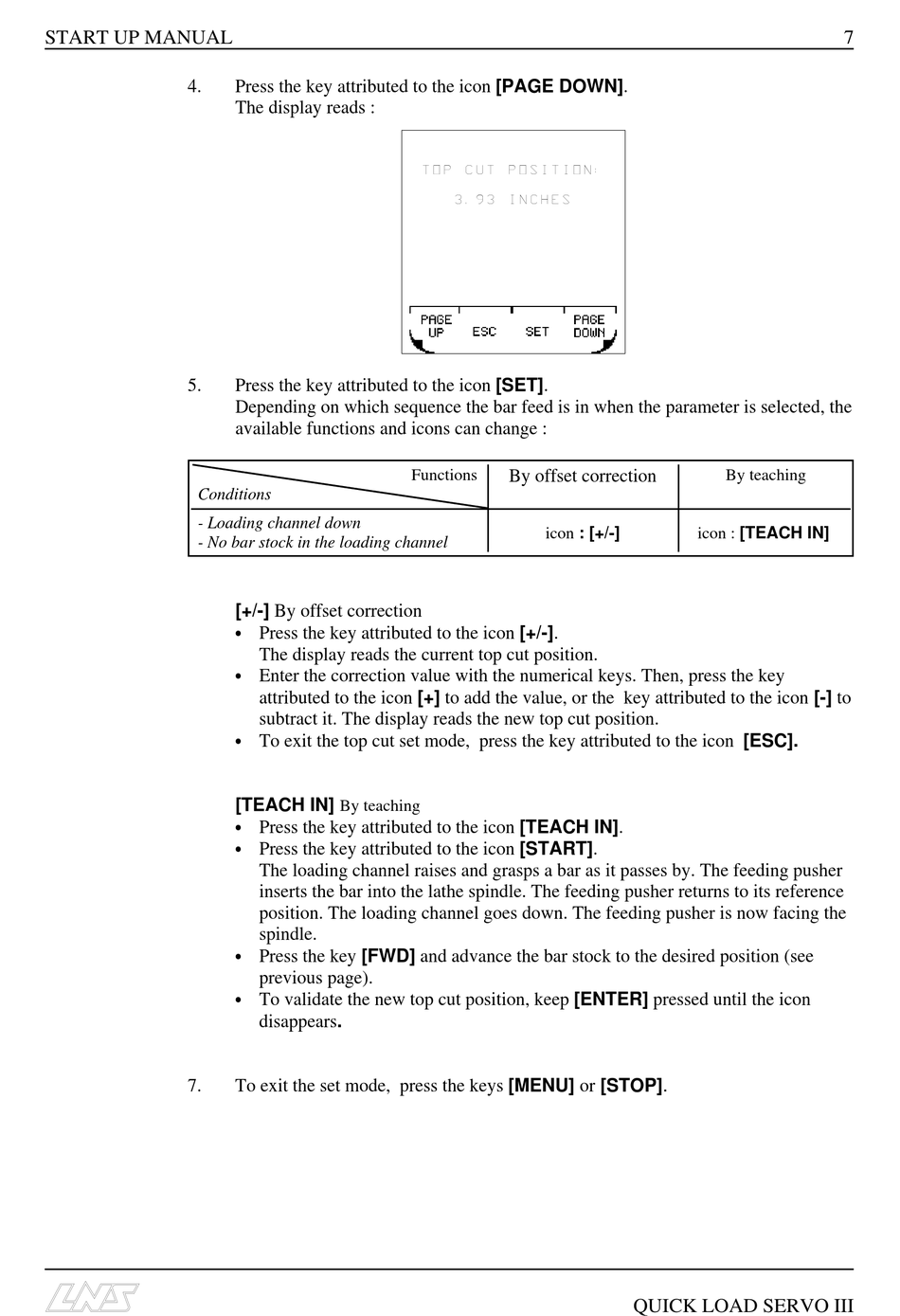

LNS QUICK LOAD SERVO S3 Startup Manual page 8

START UP MANUAL
4.
5.
Conditions
- Loading channel down
- No bar stock in the loading channel
7.
Press the key attributed to the icon [PAGE DOWN].
The display reads :
Press the key attributed to the icon [SET].
Depending on which sequence the bar feed is in when the parameter is selected, the
available functions and icons can change :
[+/-] By offset correction
C Press the key attributed to the icon [+/-].
The display reads the current top cut position.
C Enter the correction value with the numerical keys. Then, press the key
attributed to the icon [+] to add the value, or the key attributed to the icon [-] to
subtract it. The display reads the new top cut position.
C To exit the top cut set mode, press the key attributed to the icon [ESC].
[TEACH IN]
By teaching
C Press the key attributed to the icon [TEACH IN].
C Press the key attributed to the icon [START].
The loading channel raises and grasps a bar as it passes by. The feeding pusher
inserts the bar into the lathe spindle. The feeding pusher returns to its reference
position. The loading channel goes down. The feeding pusher is now facing the
spindle.
C Press the key [FWD] and advance the bar stock to the desired position (see
previous page).
C To validate the new top cut position, keep [ENTER] pressed until the icon
disappears.
To exit the set mode, press the keys [MENU] or [STOP].
T O P - C U T P O S I T I O N :
3 . 9 3 I N C H E S
Functions By offset correction
icon : [+/-]
By teaching
icon : [TEACH IN]
QUICK LOAD SERVO III
7
