Slope Of The Magazine Table - LNS QUICK LOAD SERVO S3 Startup Manual

20
4.3

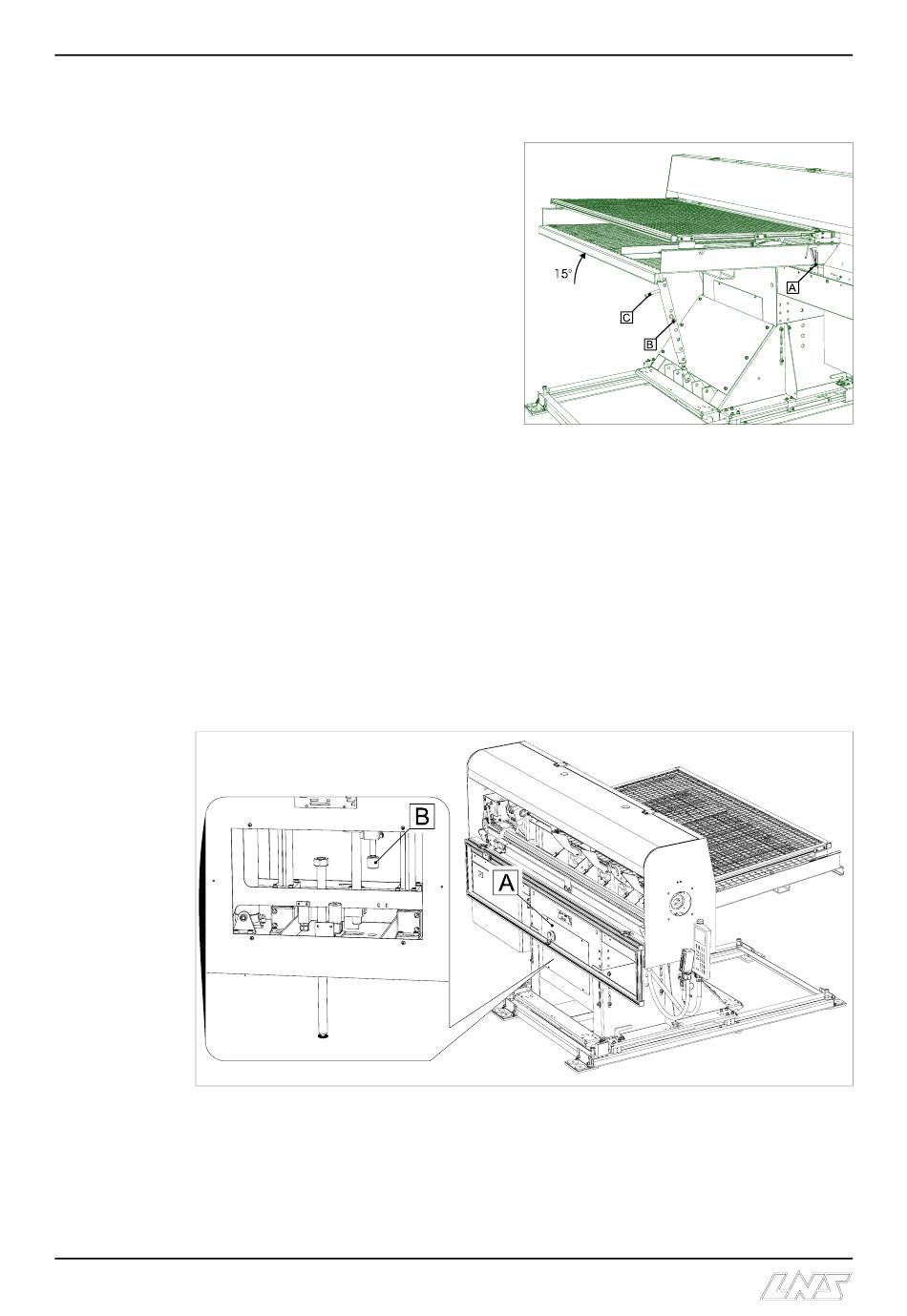

When profiled bar stock is loaded, and the
bars do not slide easily, the slope of the
table may be increased. A reference mark
(A) indicates two positions: one position
for round bars and another of greater slope,
for profiled bars.
By adjusting the set-up axle (C), the slope
of the table varies. If the range of
adjustment is not enough, remove the pin
(B), lift and place the table on the next
hole, and replace the pin.
4.4
The slope of the table barely affects the loading of bars of great diameter.
However, it is possible that bars of small diameter may not load correctly. For this reason,
the fingers must be adjusted whenever the slope of the table is modified.
Remove front cover (A) and adjust the position of the fingers using the knurled knob
located under the loading table.
QUICK LOAD SERVO III

Slope of the magazine table

Loading fingers set-up
START UP MANUAL
