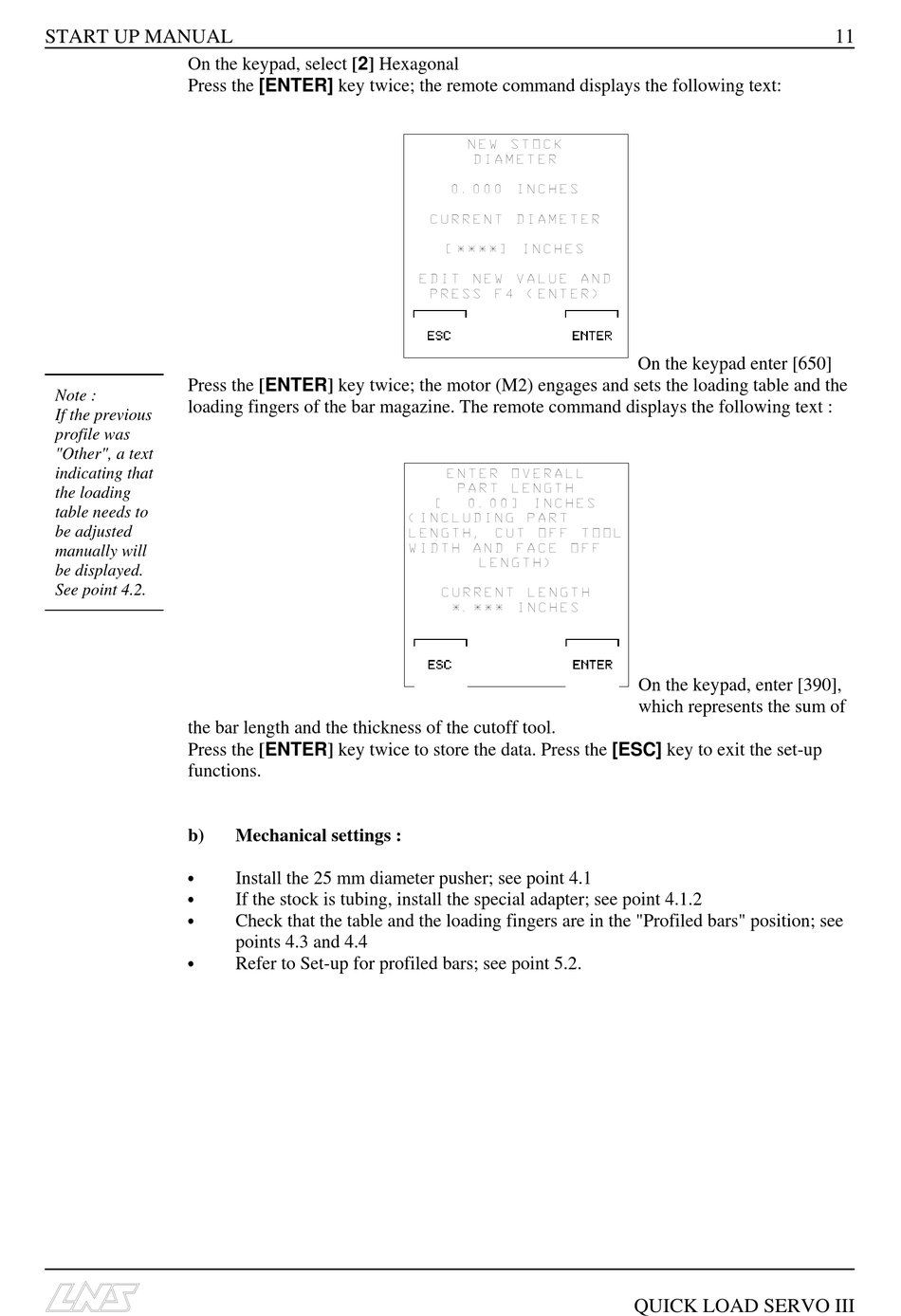

START UP MANUAL
On the keypad, select [2] Hexagonal
Press the [ENTER] key twice; the remote command displays the following text:
Press the [ENTER] key twice; the motor (M2) engages and sets the loading table and the
Note :
loading fingers of the bar magazine. The remote command displays the following text :
If the previous
profile was
"Other", a text
indicating that
the loading
table needs to
be adjusted
manually will
be displayed.
See point 4.2.
the bar length and the thickness of the cutoff tool.
Press the [ENTER] key twice to store the data. Press the [ESC] key to exit the set-up
functions.
b)
C
C
C
C
Mechanical settings :
Install the 25 mm diameter pusher; see point 4.1
If the stock is tubing, install the special adapter; see point 4.1.2
Check that the table and the loading fingers are in the "Profiled bars" position; see
points 4.3 and 4.4
Refer to Set-up for profiled bars; see point 5.2.
N E W S T O C K
D I A M E T E R
0 . 0 0 0 I N C H E S
C U R R E N T D I A M E T E R
[ * * * * ] I N C H E S
E D I T N E W V A L U E A N D
P R E S S F 4 ( E N T E R )
E N T E R O V E R A L L
P A R T L E N G T H
[ 0 . 0 0 ] I N C H E S
( I N C L U D I N G P A R T
L E N G T H , C U T - O F F T O O L
W I D T H A N D F A C E - O F F
L E N G T H )
C U R R E N T L E N G T H
* . * * * I N C H E S
On the keypad enter [650]
On the keypad, enter [390],
which represents the sum of
