The following sections provide jumper settings for configuring your STM3210B-EVAL board
and peripherals.
Two types of jumpers are used on the STM3210B-EVAL board:
3-pin jumpers with two possible positions, for which the possible settings are presented
in schematics in the following sections
2-pin jumpers with two possible settings:
– Fitted: the circuit is closed.
– Not fitted: the circuit is open (see
Figure 4.
www.BDTIC.com/ST

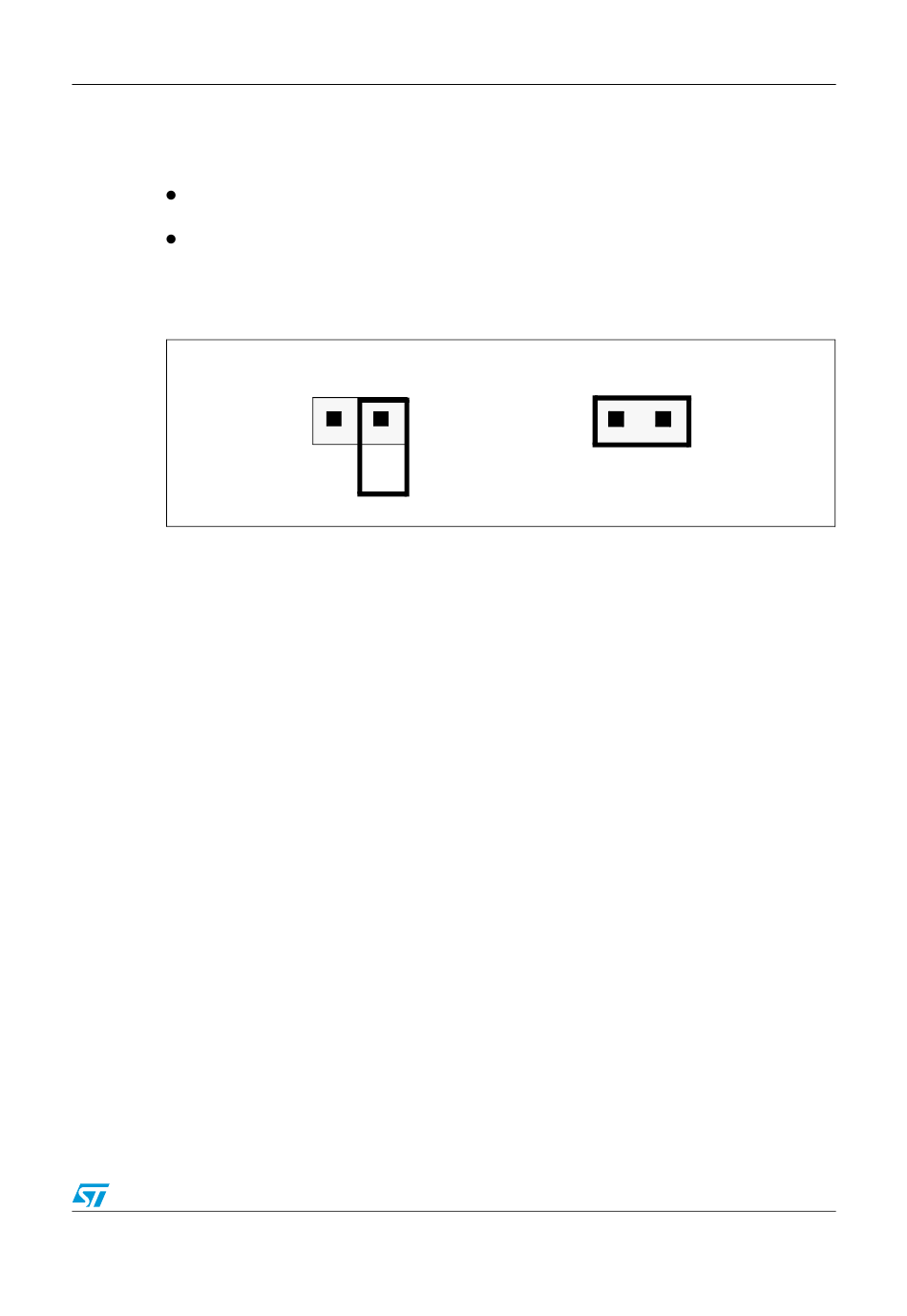

Settings for two-pin jumpers
Not fitted
Doc ID 13472 Rev 5
Hardware layout and configuration
Figure 4.).
Fitted
