Connectors
Table 18.
Pin number
3.10

Trace debugging connector CN10

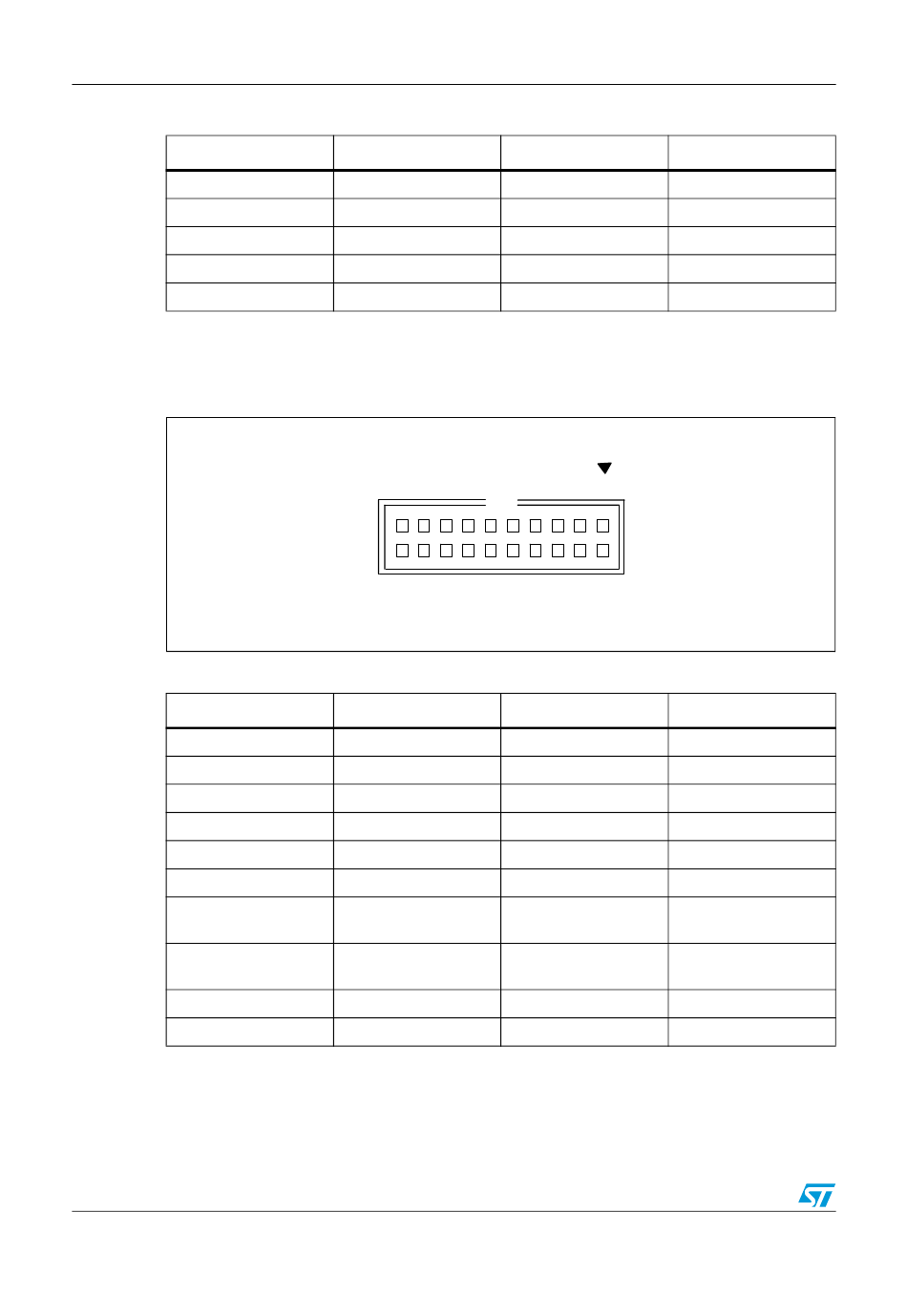

Figure 16. Trace debugging connector CN10 (front view)
Table 19.
Pin number
11
13
15
17
19
20/46
www.BDTIC.com/ST
SWD debugging connector (CN9)
Description
1 +3V3
3 GND
5 GND
7 GND
9 GND
19 17 15 13 11 9 7 5
20 18 16 14 12 10 8 6
Trace debugging connector (CN10)
Description
1 3.3V power
3 GND
5 GND
7 GND
9 GND
GND
GND
GND
GND
GND
Doc ID 13472 Rev 5
Pin number Description
2 SWDIO/PA13
4 SWCLK/PA14
6 SWO/PB3
8 TDI/PA15
10 RESET#
3 1
4 2
Pin number Description
2 TMS/PA13
4 TCK/PA14
6 TDO/PB3
8 TDI/PA15
10 RESET#
12 TraceCLK/PE2
TraceD0/PE3 or
14
SWO/PB3
TraceD1/PE4 or
16
nTRST/PB4
18 TraceD2/PE5
20 TraceD3/PE6
UM0426
