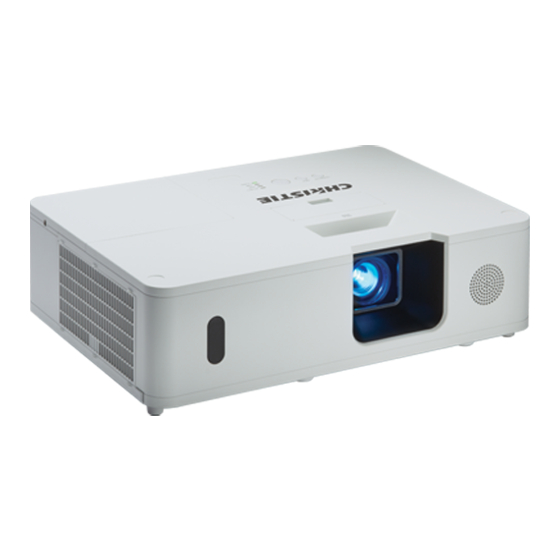

Christie LW502 User Manual
  1. Manuals
  2. Brands
  3. Christie Manuals
  4. Projector
  5. LW502
  6. User manual

Christie LW502 User Manual

Hide thumbs Also See for LW502:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual (detailed)
Instant Stack Guide
020-001085-02
LW502/LWU502/LX602

Advertisement

Table of Contents
loading

Related Manuals for Christie LW502

Summary of Contents for Christie LW502

  • Page 1 User’s Manual (detailed) Instant Stack Guide 020-001085-02 LW502/LWU502/LX602...
  • Page 3 • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. Trademark acknowledgment All the trademarks in this manual are the properties of their respective owners. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 4: Table Of Contents

    Inputting an image from Main to Sub - Video signal (either component or video) ... 34 Inputting an image to Sub and Main individually ....34 6. Restrictions on Schedule function ..36 7. Troubleshooting ....38 LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 5: Introduction

    Set A : Projector placed underneath Set B : Projector placed on top of Set A Set A If you require more information on Instant Stack, consult your dealer. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 6 Keep a space of 50 cm or more between a side of the projector and other objects such as a wall. Take care not to let the hot exhaust air from other projectors enter the intake vents of the projector. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 7 • When Intellectual Stack is used, the operations or settings of some functions are restricted. Refer to this manual for details. ( 36 ) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 8: Installation

    ADVANCED MENU > SECURITY (> ENTER PASSWORD) > STACK LOCK STACK LOCK dialog appears on screen. (Operating → Guide SECURITY menu) (2) Use the ▲/▼ buttons to highlight OFF, and press the ► button to complete the setting. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 9: Installing The First Projector (Set A)

    - VERTICAL adjuster should be set to the upper limit position. - ZOOM ring should not be set to the widest position. - HORIZONTAL adjuster is recommended to be set near the center position. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 10: Setting Up Set A

    • KEYSTONE, 3D KEYSTONE, and WARPING functions cannot be used at the same time. Use an appropriate function. • If using Simple Stack, go to 2.3 Installation of the second projector (Set ( 10 ) (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 11 • If STACK MODE is changed to MAIN or SUB, the setting of OPTION menu - CONTROL TERMINAL - RS-232C is forcibly set to CONTROL. * Available only in optional remote control. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 12: Installing The Second Projector (Set B)

    • If the elevator feet of Set A are used, make sure the tilt angle for both sets is within 11 degrees from the level line. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 13: Connecting Projectors

    Use an appropriate function. • Run the INSTALLATION setting if necessary as it may change the image (Operating Guide → position. SETUP menu) (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 14 MODE, and press the ► button to display the STACK MODE dialog. Highlight MAIN with the ▲/▼ buttons, and press the ◄ button to return to the previous menu. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 15 ( 24 ) NOTE • If STACK MODE is changed to MAIN or SUB, the setting of OPTION menu - SERVICE - CONTROL TERMINAL - RS-232C is forcibly set to CONTROL. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 16: Confirming Main And Sub Settings

    NOTE • If these dialogs are not displayed on screen, check the RS-232C connection ( 11 ) and the MAIN or SUB setting in the STACK MODE dialog. ( 18 ) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 17: Fine Adjusting Image Position

    → Bottom right → Bottom left (2) Fine adjust the four corners in the same way. Superimposed image NOTE • Refer to users. ( 16 ) NOTES for all LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 18: For Simple Stack Users

    - Check the RESOLUTION setting in the INPUT menu, and change to the same setting if the setting differs between Main and Sub. (Operating Guide → INPUT menu) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 19: Stack Menu Settings

    (Operating Guide → SETUP menu) - COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: OFF (Operating Guide → OPTION menu) - STACK LOCK in SECURITY menu: OFF ( 6 ) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 20: Selecting Main, Sub Or Off

    → Projector Web Control) Select Projector Status in the main menu of Projector Web Control. The Stack Mode item shows whether your projector is set to MAIN or SUB. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 21: Selecting Lamp Operation Mode

    Menu on Main projector of the OSDs are displayed in PbyP or MAIN or SUB PIP display because one of the two projectors displays the black screen. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 22 Sub projector is turned on. - If an error occurs on the Main projector, the Sub projector turns on and the POWER indicator on the Main projector lights or blinks in red. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 23: Selecting Lamp Switching Mode

    ALTERNATE is selected in the LAMP MODE dialog. • To maintain the quality and reliability of the two projectors, the projector with the most lamp usage may be turned on even if AUTO is selected. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 24: Selecting Input Source For Sub

    Main to Sub - Video signal (either component or video). ( 34 ) • If FIXED (COMPUTER IN) is selected, the MONITOR OUT setting of STANDBY OUTPUT is invalid. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 25 • If FIXED (HDMI 1) is selected, the HDMI OUTPUT setting is invalid. • If FIXED (HDMI 1) is selected, the HDMI OUT and AUDIO OUT settings of STANDBY OUTPUT are invalid. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 26: Exiting Intellectual Stack Menu

    The screen becomes black while the setting is being applied. Wait for a while. ● Pressing the ◄ button (functioning as NO key) in the dialog closes the dialog without saving the setting. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 27: Important Information For Intellectual Stack

    To start Intellectual Stack again, re-select MAIN/SUB on both projectors in the STACK MODE dialog, or turn off and on both projectors again. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 28 The numbers “1” and “2” above the projector icons represent the Main and Sub projectors respectively. Refer to the on-screen messages as shown below and take the necessary actions to resolve the Full dialog problem. (continued on next page) Small dialog LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 29 Otherwise, both projectors turn on. Enter the security code for the projector that is locked by the security function. After the security lock is released, one of the projectors turns off if both projectors are turned on. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 30: Connecting Cables

    (2) Turn off both projectors and allow them to cool sufficiently. (3) Reconnect the two projectors with the RS-232C cable and turn them on again. Intellectual Stack restarts. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 31: Connecting Signal Cables

    MONITOR OUT port. If you want to use other input ports, input the HDBaseT: image to Sub and Main individually. LW502/ LWU502 only (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 32: Inputting An Image To Sub And Main Individually

    Main projector in Intellectual Stack. NOTES for Simple Stack • Any ports compatible with the signal can be used. Input the same signal to the two projectors individually. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 33: Setting Input Ports Using Menu

    ( 33 ) - If SUB is displayed, the Main projector is turned off and the Sub projector is operating. Go to projector. ( 32 ) 5.3 Starting up Main LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 34: Starting Up The Main Projector

    • If the Main projector cannot be turned on due to an error, the Sub NOTE projector is turned on even if you follow the procedures above. Take necessary actions to fix the Main projector, and then change the settings for Intellectual Stack. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 35: Setting The Menu

    • When FIXED (COMPUTER IN) is selected, if any button to select an input port on the remote control or the INPUT button on the Main projector is pressed, the dialog for selecting the input source is displayed. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 36: Inputting An Image From Main To Sub - Video Signal (Either Component Or Video)

    Use the ▲/▼/◄/► buttons to go into the following menu. ADVANCED MENU > OPTION > SERVICE > COMMUNICATION > STACK STACK menu appears on screen. (Operating Guide → OPTION menu) (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 37 • When FOLLOW MAIN UNIT is selected, if any button to select an input port on the remote control or the INPUT button on the Main projector is pressed, the dialog for selecting the input source is displayed. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 38: Restrictions On Schedule Function

       : This Schedule can be input to Projector Web Control and be executed even if the projectors are operating in Intellectual Stack. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 39 • When the Sub projector is turned off according to the ALTERNATE MODE setting, the Schedule function on the Sub projector to turn off its power is executed without error. Turn off only the Sub projector. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)

  • Page 40: Troubleshooting

    The RS-232C cable between the Main and Sub projector do Sub projectors is not properly connected. 11 Connect the RS-232C cable properly and not operate in synchronization. restart the Main projector. (continued on next page) LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
  • Page 41 INPUT menu, and change to the same → INPUT menu setting if the setting differs between Main → RESOLUTION and Sub. If you require more information on Instant Stack, consult your dealer. LW502/LWU502/LX602 User's Manual - Instant Stack Guide 020-001085-02 Rev. 1 (02-2018)
