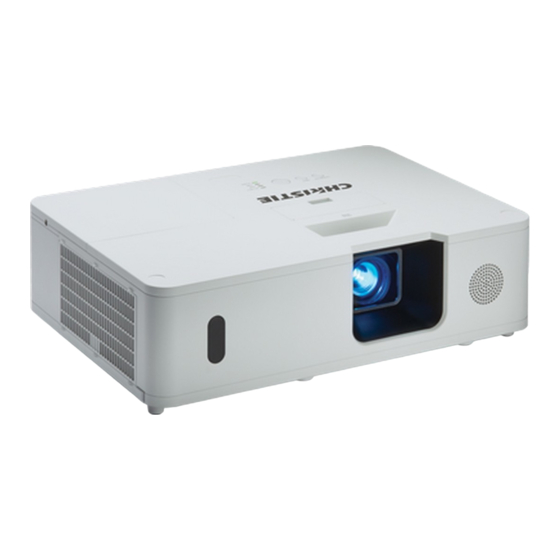

Christie LW502 User Manual

Hide thumbs Also See for LW502:

Advertisement

Quick Links

Download this manual See also: User Manual
LW502/LWU502
User's Manual (detailed)
Operating Guide - Technical
020-001099-01

Advertisement

loading

Related Manuals for Christie LW502

Summary of Contents for Christie LW502

  • Page 1 LW502/LWU502 User's Manual (detailed) Operating Guide - Technical 020-001099-01...

  • Page 3: Lcd Projector

    1920 x 1080 Full HD (60Hz) 67.5 VESA *2) 1920 x 1200 W-UXGA (60Hz) VESA Reduced Blanking *1) Only for [WXGA Model] *2) Only for [WUXGA Model] (continued on next page) LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 4 1680 x 1050 WSXGA+ (60Hz) 65.3 VESA 1600 x 1200 UXGA (60Hz) VESA *1) 1920 x 1200 W-UXGA (60Hz) VESA Reduced Blanking *1) Only for [WUXGA Model] (continued on next page) LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 5 • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above. • LW502 and LWU502 are not recommended for use with 50Hz signal inputs. • The signal is converted to the projector’s panel resolution before being displayed.
  • Page 6 Ground 13 H. sync / Composite sync. Ground Red, Ground Cr/Pr 14 V. sync. Ground Green, Ground Y A : SCL (DDC clock) B : (No connection) Ground Blue, Ground Cb/Pb LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 7 T.M.D.S. Clock Shield +5V Power N.C. TMDS_GND VBUS T.M.D.S. Data1 Shield T.M.D.S. Clock - Hot Plug Detect TMDS_GND N.C. CBUS T.M.D.S. Data1 - N.C. N.C. Reserved (N.C. on device) T.M.D.S. Data0 + N.C. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 8 * About the details of RS-232C communication, ⑥ ⑦ ⑧ ⑨ ⑤ ④ ③ ② ① refer to the next section. Signal Signal Signal (No connection) (No connection) Ground (No connection) (No connection) LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 9 Network Guide. Signal Signal Signal WIRELESS ④ ③ ② ① Only for USB wireless adapter. ① ② ③ ④ Signal - Data + Data Ground REMOTE CONTROL Ø3.5 stereo mini jack LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 10 RD(2) (2) RD TD (3) (3) TD (4) − DTR (4) GND (5) (5) GND (6) − DSR (6) RTS (7) (7) RTS CTS (8) (8) CTS (9) − RI (9) LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 11 <DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h] Refer to the Communication command table (&above). [Type] [Setting code] For byte number 9 to 12, refer to RS-232C Communication / Network command table (&17). LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 12 • When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 13 WIRELESS port LAN or HDBaseT port • LAN cable (CAT-5e or greater) • For HDBaseT connection - CAT-5e or greater - shielded type (connectors included) - straight cable - single cable LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)

  • Page 14: Communication Port

    Enter the required authentication password. Password Confirm this setting is the same for [Network Control Port1 (Port: 23)] and [Network Network Control Re-enter Authentication Control Port2 (Port: 9715)]. Default setting is blank. Password LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)

  • Page 15: Command Control Settings

    NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data. • Provide an interval of at least 40ms between the response code and any other code. • Commands are not accepted during warm-up. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 16 5) When the sent data is correct, the command is performed and the reply data is returned. Otherwise, an authentication error is returned. NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted for the same connection. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 17 Set the COMMUNICATION TYPE to NETWORK BRIDGE in the COMMUNICATION menu of the OPTION - SERVICE menu. USB wireless adapter WIRELESS port LAN or HDBaseT port CONTROL • LAN cable (CAT-5e or greater) RS-232C LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 18 • Turn off the power and unplug both the projector and other devices before connecting them. • For details of Transmission method, refer to in the 7.4 Transmission method Network Guide. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 19 11 23 80 00 PbyP MAIN SIZE LARGE BE EF 06 00 92 47 01 00 11 23 81 00 BE EF 06 00 F1 27 02 00 11 23 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 20 PbyP / PIP RIGHT / SECONDARY BE EF 06 00 DA 26 01 00 17 23 01 00 FRAME LOCK BE EF 06 00 79 27 02 00 17 23 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 21 01 00 A1 30 27 00 8 CUSTOM BE EF 06 00 37 FF 01 00 A1 30 17 00 BE EF 06 00 F4 F0 02 00 A1 30 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 22 Decrement BE EF 06 00 CB FE 05 00 97 30 00 00 User GAMMA Execute BE EF 06 00 2C C3 06 00 57 70 00 00 Point 8 Reset LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 23 Decrement BE EF 06 00 0B F5 05 00 B7 30 00 00 COLOR TEMP Execute BE EF 06 00 C8 C5 06 00 4C 70 00 00 OFFSET B Reset LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 24 00 00 Decrement BE EF 06 00 26 71 05 00 09 22 00 00 OVER SCAN Execute BE EF 06 00 EC D9 06 00 27 70 00 00 Reset LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 25 1D 22 01 00 HDMI 2 FORMAT COMPUTER BE EF 06 00 32 74 01 00 1D 22 02 00 BE EF 06 00 61 75 02 00 1D 22 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 26 D1 20 00 00 FRAME LOCK - BE EF 06 00 52 EA 01 00 D1 20 01 00 HDBaseT BE EF 06 00 F1 EB 02 00 D1 20 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 27 3D KEYSTONE Increment BE EF 06 00 9B 89 04 00 24 21 00 00 Right Top - V Decrement BE EF 06 00 4A 88 05 00 24 21 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 28 BE EF 06 00 19 94 06 00 4C 21 00 00 Memory Load-2 3D KEYSTONE Execute BE EF 06 00 E5 95 06 00 4D 21 00 00 Memory Load-3 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 29 07 33 00 00 Dimming Increment BE EF 06 00 1A 22 04 00 07 33 00 00 Level Decrement BE EF 06 00 CB 23 05 00 07 33 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 30 Decrement BE EF 06 00 33 73 05 00 56 27 00 00 WHITE BALANCE GAIN Execute BE EF 06 00 B0 E2 06 00 FE 70 00 00 B Reset LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 31 UNIFORMITY B Decrement BE EF 06 00 8B 6C 05 00 34 27 00 00 COLOR UNIFORMITY Execute BE EF 06 00 E0 E1 06 00 F2 70 00 00 B Reset LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 32 01 00 1C 20 00 00 BE EF 06 00 FE D4 01 00 1C 20 01 00 SPEAKER BE EF 06 00 5D D5 02 00 1C 20 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 33 A3 20 00 00 LAN SOUND Enable BE EF 06 00 2A F1 01 00 A3 20 01 00 ENABLE BE EF 06 00 89 F0 02 00 A3 20 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 34 01 00 05 30 0E 00 TÜRKÇE BE EF 06 00 07 D6 01 00 05 30 0F 00 BE EF 06 00 C4 D3 02 00 05 30 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 35 01 00 22 30 11 00 STACK BE EF 06 00 83 C0 01 00 22 30 20 00 BE EF 06 00 70 D9 02 00 22 30 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 36 01 00 06 24 03 00 SHUTTER TIMER BE EF 06 00 17 90 01 00 06 24 06 00 BE EF 06 00 84 93 02 00 06 24 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 37 01 00 01 36 3A 00 HDCR BE EF 06 00 A6 22 01 00 01 36 3E 00 BE EF 06 00 F5 32 02 00 01 36 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 38 01 00 03 36 3A 00 HDCR BE EF 06 00 1E 23 01 00 03 36 3E 00 BE EF 06 00 4D 33 02 00 03 36 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 39 60 1B 00 00 EXTRON for BE EF 06 00 A3 BC 01 00 60 1B 01 00 HDBaseT BE EF 06 00 00 BD 02 00 60 1B 00 00 LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 40 11 00 HDMI 2 BE EF 06 00 A1 35 02 00 4D 23 00 00 HDMI OUTPUT - BE EF 06 00 31 32 02 00 51 23 00 00 HDBaseT LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 41 11 = BLANK on 20 = Mute off AVMT ? AV Mute inquiry 21 = Mute on 30 = AV Mute off 31 = AV Mute on (continued on next page) LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
  • Page 42 , see the web site of the Japan Business Machine and Information System Industries Association. URL: http://pjlink.jbmia.or.jp/ • Trademark PJLink is a trademark applied for trademark rights in Japan, the United States of America and other countries and areas. LW502/LWU502 User's Manual - Technical 020-001099-01 Rev. 1 (06-2016)
