Smart Connect Multi-loop Installation Manual
Power Supply

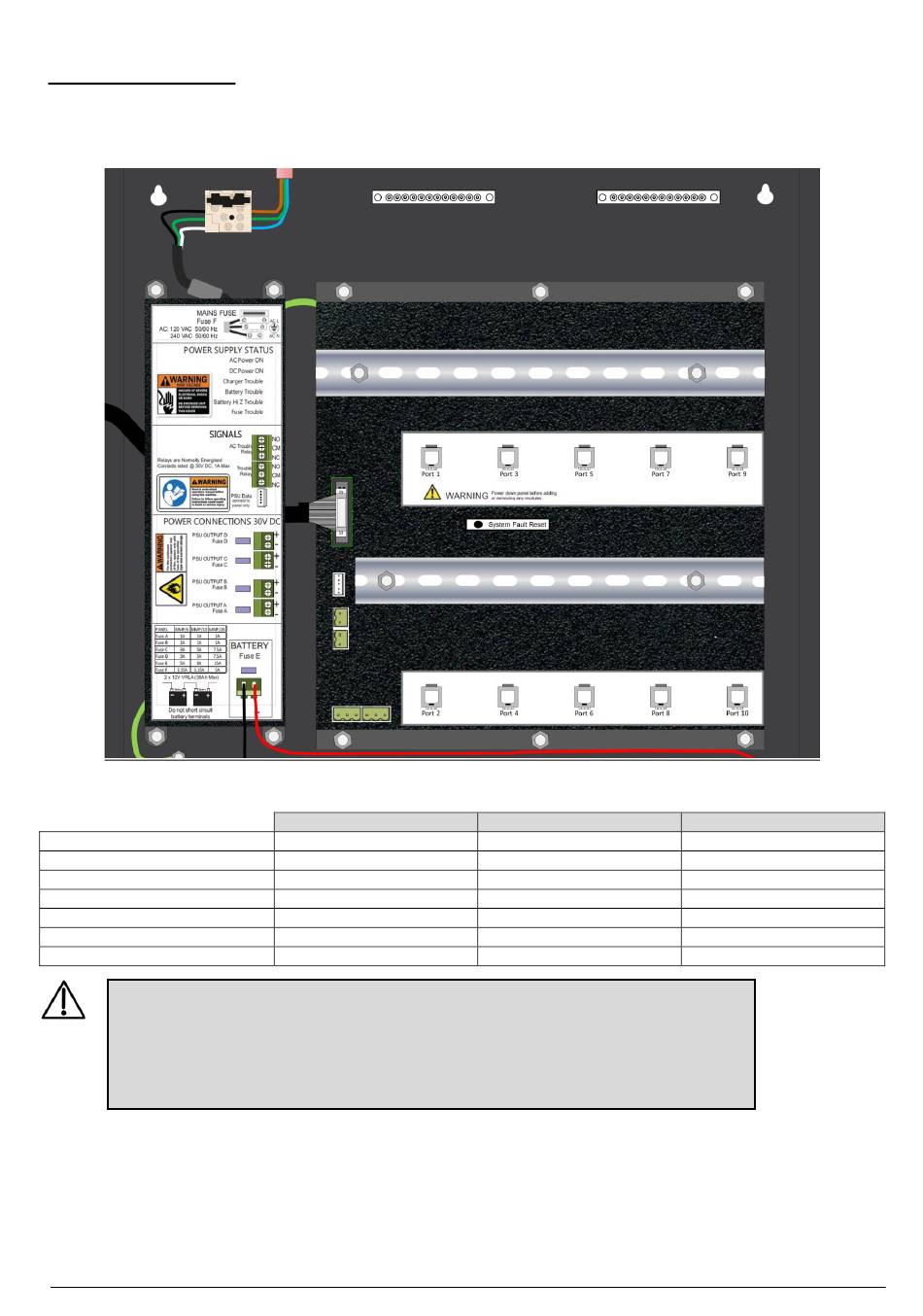

The SMART Connect Multi-loop Power supply is located on the left hand size of the back box.
There are three different power supply sizes, depending on whether the panel is a 6 ports, 10 ports, or 26 ports version.
PSU Specifications
AC Line Voltage
Power Supply Rating
DC Output Voltage
Maximum Output Current
Battery Voltage
Battery Charging Capability
Max Battery Charging Current
ATTENTION:
•
DO NOT EXCEED POWER SUPPLY RATINGS, OR MAXIMUM CURRENT RATINGS.
•
TO AVOID SPARKING, CONNECT BATTERIES AFTER THE SYSTEM'S MAIN AC POWER IS
TURNED ON.
•
COMPLY WITH VOLTAGE MARKINGS AS SPECIFIED ON LABELS.
www.zetaalarmsystems.com
SMART6
120 – 230 VAC
400 Watts
30 VDC
11.1 Amp
27.6VDC
Up to 14.0Ah
1.1 Amp
SMART10
120 – 230 VAC
400 Watts
30 VDC
11.1 Amp
27.6VDC
Up to 38.0Ah
2.2 Amp
SMART26
120 – 230 VAC
400 Watts
30 VDC
11.1 Amp
27.6VDC
Up to 38.0Ah
2.2 Amp
