Smart Connect Multi-loop Installation Manual
Assembling the panel
The SMART Connect Multi-loop is a modular panel, designed to be flexible to install. It will normally be supplied as the base panel with
a number of expansion modules packed separately. The Modules are Din Rail Mounted, and connect to the panel's motherboard with a
small RJ45 cable (supplied with the module). The Base panel is available in 3 sizes:
SMART6
SMART10
SMART26

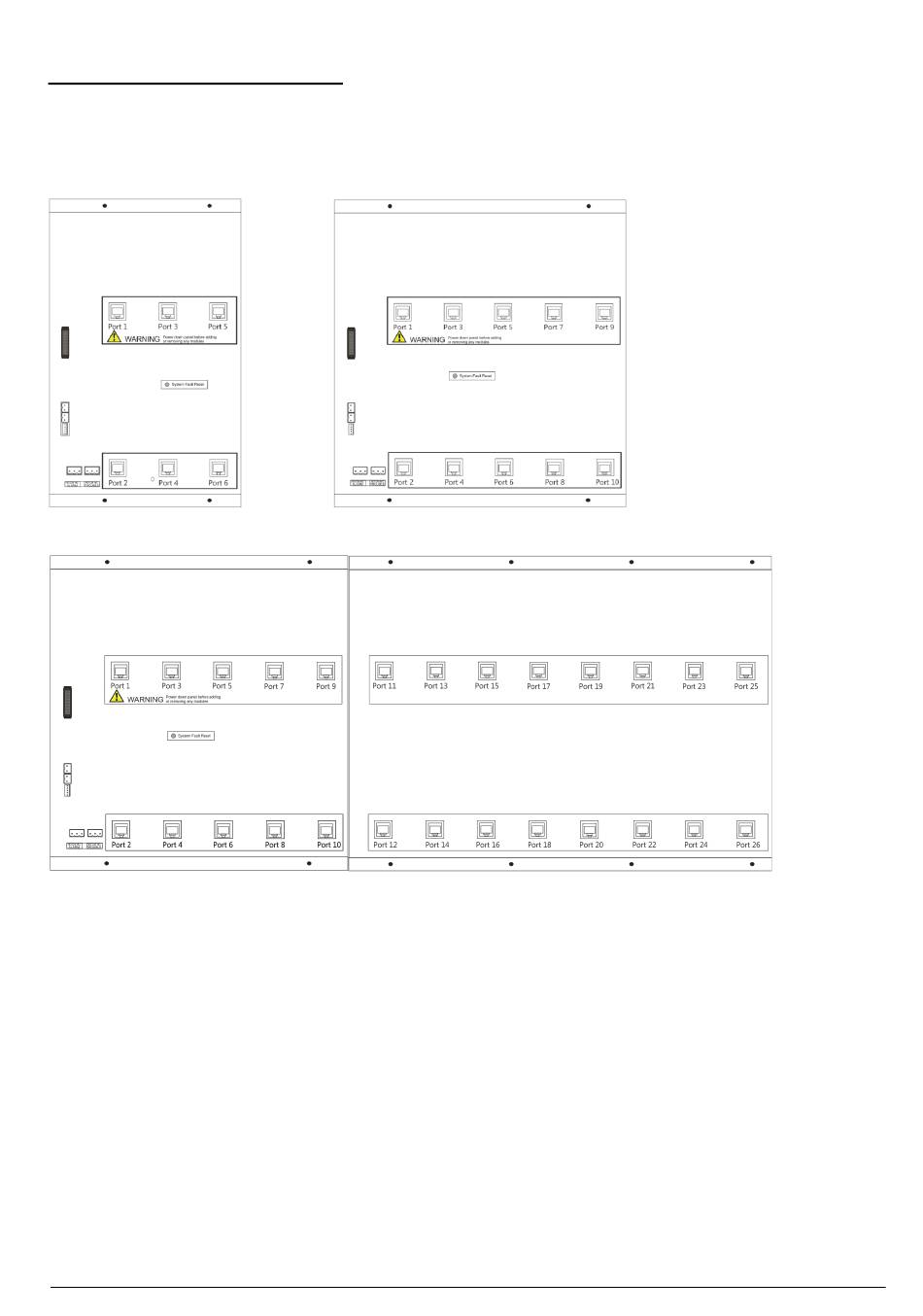

The above diagrams show the port addresses for each panel size
A typical panel set up would include:-
At least one module for initiating devices (Either a conventional zone module [SCM-ZMM], or an addressable loop module [SCM-LCM])
At least one module for warning devices (Either a conventional sounder circuit module [SCM-ACM], or an addressable loop module
[SCM-LCM])
