Smart Connect Multi-loop Installation Manual

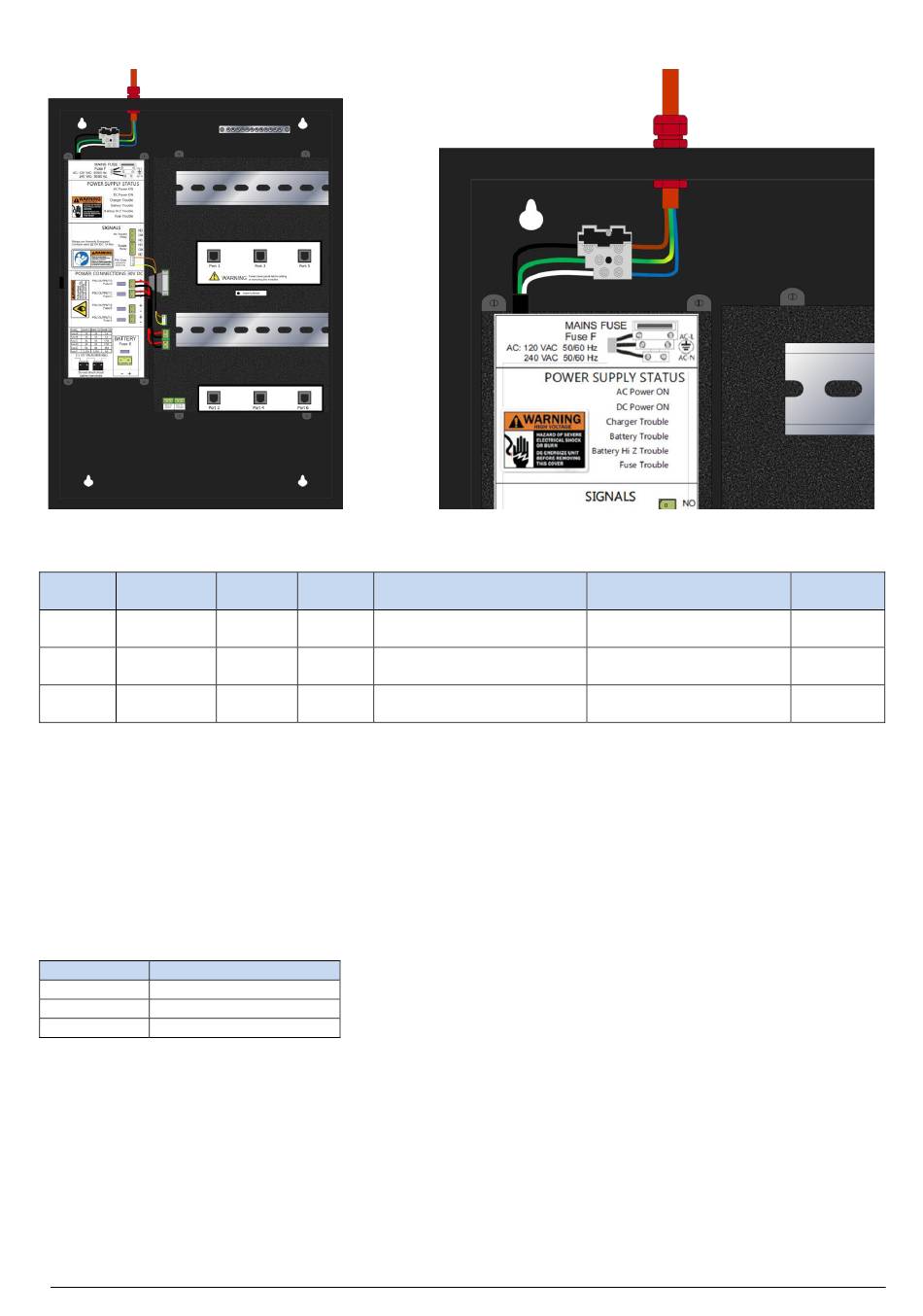

Figure 3: Wiring the mains power supply
Panel
Input Voltage
SMART6
120-230V AC
SMART10
120-230V AC
SMART26
120-230V AC
Battery Wiring
The SMART Connect Multi-loop panel uses two 12 Volt batteries, wired in series to give a 24 Volt back-up supply.
The +ve of one battery is connected to the red battery lead.
The –ve of the other battery is connected to the black battery lead.
The –ve of the first battery is connected to the +ve of the second battery using the link wire supplied.
Recommended Battery Types:
Panel
Recommended Battery size
SMART6
2 x Powersonic 12V,14Ah
SMART10
2 x Powersonic 12V,38Ah
SMART26
2 x Powersonic 12V,38Ah
To calculate the required backup battery capacity, use the information in Appendix B
Other makes and sizes of battery may be suitable. Calculate the standby requirements to determine the most suitable size of batteries.
Figure 4: Battery location and connection
www.zetaalarmsystems.com
Input
PSU Cage
Max Input Current
Frequency
Size
47-63 Hz
400W
3.6Amax@120Vac & Full-Load,
2.0Amax@220Vac & Full-Load
47-63 Hz
400W
3.6Amax@120Vac & Full-Load,
2.0Amax@220Vac & Full-Load
47-63 Hz
400W
3.6Amax@120Vac & Full-Load,
2.0Amax@220Vac & Full-Load
Max Surge current
65A peak, 1.2ms duration,
<0.25A2s@230Vac, Cold Start
65A peak, 1.2ms duration,
<0.25A2s@230Vac, Cold Start
65A peak, 1.2ms duration,
<0.25A2s@230Vac, Cold Start
Fuse
Installed
3.15A (230
V AC)
3.15A (230
V AC)
3.15A (230
V AC)
15
