Smart Connect Multi-loop Installation Manual

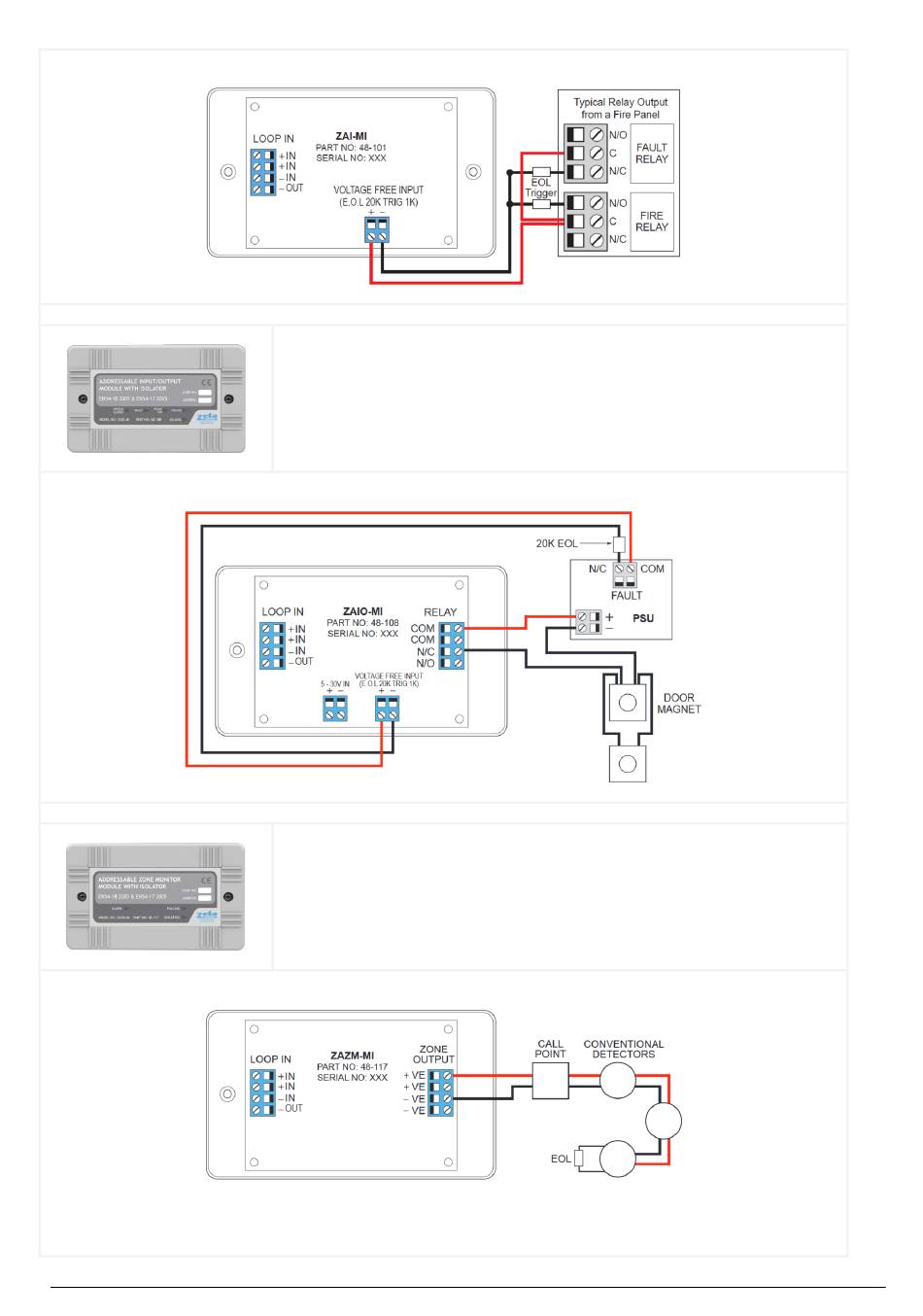

ZAI-MI typical wiring diagram (E.g. connecting to fire panel / beam detector / UV IR detector):
ZAIO-MI
ZAIO-MI typical wiring diagram(E.g. connecting to a door magnet):
ZAZM-MI
ZAZM-MI typical wiring diagram(E.g. connecting to conventional initiating devices):
www.zetaalarmsystems.com
ZAIO-MI – The ZAIO-MI is used when both an input needs to be monitored and at the same
time a local output (relay output) needs to be triggered to switch ancillary equipment on
or off during an alarm condition. Typical output triggering includes: controlling lift
operation during an alarm, starting fire pump, stopping ventilation fans etc.
ZAZM-MI – The ZAZM-MI is a conventional zone that can be used for conventional devices
and/or for special detectors that are not available in addressable form such as UV
detectors, Aspiration detectors etc. For more details and connection information consult
the installation guide.
33
