Smart Connect Multi-loop Installation Manual
The control cabinet can be semi flushed into a wall or surface mounted.
Locating the Fire Alarm Control Panel
The control panel should be installed per BS5839-1:2017 recommendations: -
The panel should be close to the main entrance of the building, so that it can be viewed by any fire-fighting personnel entering the
building.
•
It should be fitted to a sturdy wall that will not flex unnecessarily.
•
It should ideally be mounted at eye level, for it to be viewed without need of a ladder.
•
It should be installed in a dry, weatherproof place, preferably NOT in direct sunlight.
•
It should be easily accessible, so that the responsible person can perform their regular fire alarm checks.
The panel must be in a clean, dry position, which is not subject to excessive shock or vibration and at least 2 meters away from pager
systems or any other radio transmitting equipment. The operating temperature range is -5°C (23°F) to 40°C (104°F); maximum humidity
is 95%. The panel will withstand vibrations between 5 & 150 Hz.
Mounting the Enclosure
Fix the enclosure to the wall using all the mounting points provided:
SMART6: 4 x Mounting Points. See Fig 1
SMART10: 4 x Mounting Points See Fig 2
SMART26: 6 x Mounting Points. See Fig 3
Check the build and condition of the wall to decide a suitable screw fixing. The mounting holes are designed for No 8 roundhead or
countersunk woodscrews (or similar). Remove any debris from the enclosure. Take care not to damage the FACP during installation.
ATTENTION: DO NOT DRILL ANY ENTRY HOLES INTO THE PSU SECTION OF THE ENCLOSURE WHICH IS LOCATED ON THE LEFT-
HAND SIDE OF THE CONTROL PANEL CABINET.

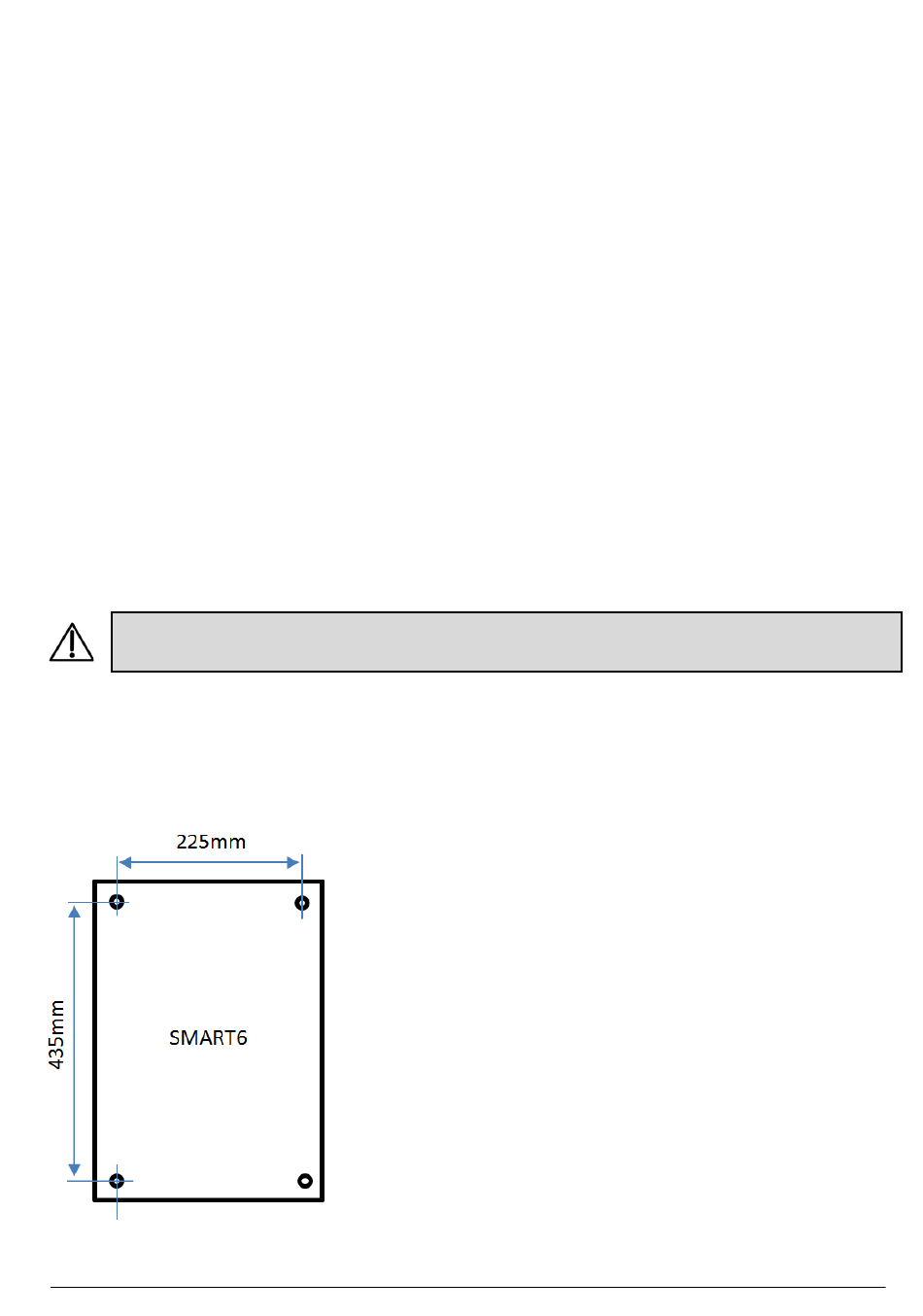

Mounting Hole Dimensions
Fig 1
www.zetaalarmsystems.com
11
