- Page 1 MULTI-LOOP PANEL Installation Manual Doc: GLT-261-7-1 Doc: GLT-261-7-10 Issue: W.I.P Date: 25/08/2018 Issue: Date: 14.08.2020 GLT-261-7-3...
-
Page 2: Table Of Contents
Smart Connect Multi-loop Installation Manual Contents Introduction ........................................4 About the Smart Connect Multi-loop Fire Alarm System .......................... 4 Overall Features ......................................4 Additional Features ....................................... 5 Document Conventions ....................................6 Circuits and Zones ..................................... 6 Wiring Styles ......................................6 System Components ..................................... - Page 3 Smart Connect Multi-loop Installation Manual SCM-ZMM Specifications ..................................27 SCM-NM Field Wiring Connections ................................. 28 Wiring Recommendations for Network Wiring (SCM-NM) ........................29 SCM-NM Specifications ................................... 29 SCM-LCM Field Wiring Connections ................................ 30 Wiring Recommendations for Loop Card Modules (SCM-LCM) ......................31 Loop Device Wiring and Device Information ............................
-
Page 4: Introduction
Smart Connect Multi-loop Installation Manual Introduction About the Smart Connect Multi-loop Fire Alarm System The Smart Connect Multi-loop Control Panel is a powerful intelligent fire alarm control system with a user friendly 4.3 inch touch screen display, which has been designed to provide reliable life safety and property protection, while also being easy to install, commission and operate. -
Page 5: Additional Features
Smart Connect Multi-loop Installation Manual EXPLANATION OF ACCESS LEVELS The Smart Connect System has the following access levels. ACCESS ACCESSED BY ACCESS METHOD FUNCTIONS ACCESSED LEVEL View Panel General public Default state Override delay (if used) Start sounders stop sounders Enter user access code Responsible person Silence buzzer... -
Page 6: Document Conventions
Smart Connect Multi-loop Installation Manual Document Conventions Circuits and Zones Circuit = this refers to an actual electrical interface, initiating (detection), indicating (signal), or relay. Zone = this is a logical concept for a fire alarm protected area, and will consist of at least one circuit. The terms zone and circuit are used interchangeably throughout this manual. -
Page 7: System Components
Smart Connect Multi-loop Installation Manual System Components Panel Types Model Description • W:380mm x H:530mm • Space for up to 6 small modules SMART6 • Supplied with a 400W 15A PSU • Space for 2 x 14Ah batteries. • W:380mm x H:530mm •... -
Page 8: Panel Modules
Smart Connect Multi-loop Installation Manual • W:1000mm x H:665mm • Space for up to 26 small modules • Equipped with panel printer SMART26/P/64 • Equipped with 64 zone LED expansion • Supplied with a 400W 15A PSU • Space for 2 x 38Ah batteries •... - Page 9 Smart Connect Multi-loop Installation Manual RS485 Network The SMART Connect Multi- Communication Protocol: RS485 loop system network has the Maximum Network Size: 64 Nodes facility to monitor, indicate Maximum Distance Between Nodes: 1KM (using a and control the functions of a screened data cable) or 100M (using a standard fire alarm installation, thus fireproof cable)
-
Page 10: Control Panel Installation And Dimensions
Smart Connect Multi-loop Installation Manual Control Panel Installation and Dimensions Enclosure Dimensions See table 1 for full dimensions see table 1. Table 1 Panel Side Bottom Knock Knock Knock Battery outs outs outs Size SMART/6 535mm 385mm 355mm 150mm 120mm 505mm 2 x 14Ah SMART/10... -
Page 11: Locating The Fire Alarm Control Panel
Smart Connect Multi-loop Installation Manual The control cabinet can be semi flushed into a wall or surface mounted. Locating the Fire Alarm Control Panel The control panel should be installed per BS5839-1:2017 recommendations: - The panel should be close to the main entrance of the building, so that it can be viewed by any fire-fighting personnel entering the building. - Page 12 Smart Connect Multi-loop Installation Manual Fig 2 Fig 3 www.zetaalarmsystems.com...
-
Page 13: Planning Cable Entry
Smart Connect Multi-loop Installation Manual Planning Cable Entry The Knock-out cable entries can be easily removed by tapping with a suitable screwdriver or chisel from outside the control panel box. Alternatively, the entry can be drilled out, using a 20mm hole cutter. Care should be taken if using a drill. Consider removing the PCBs to prevent damaging them. - Page 14 Smart Connect Multi-loop Installation Manual Recommendations The Mains supply to the FACP is fixed wiring, using Fire resisting 3-core cable (Between 1 mm² and 2.5mm²), or equivalent, fed from an isolating double pole switch fused spur, and fused at 5A. This should be secure from unauthorized operation and be marked ‘FIRE ALARM: DO NOT SWITCH OFF’.
-
Page 15: Battery Wiring
Smart Connect Multi-loop Installation Manual Figure 3: Wiring the mains power supply Panel Input Voltage Input PSU Cage Max Input Current Max Surge current Fuse Frequency Size Installed SMART6 120-230V AC 47-63 Hz 400W 3.6Amax@120Vac & Full-Load, 65A peak, 1.2ms duration, 3.15A (230 2.0Amax@220Vac &... - Page 16 Smart Connect Multi-loop Installation Manual Panel Charger Boost Charger Float PSU Cage Size Max Charger Current Max Battery Size Fuse Voltage Voltage Installed SMART6 29.5V DC 27.6V DC 400W 1.1A 2 x 12V, 14 Ah SMART10 29.5V DC 27.6V DC 400W 2.2A 2 x 12V, 38 Ah...
- Page 17 Smart Connect Multi-loop Installation Manual www.zetaalarmsystems.com...
-
Page 18: Assembling The Panel
Smart Connect Multi-loop Installation Manual Assembling the panel The SMART Connect Multi-loop is a modular panel, designed to be flexible to install. It will normally be supplied as the base panel with a number of expansion modules packed separately. The Modules are Din Rail Mounted, and connect to the panel’s motherboard with a small RJ45 cable (supplied with the module). -
Page 19: Initial Power Up
Smart Connect Multi-loop Installation Manual Initial Power Up It is recommended to initially power up the panel with no modules connected to confirm that the base panel is functioning as expected. To do this:- Check that the AC cable is connected correctly and the proper grounding has been made (as per BS5839-1:2017). Close the panel door Turn on the mains power. -
Page 20: Trm Rj45 Port Address Designation
Smart Connect Multi-loop Installation Manual TRM RJ45 Port Address Designation Each RJ45 port on the SMART Connect Multi-loop termination PCB has its own unique port address. This port address is important to keep note of as it is displayed on Alarm/Fault messages and is used when configuring or setting up cause and effects on the panel (See operation manual GLT-261-7-11). -
Page 21: Power On Procedure
Smart Connect Multi-loop Installation Manual Power on Procedure After the above has been completed, turn the panel on (Via AC Only). The panel will follow the same power up sequence described in initial power up section above The panel will now display one of the following messages Message Meaning The Panel has not detected any modules fitted during its... -
Page 22: Field Wiring
Smart Connect Multi-loop Installation Manual The panel has detected no module changes, so has powered up and started running Check that the module configuration is as expected using the and to navigate the through the port numbers. Press the ✓icon to confirm the changes. -
Page 23: Scm-Acm Field Wiring Connections
Smart Connect Multi-loop Installation Manual SCM-ACM Field Wiring Connections Typical Wiring Diagram (Class B) – Zeta Conventional Sounders Typical Wiring Diagram (Class B) - Bell Devices NOTE: When an ACM is configured as a bell output, the “24V On” LED on the front of the module will be flashing ON/OFF. www.zetaalarmsystems.com... -
Page 24: Wiring Recommendations For Alarm Circuits (Scm-Acm)
Smart Connect Multi-loop Installation Manual Typical Wiring Diagram (Auxiliary 24VDC) NOTE: This wiring diagram demonstrates the option to program one or more SCM-ACM outputs to become a regulated constant 24VDC output. NOTE: When an alarm circuit is configured as a 24v aux output, the “24V On”... -
Page 25: Compatible Warning Devices
Smart Connect Multi-loop Installation Manual Compatible Warning Devices Alarm Circuit Devices Xtratone Conventional Wall Sounder ZXTB Xtratone Conventional Combined Wall Sounder Beacon Conventional Raptor Sounder ZRPB Conventional Raptor Sounder Beacon Maximum Warning Devices per Circuit Some of the above warning devices have selectable settings for sound and beacon output. Please refer to the device manuals to calculate the maximum number allowed on each alarm circuit. -
Page 26: Scm-Rm Field Wiring Connections
Smart Connect Multi-loop Installation Manual SCM-RM Field Wiring Connections NOTE: When an MRM relay is configured as an alarm output, it will act as a common alarm relay, and cannot be controlled by cause and effect. SCM-RM Specifications Multi Relay Modules (SCM-RM) Contact Form 3 x Form C Switching Capacity... -
Page 27: Scm-Zmm Field Wiring Connections
Smart Connect Multi-loop Installation Manual SCM-ZMM Field Wiring Connections NOTE: It is recommended that all manual call points are connected at the start of the zone. NOTE: It is not recommended to mix different detector manufacturers on a zone. (SCM-ZMM) Wiring Recommendations for Zone Monitor Circuits Wire Gauge (AWG) Maximum Wiring Run (Metres) -
Page 28: Scm-Nm Field Wiring Connections
Smart Connect Multi-loop Installation Manual SCM-NM Field Wiring Connections Ring Topology NOTE: It is recommended to install the network in a ring topology for protection against open circuit and short circuit faults. Bus Topology www.zetaalarmsystems.com... -
Page 29: Wiring Recommendations For Network Wiring (Scm-Nm)
Smart Connect Multi-loop Installation Manual (SCM-NM) Wiring Recommendations for Network Wiring The SMART Connect Multi-loop network can support up to 64 panels. RECOMMENDED CABLE: Belden type SCM-NM Specifications Network Module (SCM-NM) Maximum Network Size 64 Nodes Maximum Distance Between Nodes 1KM (with screened data cable) Communication Protocol RS485... -
Page 30: Scm-Lcm Field Wiring Connections
Smart Connect Multi-loop Installation Manual SCM-LCM Field Wiring Connections Class X Wiring Note: Detectors can be fitted to isolator bases, or fitted between isolator modules for Class X wiring. Manual stations should be fitted between isolator modules. Class A Wiring Note: If a loop using Class A wiring is used for 2 or more detection zones, short circuit isolators, or devices with built in short circuit isolators (such as interfaces) should be fitted to the zone boundaries to prevent a single short circuit affecting more than one... -
Page 31: Wiring Recommendations For Loop Card Modules (Scm-Lcm)
Smart Connect Multi-loop Installation Manual (SCM-LCM) Wiring Recommendations for Loop Card Modules The SCM-LCM’s are rated for 450mA each, but it is recommended that you leave an allowance ~100mA for any future loop expansion. Wire Gauge (AWG) Maximum Wiring Run (Metres) 1290 2000 NOTE:... - Page 32 Smart Connect Multi-loop Installation Manual MKII-AOH–The Fyreye MKII optical heat Detector contains both an optical smoke detector and a thermistor temperature sensor for full fire detection. The smoke sensor uses a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber. The heat sensor has a single thermistor arrangement that gives an alarm at a temperature of 57°C.
- Page 33 Smart Connect Multi-loop Installation Manual ZAI-MI typical wiring diagram (E.g. connecting to fire panel / beam detector / UV IR detector): ZAIO-MI ZAIO-MI – The ZAIO-MI is used when both an input needs to be monitored and at the same time a local output (relay output) needs to be triggered to switch ancillary equipment on or off during an alarm condition.
- Page 34 Smart Connect Multi-loop Installation Manual ZASC-MI ZASC-MI –The ZASC-MI can be used to supply a monitored 24Vdc to operate external relays and as a conventional sounder circuit to run bells or beacon flashers where the current consumption prohibits the use of addressable loop powered devices. The unit also includes input connections to monitor the external power supply status and report the findings to the addressable control panel.
- Page 35 Smart Connect Multi-loop Installation Manual MKII-AXT& MKII-AXTB MKII-AXT & MKII-AXTB – The Xtratone addressable sounder beacon is a small, high output device, suitable for indoor wall mounted applications. It is available in red or white and has a selection of 16 alarm tones, selectable at the control panel. Termination of field wiring is made to the back box for a clean first fix.
-
Page 36: Scm-Lcm Specifications
Smart Connect Multi-loop Installation Manual SCM-LCM Specifications Loop Card Modules (SCM-LCM) Circuit Voltage 28V + 9V Data (Nominal) Address Phase: Pulse Width Modulation Protocol Data Reply Phase: Synchronous 20mA Current Pulses Circuit Type Power limited & Supervised Recommended cable sizes 1.0mm to 2.5mm (18 AWG to 14 AWG) -
Page 37: Power Supply
Smart Connect Multi-loop Installation Manual Power Supply The SMART Connect Multi-loop Power supply is located on the left hand size of the back box. There are three different power supply sizes, depending on whether the panel is a 6 ports, 10 ports, or 26 ports version. PSU Specifications SMART6 SMART10... -
Page 38: Psu Fuses
Smart Connect Multi-loop Installation Manual PSU Fuses All fuses are quick blow, rating as shown. Panel Designation SMART6 SMART10 SMART26 Fuse A Fuse B Fuse C 7.5A 7.5A 7.5A Fuse D 7.5A 7.5A 7.5A Fuse E Fuse F 3.15A 3.15A 3.15A Power Supply Status Indications Indication... -
Page 39: Panel Printer
Smart Connect Multi-loop Installation Manual Panel Printer (SMART Connect Multi-loop systems with a fitted panel printer only) Loading/Replacing the Printer Paper Roll The SMART Connect Multi-loop uses a CUSTOM PLUS2 RS232 panel printer. This printer will accept printer rolls that meet the following requirements: Specification PLUS2... -
Page 40: Status Led's
Smart Connect Multi-loop Installation Manual Status LED’s The status of the device is shown via visual feedback. The status LED identifies the hardware status of the printer. The table below shows the various LED signals and their corresponding status. Status LED LED Colour Description Green... -
Page 41: Fault Finding
Smart Connect Multi-loop Installation Manual Fault Finding See troubleshooting section in SMART Connect Multi-loop Operation Manual (Doc: GLT-261-7-11) Appendix A: SPECIFICATIONS Code Description SMART Connect Multi-loop Fire Alarm Panel EN 54-2 Standard EN 54-4 Main Supply Mains Voltage 120-240V AC Mains Frequency 50-60 Hz Battery Secondary Supply... -
Page 42: Functions Required By European Standard En54-2
Smart Connect Multi-loop Installation Manual FUNCTIONS REQUIRED BY EUROPEAN STANDARD EN54-2 The Smart Connect Multi-loop fire alarm control panel provides the following mandatory and optional functions as prescribed by the European standard EN54-2. (a) Mandatory Functions The mandatory functions and corresponding indications provided by this panel are: •... -
Page 43: Appendix C: Loop Device Address Setting
Smart Connect Multi-loop Installation Manual SCM-MIM Multi Input Module SCM-ZMM Zone Monitor Module SCM-RM Multi Relay Module SCM-ACM Alarm Circuit Module 32+ alarm load SCM-NM Network Module - RS485 SCM-PM RS232 Module (Printer Driver) 37** MKII-AOP MKII Addressable Optical Smoke Detector MKII Addressable Combined Optical Smoke &... - Page 44 Smart Connect Multi-loop Installation Manual Smoke and heat detectors can be tested when plugged on the programmer and alarm LED’s can be verified prior to installation. The MKII Programmer can also re-program the OPT-HEAT detectors to either heat or smoke detector. GLT-252-7-1).
- Page 45 Smart Connect Multi-loop Installation Manual OFF OFF ON OFF ON ON ON OFF OFF OFF OFF OFF ON OFF ON OFF ON OFF OFF ON OFF ON OFF ON ON ON OFF OFF OFF OFF OFF OFF ON OFF ON OFF ON OFF OFF ON OFF ON...
-
Page 46: Appendix D: Product Codes
Smart Connect Multi-loop Installation Manual OFF ON OFF OFF ON ON OFF 196 OFF ON OFF OFF 239 OFF OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF ON ON OFF 197 OFF ON OFF ON OFF OFF 240 OFF OFF OFF OFF OFF OFF ON OFF OFF ON... - Page 47 Smart Connect Multi-loop Installation Manual Zone Monitor Module (ZMM) + 10kΩ Zone Monitor Module (ZMM) - 10kΩ Network Module (NM) terminal A N/A (Isolated from system voltage) Network Module (NM) terminal B N/A (Isolated from system voltage) Multi-Relay Module (RM) NO N/A (Isolated from system voltage) Multi-Relay Module (RM) CM N/A (Isolated from system voltage)
- Page 48 Smart Connect Multi-loop Installation Manual Installation Manual Modification History Issue Date Changes Added manual modification history table. Impedance values changed to 10KΩ. 19/03/2020 Removed non-LED MMP10 & MMP26 version. Changed PSU specifications. Added functions required by European standard section. www.zetaalarmsystems.com...
Need help?
Do you have a question about the SMARTCONNECT SMART6 and is the answer not in the manual?
Questions and answers

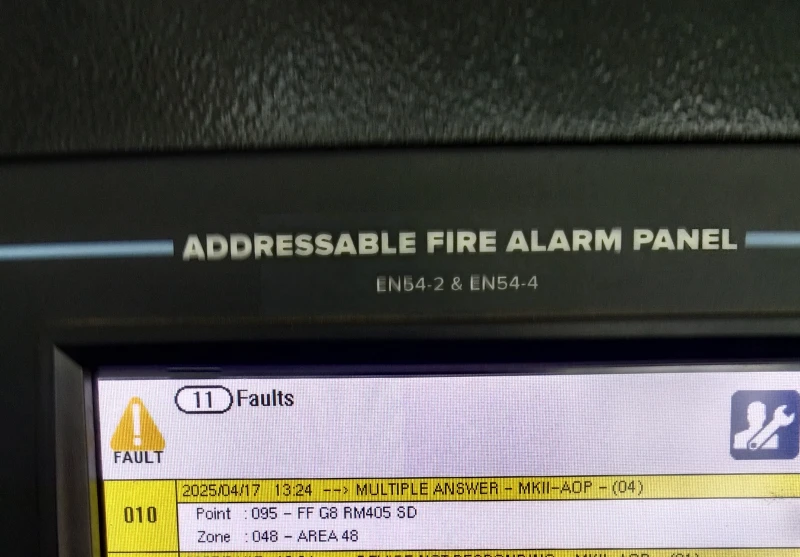

How to identify double address detector
