Smart Connect Multi-loop Installation Manual
SCM-ACM Field Wiring Connections

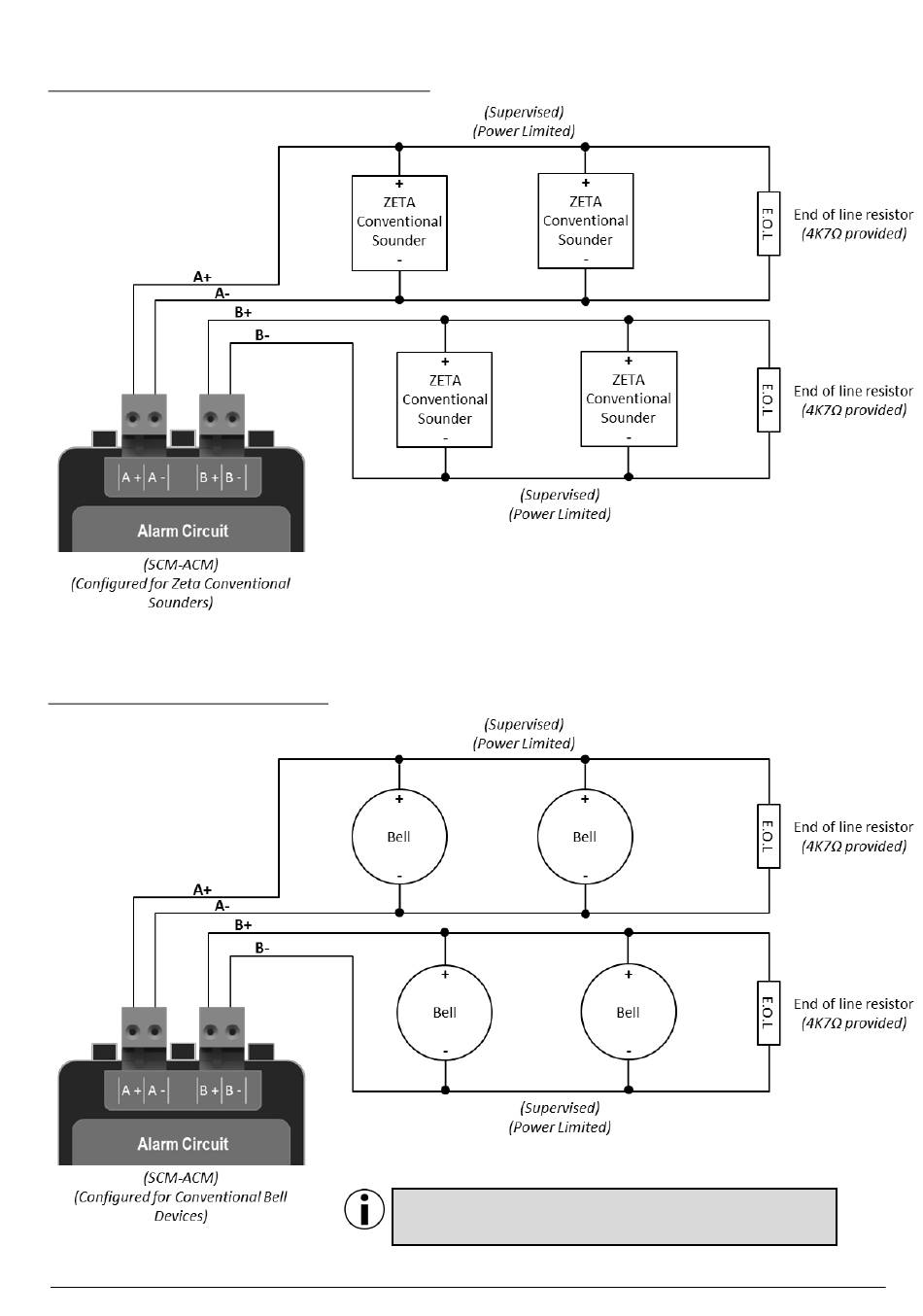

Typical Wiring Diagram (Class B) – Zeta Conventional Sounders
Typical Wiring Diagram (Class B) - Bell Devices
www.zetaalarmsystems.com
NOTE: When an ACM is configured as a bell output, the "24V On"
LED on the front of the module will be flashing ON/OFF.
