DIMENSIONS - B-CABINET SIZE UNIT (NO ENERGY RECOVERY)

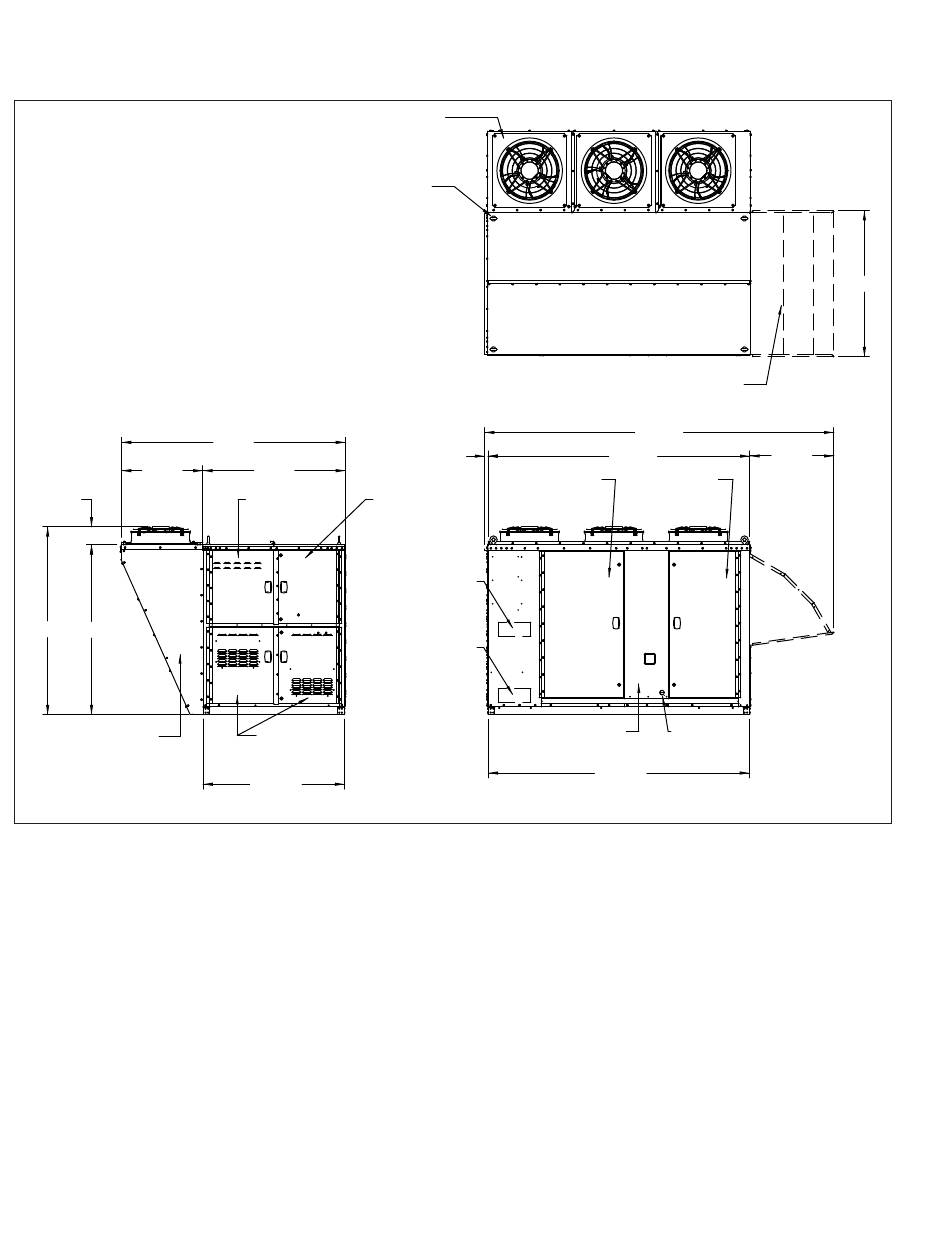

Figure 40.1 - Unit Dimensions (inches)
31.18
6.93
71.90 64.97
CONDENSING
SECTION
ACCESS PANEL
(ALSO OTHER SIDE)
40
CONDENSING SECTION
FAN QUANTITY:
(2) FOR 7 AND 10 TON UNITS
(3) FOR 13 , 15, AND 20 TON UNITS
(4) 1.5" LIFTING EYE BOLTS
(EACH CORNER OF UNIT)
85.78
54.60
COMPRESSOR CONTROLS
COMPARTMENT COMPARTMENT
ACCESS DOOR ACCESS DOOR
APPROXIMATE AREA
FOR SIDE ELECTRICAL
SERVICE ENTRANCE
(refer to Warning label
on unit for exact location)
APPROXIMATE AREA
FOR SIDE GAS
SERVICE ENTRANCE
(refer to Warning label
on unit for exact location)
GAS/ELECTRIC
HEAT (OPTION)
COMPARTMENT
ACCESS DOORS
54.00
(BASE)
1.33
SUPPLY AIR BLOWER
& EVAPORATOR/
HOT GAS REHEAT COIL
ACCESS DOOR
EVAPORATOR &
HOT GAS REHEAT COIL
SERVICE ACCESS PANEL
MCP15-500.9
ACCESSORY RAINHOOD
AND BIRDSCREEN
(FIELD INSTALLED ACCESSORY)
133.75
32.17
100.25
FILTER & DAMPERS
ACCESS DOOR
1" NPT EVAP
COIL DRAIN
PAN PIPE
CONNECTION
100.00
(BASE)
55.90
