COMBUSTIBLE MATERIAL & SERVICE CLEARANCES

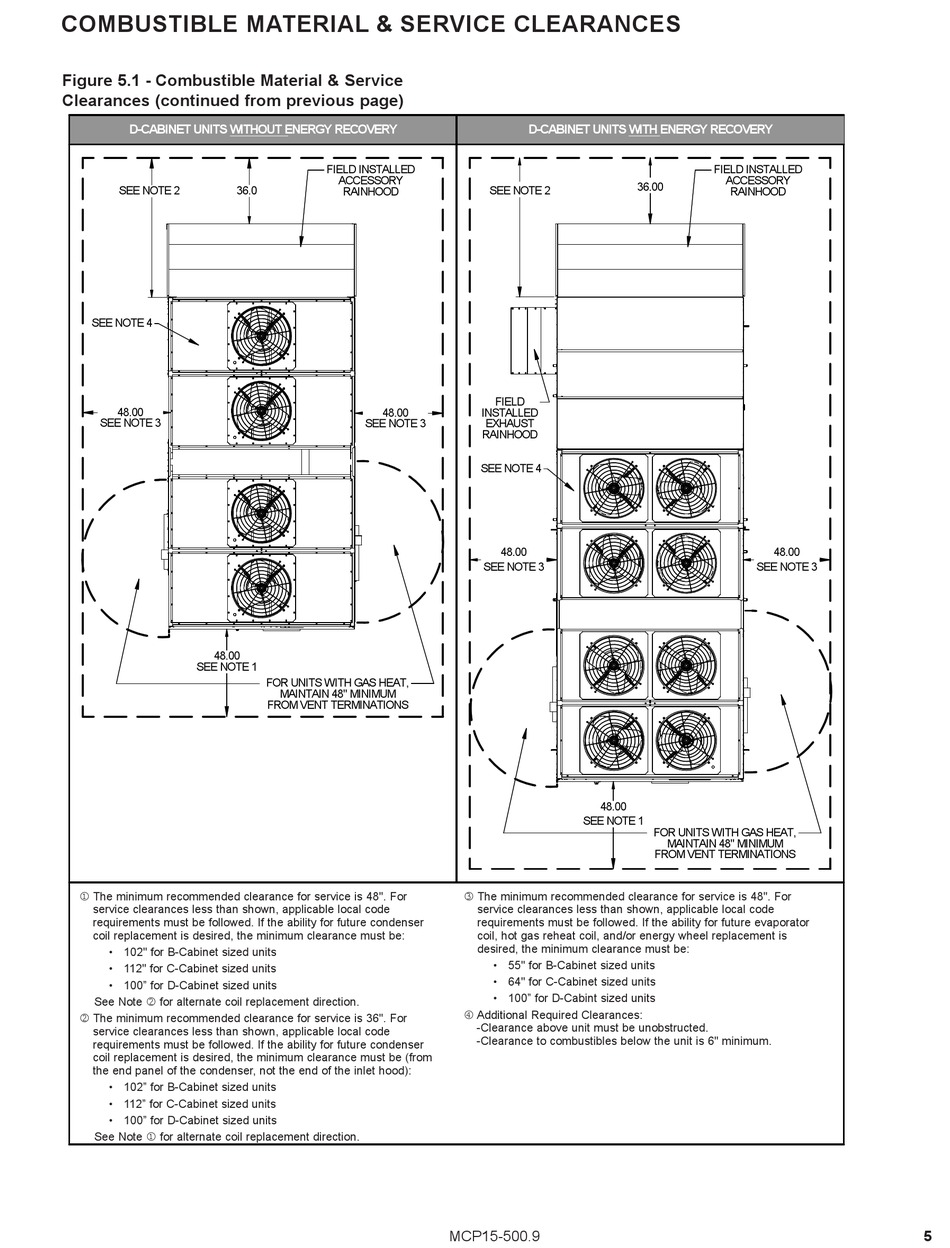

Figure 5.1 - Combustible Material & Service
Clearances (continued from previous page)
D-CABINET UNITS WITHOUT ENERGY RECOVERY
SEE NOTE 2 36.0
SEE NOTE 4
48.00
SEE NOTE 3
48.00
SEE NOTE 1
j The minimum recommended clearance for service is 48". For
service clearances less than shown, applicable local code
requirements must be followed. If the ability for future condenser
coil replacement is desired, the minimum clearance must be:
• 102" for B-Cabinet sized units
• 112" for C-Cabinet sized units
• 100" for D-Cabinet sized units
See Note k for alternate coil replacement direction.
k The minimum recommended clearance for service is 36". For
service clearances less than shown, applicable local code
requirements must be followed. If the ability for future condenser
coil replacement is desired, the minimum clearance must be (from
the end panel of the condenser, not the end of the inlet hood):
• 102" for B-Cabinet sized units
• 112" for C-Cabinet sized units
• 100" for D-Cabinet sized units
See Note j for alternate coil replacement direction.
FIELD INSTALLED
ACCESSORY
RAINHOOD
48.00
SEE NOTE 3
FOR UNITS WITH GAS HEAT,
MAINTAIN 48" MINIMUM
FROM VENT TERMINATIONS
D-CABINET UNITS WITH ENERGY RECOVERY
SEE NOTE 2
FIELD
INSTALLED
EXHAUST
RAINHOOD
SEE NOTE 4
48.00
SEE NOTE 3
48.00
SEE NOTE 1
l The minimum recommended clearance for service is 48". For
service clearances less than shown, applicable local code
requirements must be followed. If the ability for future evaporator
coil, hot gas reheat coil, and/or energy wheel replacement is
desired, the minimum clearance must be:
• 55" for B-Cabinet sized units
• 64" for C-Cabinet sized units
• 100" for D-Cabint sized units
m Additional Required Clearances:
-Clearance above unit must be unobstructed.
-Clearance to combustibles below the unit is 6" minimum.
MCP15-500.9
FIELD INSTALLED
ACCESSORY
36.00
RAINHOOD
48.00
SEE NOTE 3
FOR UNITS WITH GAS HEAT,
MAINTAIN 48" MINIMUM
FROM VENT TERMINATIONS
