UNIT COMPONENT IDENTIFICATION / LOCATION

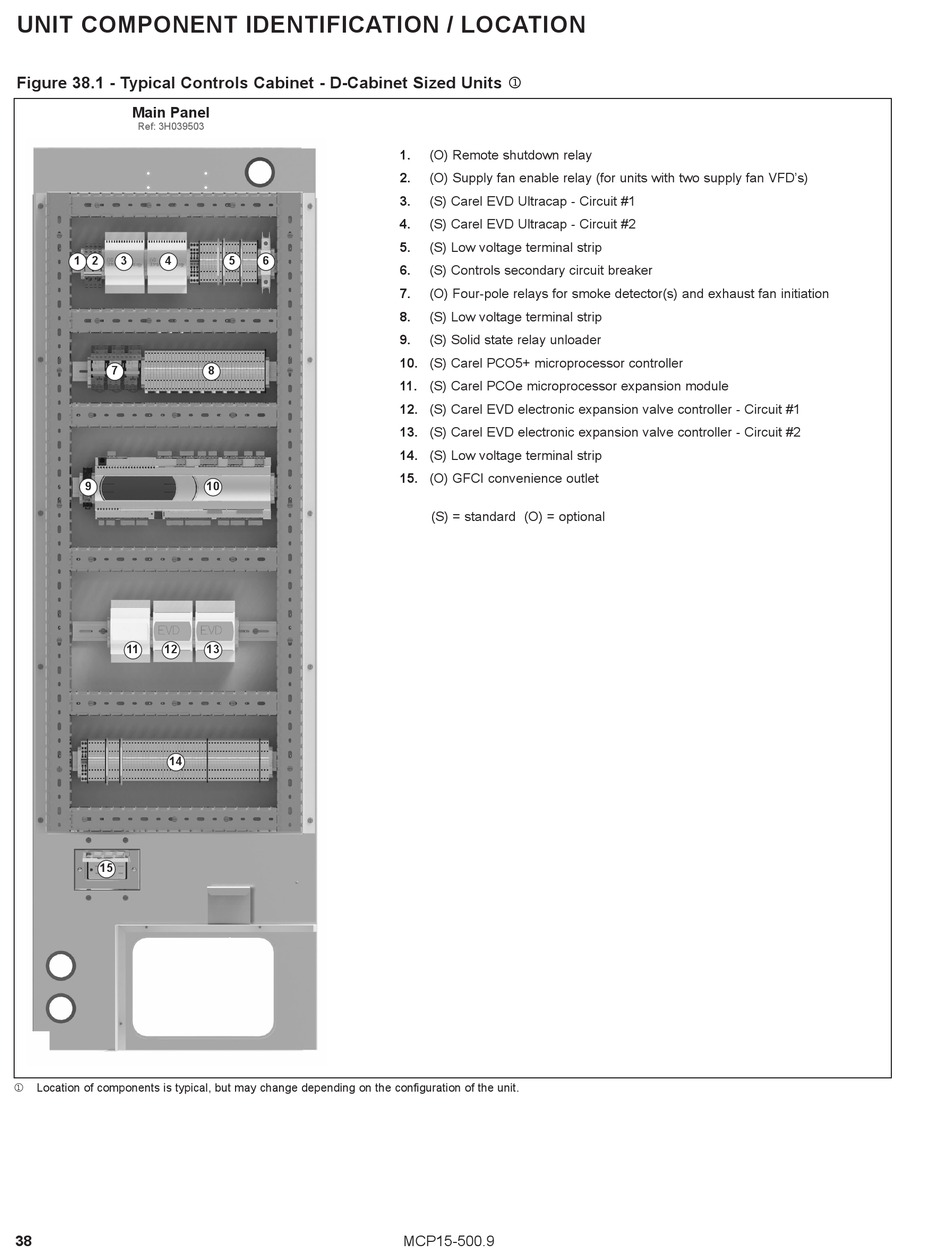

Figure 38.1 - Typical Controls Cabinet - D-Cabinet Sized Units j
Main Panel
Ref: 3H039503
1 2 3 4
7
9
11 12
14
15
Location of components is typical, but may change depending on the configuration of the unit.
j
38
5 6
8
10
13
1. (O) Remote shutdown relay
2. (O) Supply fan enable relay (for units with two supply fan VFD's)
3.
(S) Carel EVD Ultracap - Circuit #1
4. (S) Carel EVD Ultracap - Circuit #2
5. (S) Low voltage terminal strip
6. (S) Controls secondary circuit breaker
7. (O) Four-pole relays for smoke detector(s) and exhaust fan initiation
8. (S) Low voltage terminal strip
9. (S) Solid state relay unloader
10. (S) Carel PCO5+ microprocessor controller
11. (S) Carel PCOe microprocessor expansion module
12. (S) Carel EVD electronic expansion valve controller - Circuit #1
13. (S) Carel EVD electronic expansion valve controller - Circuit #2
14. (S) Low voltage terminal strip
15. (O) GFCI convenience outlet
(S) = standard (O) = optional
MCP15-500.9
