MODEL IDENTIFICATION & SERIAL PLATES
Model Identification
Depending on options included, the unit may have more than one Serial Plate. Figures 62.1 and 62.2 show the Serial Plate for the
main unit, while Figures 62.3 and 62.4 show the Serial Plate for the gas heat option. When servicing, repairing or replacing parts
on these units, locate the model Serial Plate of the unit and always give the complete Model Number and Serial Number of the
unit. The Serial Plate is located on the door of the controls cabinet. For a complete description of the model number, see the Model
Nomenclature on pages 63-66. Serial plates shown are examples and may vary slightly from what is on the actual unit(s). Refer to
the unit(s) for the actual serial plates.

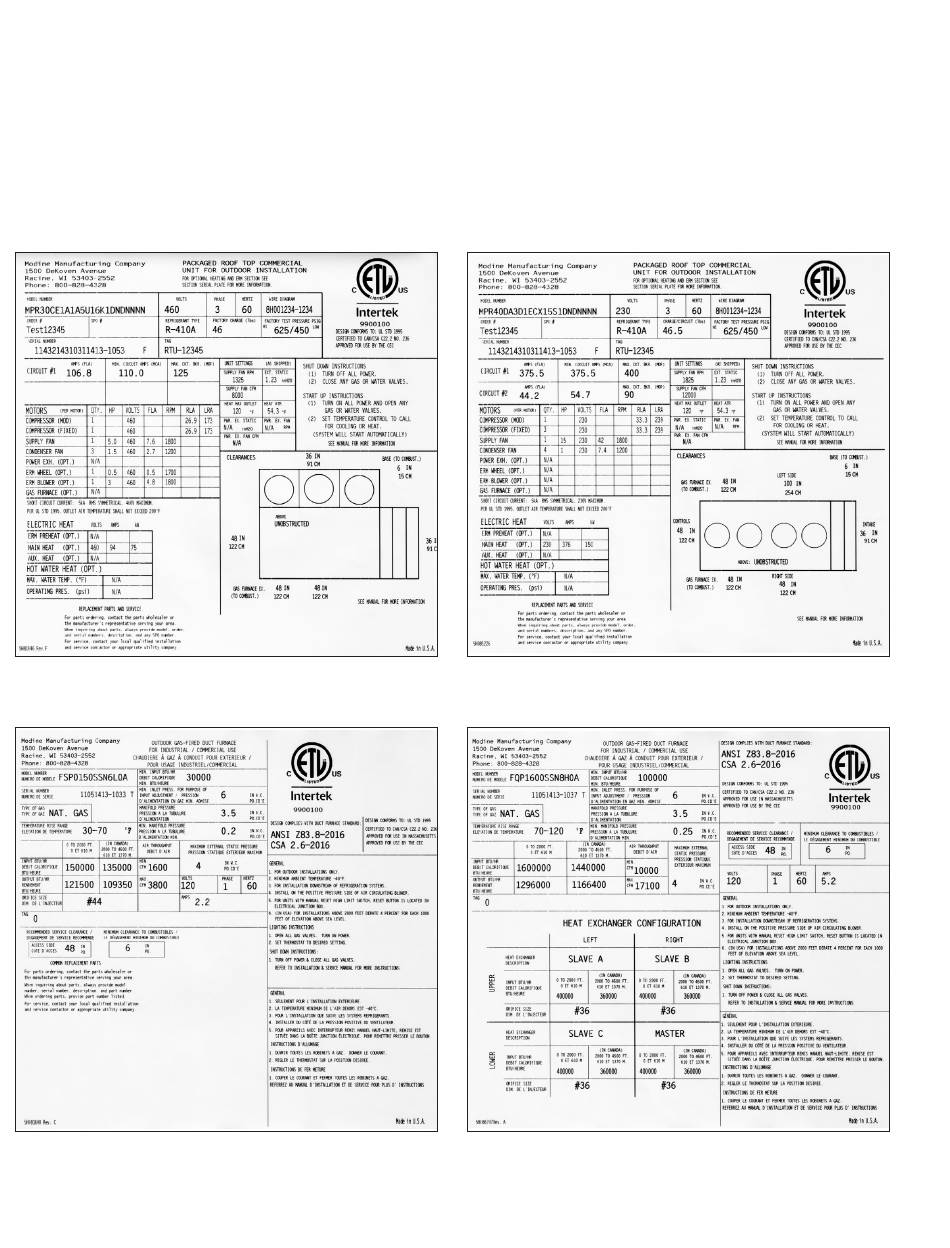

Figure 62.1
Serial Plate Example - B & C-Cabinet Units
Figure 62.3
Serial Plate Example - B-Cabinet Furnace
62
Figure 62.2
Serial Plate Example - D-Cabinet Unit
Figure 62.4
Serial Plate Example - C & D-Cabinet Furnaces
