Modine Manufacturing MPR Series Installation And Service Manual page 29

START-UP PROCEDURE - CONTINUED

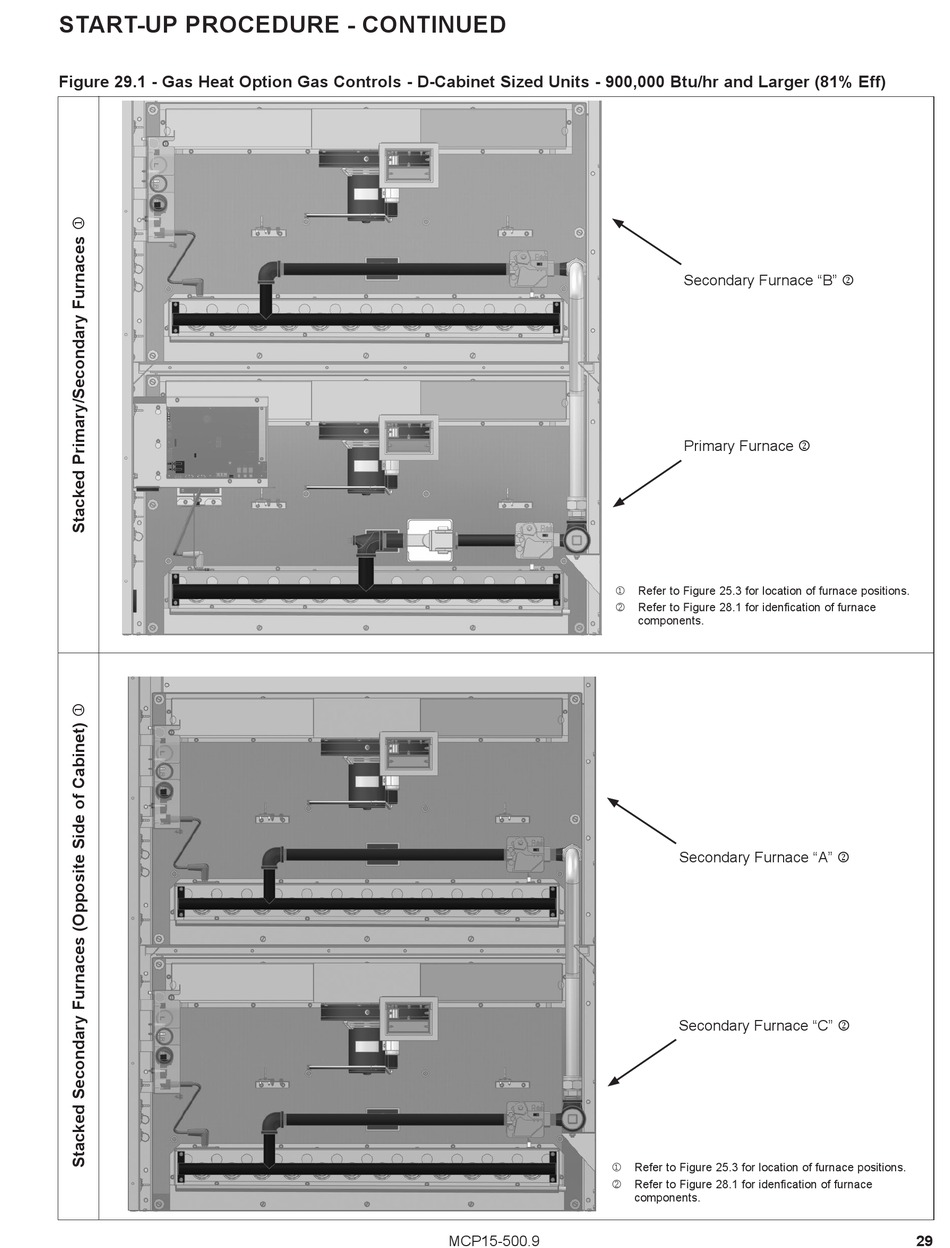

Figure 29.1 - Gas Heat Option Gas Controls - D-Cabinet Sized Units - 900,000 Btu/hr and Larger (81% Eff)
j
k
j
k
MCP15-500.9
Secondary Furnace "B" k
Primary Furnace k
Refer to Figure 25.3 for location of furnace positions.
Refer to Figure 28.1 for idenfication of furnace
components.
Secondary Furnace "A" k
Secondary Furnace "C" k
Refer to Figure 25.3 for location of furnace positions.
Refer to Figure 28.1 for idenfication of furnace
components.
