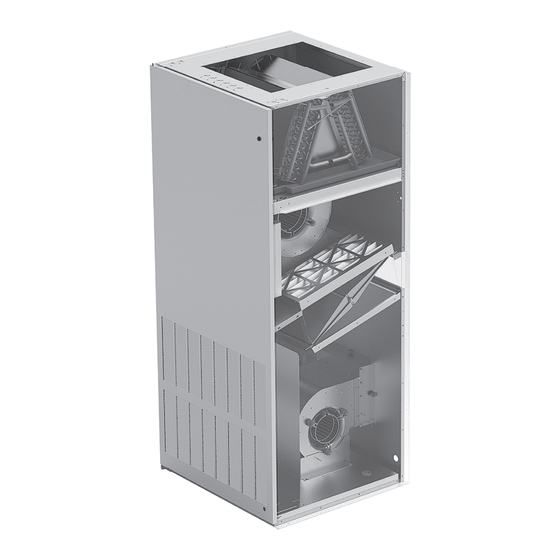

Chilled and/or Hot Water Vertical Unit Ventilator
THIS MANUAL IS THE PROPERTY OF THE OWNER.
PLEASE BE SURE TO LEAVE IT WITH THE OWNER WHEN YOU LEAVE THE JOB.
INSTALLATION AND SERVICE MANUAL
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death, and could cause
exposure to substances which have been
determined by various state agencies to cause
cancer, birth defects or other reproductive harm.
Read the installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.servicing this equipment.
AVERTISSEMENT
Une installation, un réglage, une altération, une
réparation ou une maintenance impropre risque de
causer des dommages, des blessures ou la mort,
et d'engendrer une exposition à des substances
dont certains États ont déterminé qu'elles
étaient cancérogènes ou pouvaient causer des
malformations à la naissance et des problèmes
de reproduction. Lisez bien les instructions
d'installation, d'utilisation et de maintenance avant
d'installer ou de réparer cet appareil.
IMPORTANT
The use of this manual is specifically intended
for a qualified installation and service agency.
A qualified installation and service agency must
perform all installation and service of these
appliances.
IMPORTANT
Ce manuel est spécifiquement destiné au
personnel d'une entreprise qualifiée d'installation
et d'entretien. Toutes les opérations d'installation
et d'entretien doivent être confiées à une
entreprise qualifiée.
INSPECTION ON ARRIVAL
1. Inspect unit upon arrival. In case of damage, report
immediately to transportation company and your local factory
sales representative.
2. Check serial plate on unit to verify that the power supply
meets available electric power at the point of installation.
3. Inspect unit upon arrival for conformance with description of
product ordered (including specifications where applicable).
AIR3-500.5
September, 2023
Sentinel
Models UVV and UVD
WARNING
5H1015460000
®
Advertisement
Table of Contents
Related Manuals for Modine Manufacturing Airedale Sentinel UVV Series
Summary of Contents for Modine Manufacturing Airedale Sentinel UVV Series
-
Page 1: Inspection On Arrival
AIR3-500.5 5H1015460000 September, 2023 INSTALLATION AND SERVICE MANUAL Sentinel ® Chilled and/or Hot Water Vertical Unit Ventilator Models UVV and UVD WARNING Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death, and could cause exposure to substances which have been determined by various state agencies to cause cancer, birth defects or other reproductive harm. -
