START-UP PROCEDURE - CONTINUED

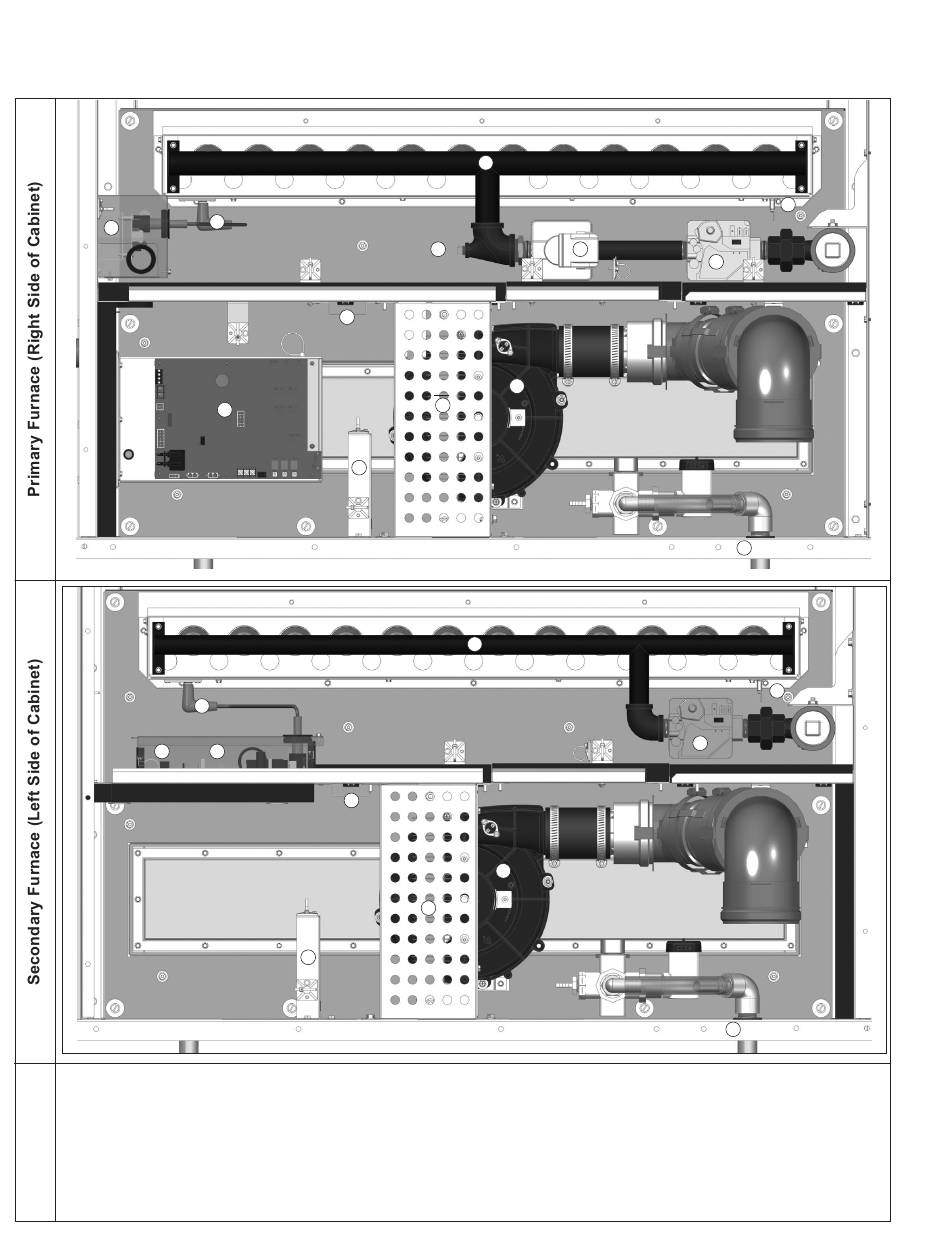

Figure 30.1 - Gas Heat Option Gas Controls - D-Cabinet Units - 620,000 Btu/hr and Smaller (94% Eff)
5
6
1. Power exhauster
2.
Maxitrol EXA STAR modulating gas valve (primary furnace only)
3. Main combination gas valve
4. High limit control (hidden behind piping as shown)
5. Solid state ignition control board
6. Furnace control board (cover removed)
7.
Vent differential pressure proving switch
30
8
4
6
7
8
5
4
7
11
9 2
1
13
11
1
13
8. Direct spark ignitor
9.
Manifold pressure tap on manifold tee (primary furnace only)
10. Flame sensor
11. Manifold piping with gas orifices
12. Heat exchanger tube drain tray with drain line
13. Cabinet strip heater
