DIMENSIONS - UNIT

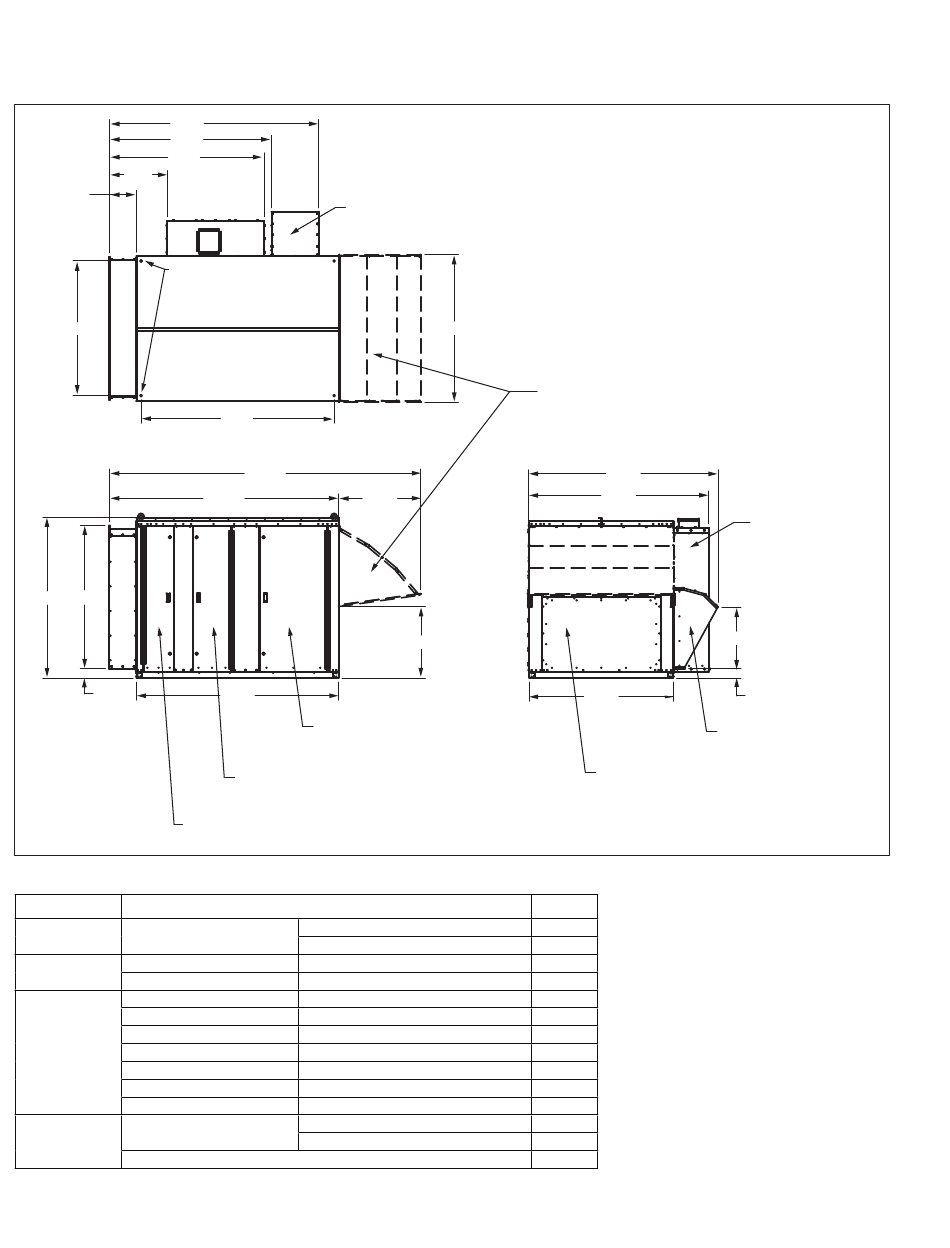

Figure 10.1 - Unit Dimensions
93.54
72.36
69.18
25.87
12.10
(4) 1.50" LIFTING EYE BOLTS
(EACH CORNER OF UNIT)
60.14
63.93
71.60
4.24
CONTROLS & EXHAUST
FILTER ACCESS DOOR
Table 10.1 - Base Model Weight (approx) - lbs.
Section
Digit 7=M
Base Unit
(3Å Molecular Sieve)
Exhaust Air Digit 9=3
Blower
Digit 9=6
Digit 10=Q
Digit 10=R
Digit 10=S
Motors
Digit 10=T
(most common)
Digit 10=U
Digit 10=V
Digit 10=W
Electric Preheat
(Digit 14)
Other
10
EXHAUST AIR
GRAVITY DAMPER &
OUTLET HOOD
86.19
139.22
102.45 36.77
90.28
EXHAUST BLOWER &
FRESH AIR FILTER
ACCESS DOOR
ENERGY RECOVERY
WHEEL ACCESS DOOR
Description
20kW Nominal (derated for 208V)
Inlet Hood (Ships loose for field installation)
65.92
ACCESSORY RAINHOOD
AND BIRDSCREEN
(FIELD INSTALLED ACCESSORY)
31.98
Weight
46" Wheel
1967
58" Wheel
2113
20" ANPA 126
28" ANPA 173
1HP 29
1-1/2HP 37
2HP 40
3HP 69
5HP 84
7-1/2HP 115
10HP 128
None 0
103
72
ATH15-520.2
84.64
80.56
ENERGY WHEEL
ECONOMIZER BY-PASS
DAMPERS WITH
ACCESS DOOR AND
TOP MOUNTED ACTUATOR
27.47
4.10
64.28
EXHAUST AIR
GRAVITY DAMPER &
OUTLET HOOD
EXHAUST BLOWER
DRIVE ACCESS PANEL
