Gate Below
Data acquisition is enabled whenever ATRIG goes below the THRESH_LO level. Acquisition is suspended
whenever the ATRIG signal goes above the THRESH_LO level. This is a level-sensitive gating mode.
Trigger
Acquired Data
Gate Negative Hysteresis
Data acquisition is enabled whenever ATRIG goes above the THRESH_HI level. Acquisition is suspended
whenever the ATRIG signal goes below the THRESH_LO level. The hysteresis level is set by THRESH_LO.
This is a level-sensitive gating mode.
+2
+1
0
-1
-2
Trigger
Acquired Data
+2
+1
0
-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
+2
+1
0
-1
-2
+1
0
-1
-2

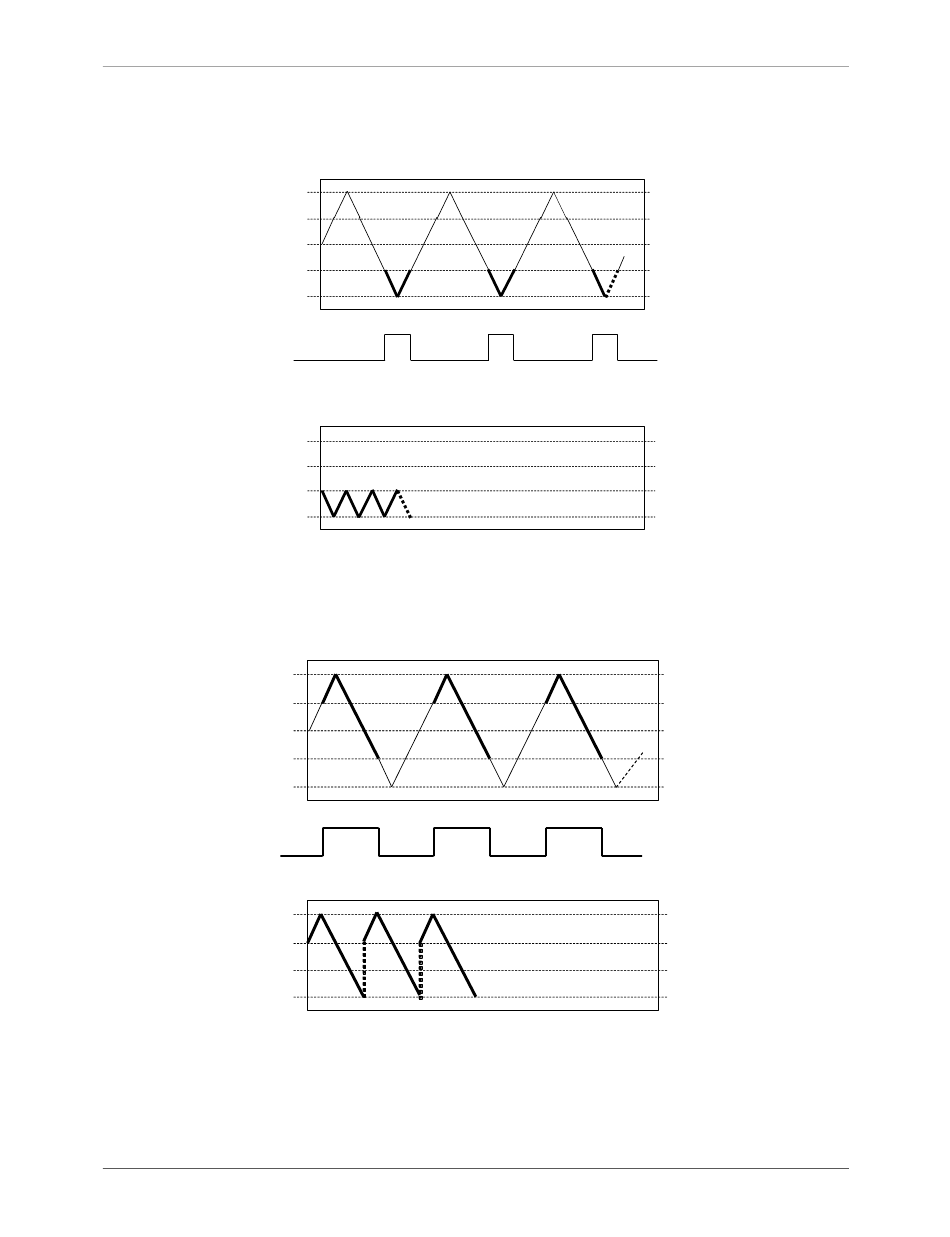

Figure 22. Gate Below
