PCI-DAS6030 & PCI-DAS6032 User's Guide
Trigger Below
The acquisition will begin when ATRIG signal fist goes below the THRESH_LO level. This mode is non-
retriggerable.
Trigger
Acquired Data
Gate Above
Data acquisition is enabled whenever ATRIG goes above the THRESH_HI level. Acquisition is suspended
whenever the ATRIG signal goes below the THRESH_HI level. This is a level-sensitive gating mode.
+2
+2
+1
+1
0
0
-1
-1
-2
-2
Trigger
Result
+2
+1
0
-1
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
+2
+1
0
-1
-2
+2
+1
0
-1
-2

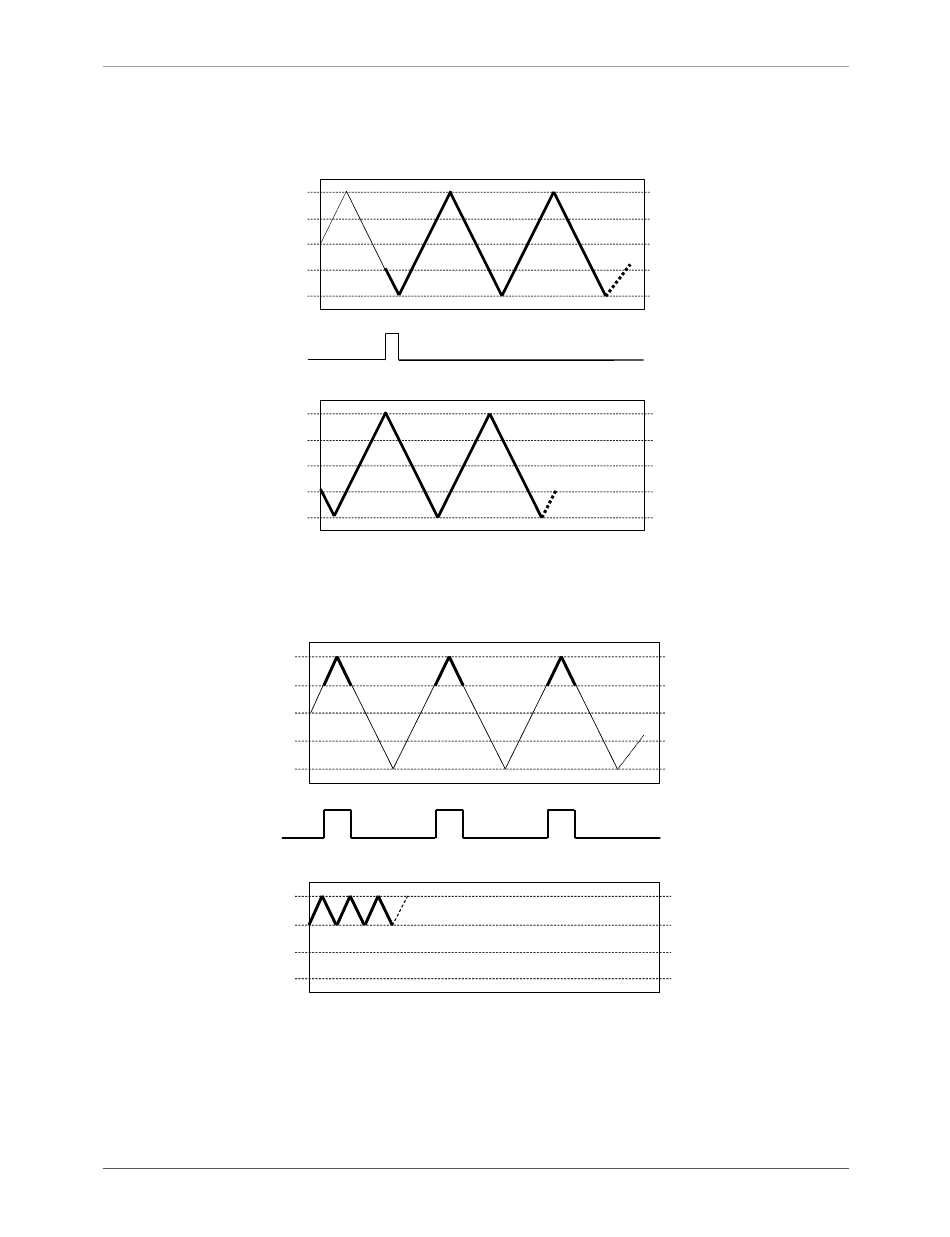

Figure 20. Trigger Negative Slope
Figure 21. Gate Above
24
Functional Details
Thresh_LO
Thresh_HI
