FUNCTION MODES:

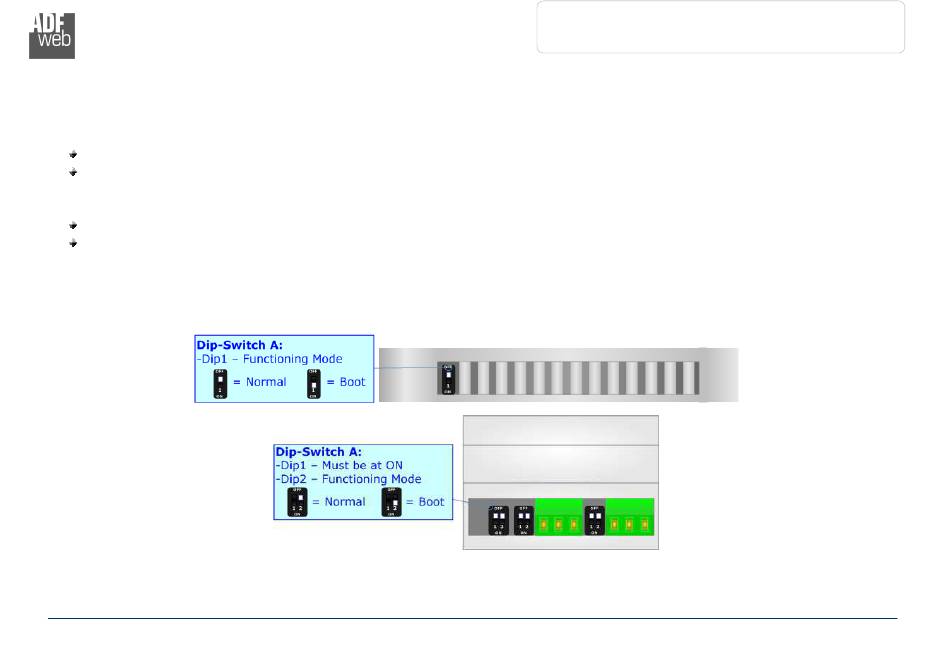

The device has got two function modes depending on the position of the 'Dip-Switch A'.
HD67510-A1-xxx version:
With 'Dip1 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
With 'Dip1 of Dip-Switch A' at "ON" position, is used for uploading the Project and/or Firmware.
HD67510-B2 version:
The first, with 'Dip2 of Dip-Switch A' at "OFF" position, is used for the normal working of the device.
The second, with 'Dip2 of Dip-Switch A' at "ON" position, is used for uploading the Project and/or Firmware.
For the operations to follow for the updating, see 'UPDATE DEVICE' section.
According to the functioning mode, the LEDs will have specific functions, see 'LEDS' section.
ADFweb.com S.r.l.
User Manual Modbus Slave / Modbus TCP Master
Document code: MN67510_ENG
Revision 2.100
Page 10 of 33
