ADF Web HD67563-A1 User Manual

Profibus slave / ethernet - converter
Hide thumbs

Advertisement

Quick Links

Download this manual
Industrial Electronic Devices
User Manual
Revision 1.100
English
PROFIBUS Slave / Ethernet - Converter
(Order Code: HD67563-A1, HD67563M)
For Website information:
www.adfweb.com?Product=HD67563
For Price information:
www.adfweb.com?Price=HD67563-A1
www.adfweb.com?Price=HD67563M
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports (A1 version)
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
Axis Solutions Pvt Ltd is the Authorized Distributor of
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
www.axisindia.in | info@axisindia.in
User Manual PROFIBUS Slave / Ethernet
Document code: MN67563_ENG
Revision 1.100
HD67563-A1
For others Gateway / Adapters:
PROFIBUS to
See also the following link:
www.adfweb.com?Product=HD67551
www.adfweb.com?Product=HD67552
www.adfweb.com?Product=HD67553
www.adfweb.com?Product=HD67554
www.adfweb.com?Product=HD67564M
www.adfweb.com?Product=HD67565M
For others Converter / Adapter:
Ethernet to
See also the following link:
www.adfweb.com?Product=HD67503
www.adfweb.com?Product=HD67513
www.adfweb.com?Product=HD67213
Do you have an your customer protocol?
See the following link:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
in India
in India
in India
in India
Page 1 of 28
HD67563M
(CANopen)
(CAN)
(J1939)
(DeviceNet)
(Modbus TCP Client)
(Modbus TCP Server)
(CANopen)
(CAN)
(J1939)

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD67563-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for ADF Web HD67563-A1

Summary of Contents for ADF Web HD67563-A1

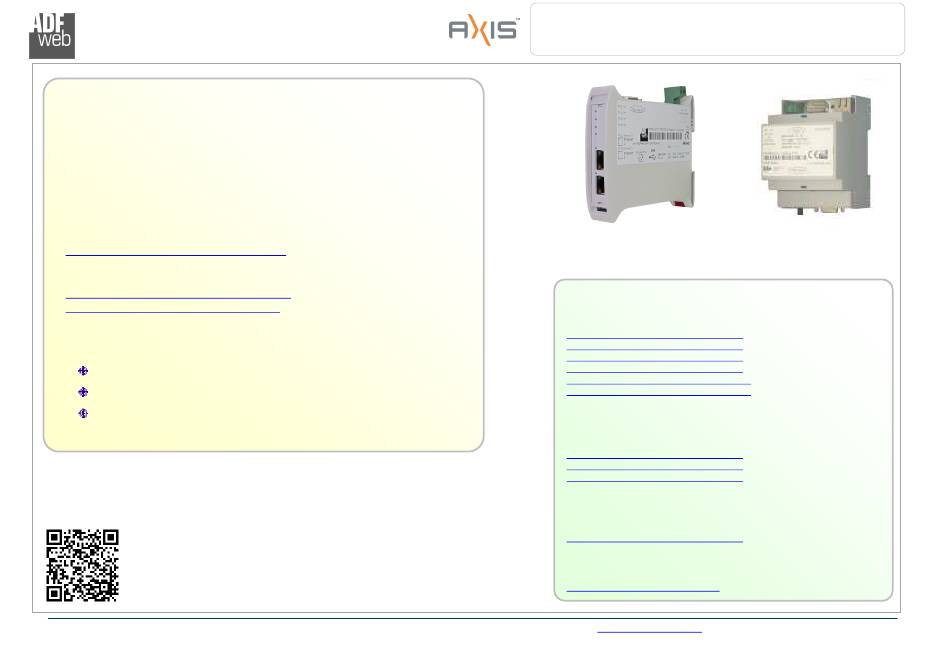

  • Page 1 Document code: MN67563_ENG Revision 1.100 Page 1 of 28 Industrial Electronic Devices User Manual Revision 1.100 English PROFIBUS Slave / Ethernet - Converter (Order Code: HD67563-A1, HD67563M) For Website information: HD67563M HD67563-A1 www.adfweb.com?Product=HD67563 For Price information: www.adfweb.com?Price=HD67563-A1 For others Gateway / Adapters: www.adfweb.com?Price=HD67563M...
