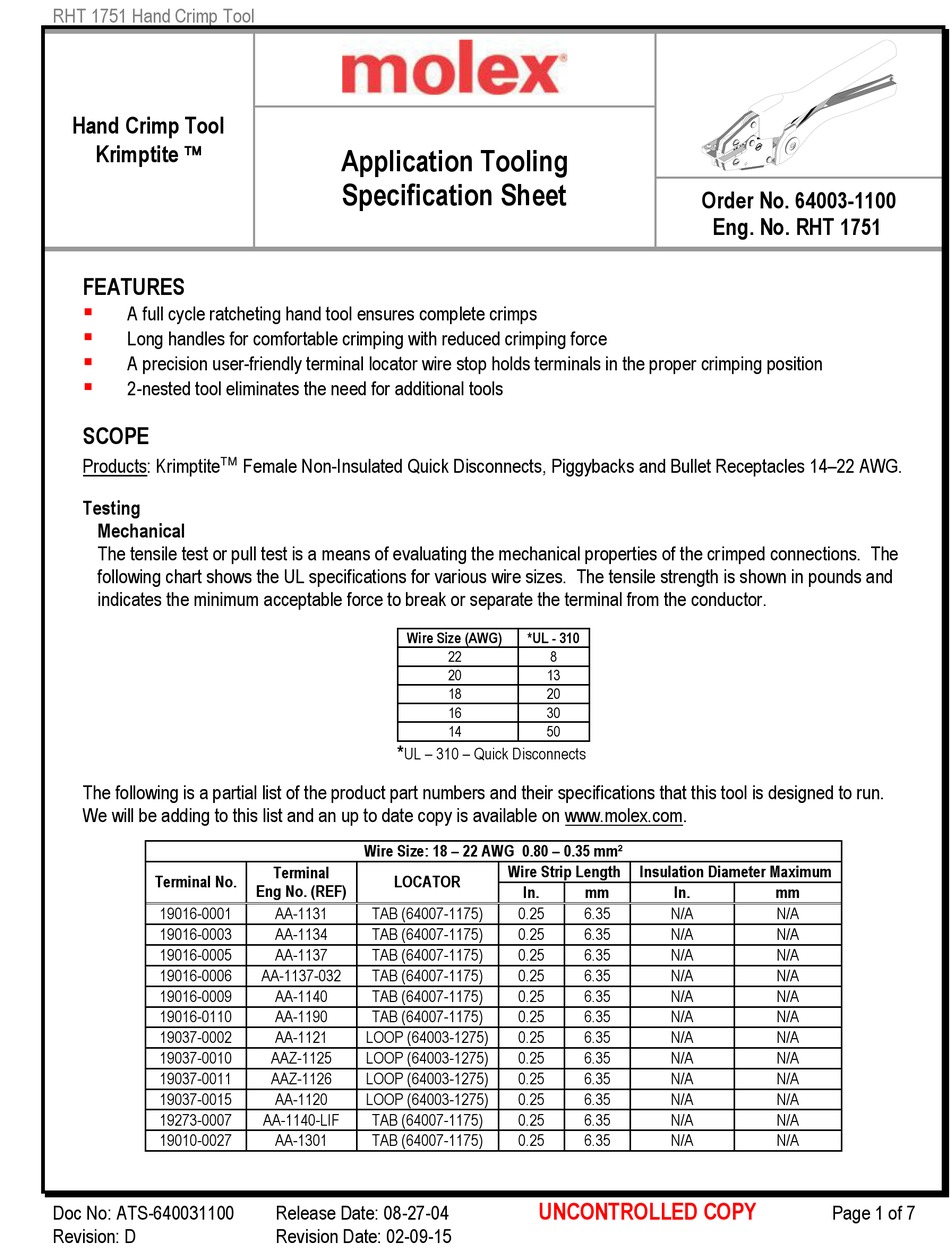

RHT 1751 Hand Crimp Tool
Hand Crimp Tool
Krimptite 
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Long handles for comfortable crimping with reduced crimping force
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
2-nested tool eliminates the need for additional tools
SCOPE
Products: Krimptite
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The
following chart shows the UL specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
19016-0001
19016-0003
19016-0005
19016-0006
19016-0009
19016-0110
19037-0002
19037-0010
19037-0011
19037-0015
19273-0007
19010-0027
Doc No: ATS-640031100
Revision: D
Application Tooling
Specification Sheet
Female Non-Insulated Quick Disconnects, Piggybacks and Bullet Receptacles 14–22 AWG.
Wire Size (AWG)
*
UL – 310 – Quick Disconnects
Wire Size: 18 – 22 AWG 0.80 – 0.35 mm²
Terminal
LOCATOR
Eng No. (REF)
AA-1131
TAB (64007-1175)
AA-1134
TAB (64007-1175)
AA-1137
TAB (64007-1175)
AA-1137-032
TAB (64007-1175)
AA-1140
TAB (64007-1175)
AA-1190
TAB (64007-1175)
AA-1121
LOOP (64003-1275)
AAZ-1125
LOOP (64003-1275)
AAZ-1126
LOOP (64003-1275)
AA-1120
LOOP (64003-1275)
AA-1140-LIF
TAB (64007-1175)
AA-1301
TAB (64007-1175)
Release Date: 08-27-04
Revision Date: 02-09-15
*UL - 310
22
8
20
13
18
20
16
30
14
50
Wire Strip Length
In.
mm
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
0.25
6.35
UNCONTROLLED COPY
Order No. 64003-1100
Eng. No. RHT 1751
Insulation Diameter Maximum
In.
mm
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Page 1 of 7
