molex 207129 Series Specification Sheet

Air powered crimp tool head
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

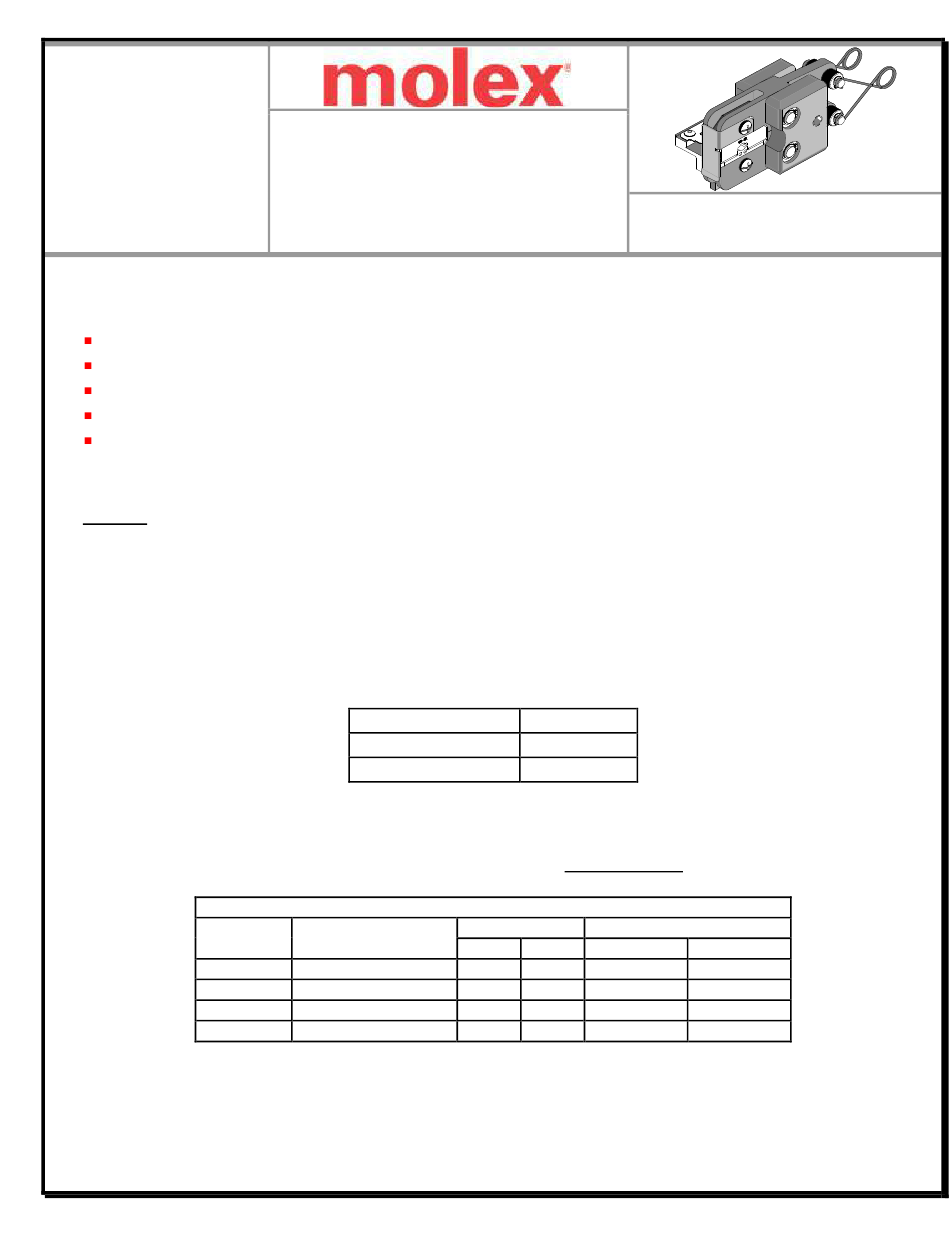

AT 4753 Air Crimp Tool Head
Air Powered
Crimp Tool Head
VibraKrimp   
FEATURES
Quick change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position.
Insulation crimp adjustment allows a precise insulation crimp.
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping.
SCOPE
Products: VibraKrimp™ Female Non-Insulated Quick Disconnects, 24-26 AWG. This tool head is intended for use
in the 19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following charts show the UL specifications for various wire sizes. The tensile strength is shown in
pounds and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No. Terminal Eng No. (REF)
19018-0044
19018-0045
19018-0019
19018-0020
Doc. No: ATS-640077100
Revision: A
Application Tooling
Specification Sheet
Wire Size (AWG)
24
26
*UL – 310 – Quick Disconnects
Wire Size: 24-26 AWG 0.20-0.12mm²
M-4172
M-4172-032
M-4179
M-4179-032
Release Date: 04-21-06
Revision Date: 04-21-06
*UL - 310
5
3
Wire Strip Length Insulation Diameter Maximum
In.
mm
In.
.172
4.37
.095
.172
4.37
.095
.172
4.37
.095
.172
4.37
.095
UNCONTROLLED COPY
Order No. 64007-7100
Engineering No. AT4753
mm
2.41
2.41
2.41
2.41
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 24-26 AWG 0.20-0.12mm²...

  • Page 2: Operation

    LOCATOR ANVIL ANVIL 4. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection Handbook for closed barrel industrial product. See our website or contact your sales engineer. 5. If the insulation part of the crimp needs to be adjusted, first disconnect the air source and loosen the M4 screw on the bottom tool jaw and insert a 3/32 hex wrench (supplied) into the bottom of the lower die.

  • Page 3: Maintenance

    Should such a defect occur, we would repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. CAUTION: Molex crimp specifications are valid only when used with Molex terminals, applicators and tooling. UNCONTROLLED COPY Doc.

  • Page 4: Parts List

    AT 4753 Air Crimp Tool Head PARTS LIST Item Order No Description Quantity 64007-7100 Crimp Tool Head Figure 5 64005-0000 Basic Air Tool Head 64003-1175 Locator Assembly 64003-7170 Tooling Kit Tooling Kit Only 64003-7102 Conductor Punch 64003-7101 Conductor Anvil 64003-7104 Insulation Punch 64003-7103 Insulation Anvil...
  • Page 5 AT 4753 Air Crimp Tool Head Parts List (Continued) Item Order No. Description Quantity 64005-0000 Basic Air Tool Head Figure 6 64005-0103 Nose Guard 64000-0077 Repair Kit (Springs, Rods Pivots ,Rings, and Washers) M4 by 12 Long Freedrive Pan Head Screw M4 by 25 Long Freedrive Pan Head Screw 3/16”...

  • Page 6: Certificate Of Calibration

    Technician _______________________- Date of Calibration __________________- Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc. No: ATS-640077100 Release Date: 04-21-06 Page 6 of 6...
